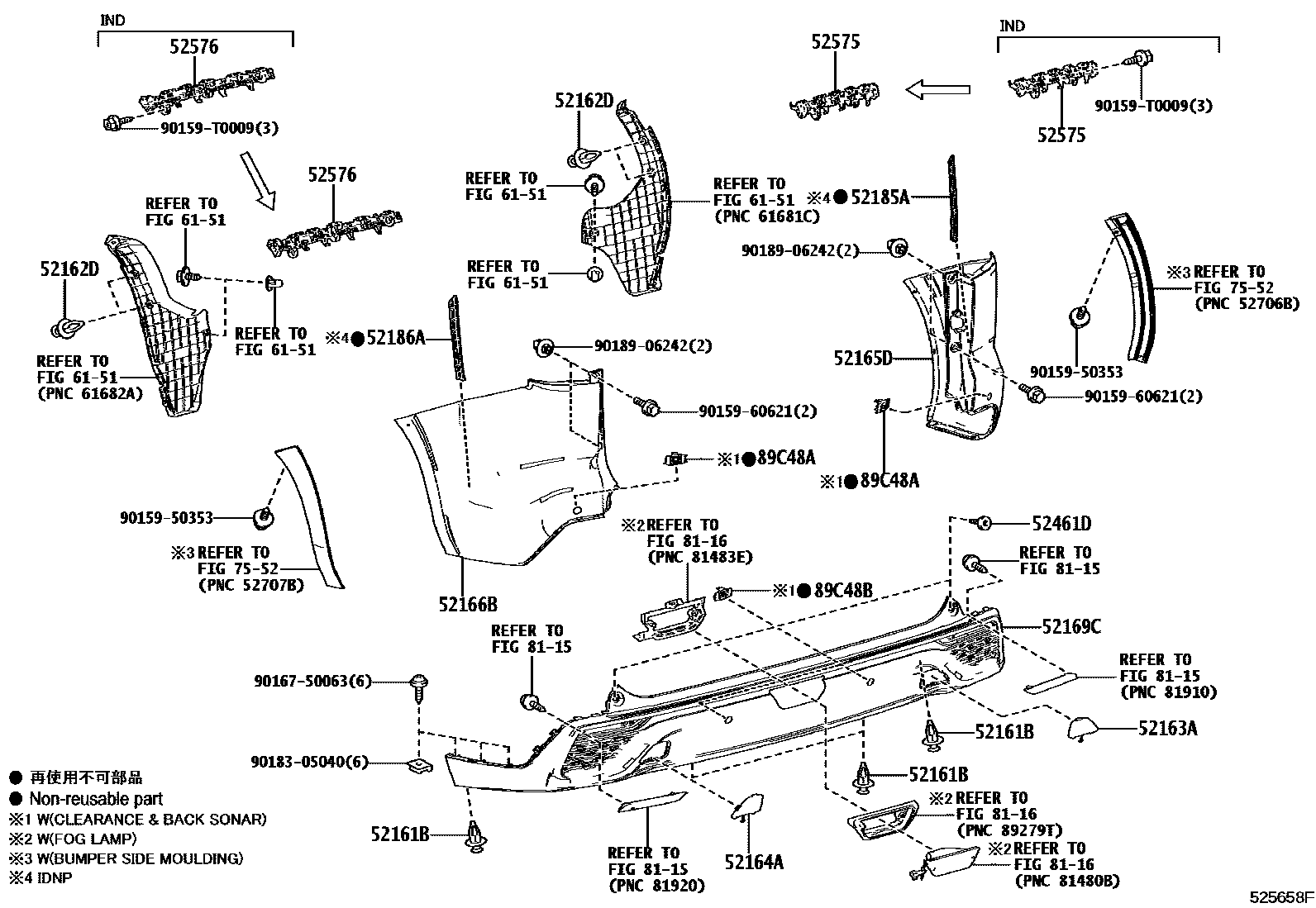

REAR BUMPER & BUMPER STAY

52161BPIECE, REAR BUMPER

main52161-0K040202211

52162DPIECE, REAR BUMPER

main52161-0K040202211

52163APLATE, REAR BUMPER, RH

main52163-VT030202212

main52163-VT040202211

52164APLATE, REAR BUMPER, LH

main52164-VT030202212

main52164-VT040202211

52165DEXTENSION, REAR BUMPER CORNER, RH

main52165-VT900202212

main52165-VT901202212

main52165-VT902202212

main52165-VT903202211

main52165-VT904202211

main52165-VT905202211

main52165-VT906202211

52166BEXTENSION, REAR BUMPER CORNER, LH

main52166-VT900202212

main52166-VT901202212

main52166-VT902202212

main52166-VT903202211

main52166-VT904202211

main52166-VT905202211

main52166-VT906202211

52169CCOVER, REAR BUMPER, LOWER

main52169-VT010202212

main52169-VT030202212

main52169-VT040202211

main52169-VT050202211

main52169-VT060202211

main52169-VT070202211

52185ABRACKET, REAR BUMPER SIDE, RH

main52185-VT020202211-202311

52186ABRACKET, REAR BUMPER SIDE, LH

main52186-VT020202211-202311

52461DCUSHION, REAR BUMPER

main52461-52020202211

52575RETAINER, REAR BUMPER SIDE, RH

main52575-VT010202212

main52575-VT020202211

52576RETAINER, REAR BUMPER SIDE, LH

main52576-VT010202212

main52576-VT020202211

6151SIDE MEMBER

→ Go to FIG 61-51

7552MOULDING

→ Go to FIG 75-52

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8116REAR FOG LAMP

→ Go to FIG 81-16

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-VT070-A0202211

main89348-VT070-A1202211

main89348-VT070-B0202211

main89348-VT070-B1202211

main89348-VT070-B2202211-202508

main89348-VT070-C0202211

main89348-VT070-C1202212-202503

main89348-VT070-C2202212

main89348-VT070-E0202211-202508

main89348-VT070-E1202211-202508

main89348-VT080-A0202211

main89348-VT080-A1202211

main89348-VT080-B0202211

main89348-VT080-B1202211

main89348-VT080-B2202211-202508

main89348-VT080-C0202211

main89348-VT080-C1202212-202503

main89348-VT080-C2202212

main89348-VT080-E0202211-202508

main89348-VT080-E1202211-202508

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-VT060-C0202211

9015950353

main90159-50353

9015960621

main90159-60621

90159T0009

main90159-T0009

9016750063

main90167-50063

9018305040

main90183-05040

9018906242

main90189-06242

24 parts on this diagram · 1 diagram in section
