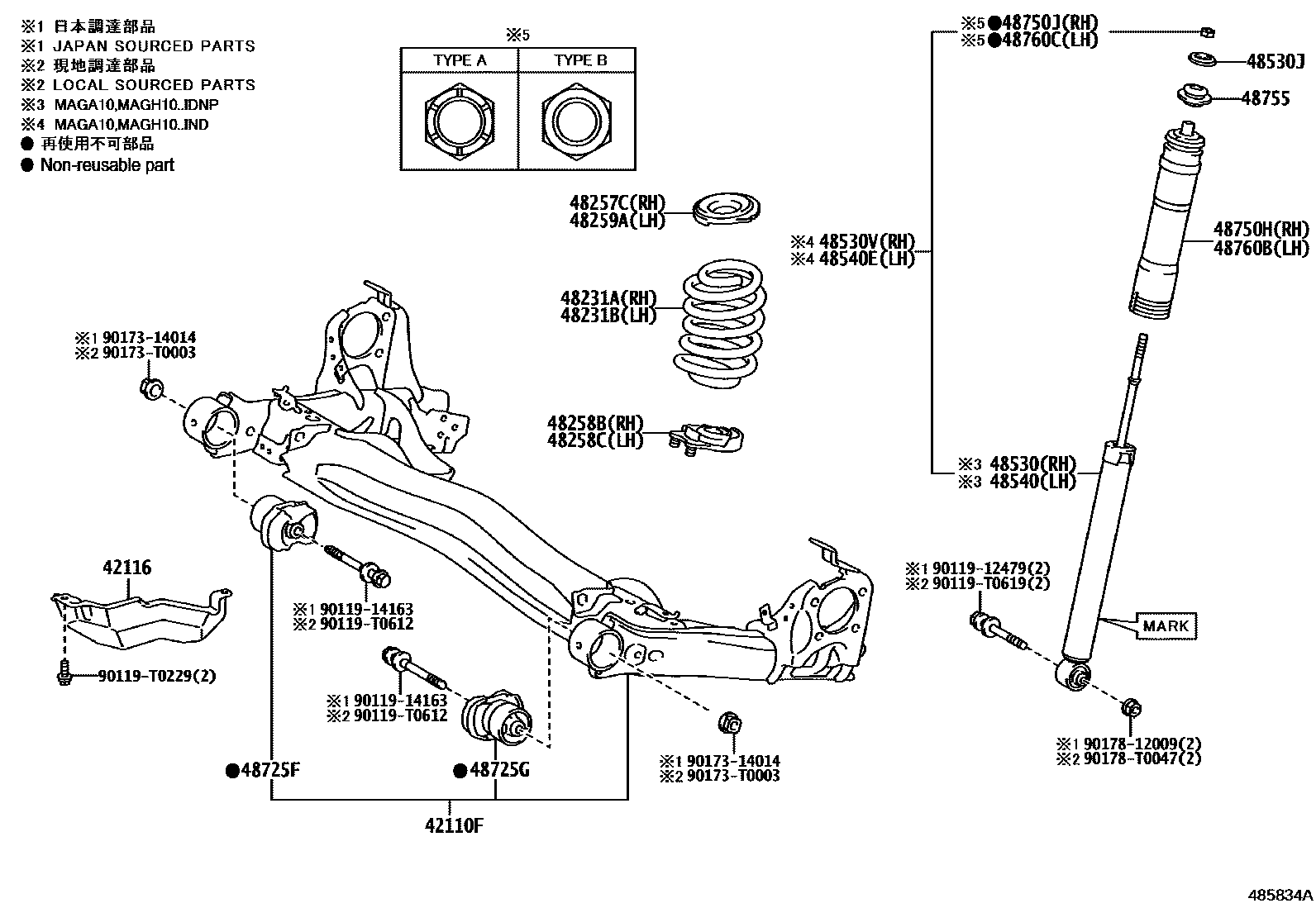

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-VT010202212

main42110-VT020202211

42116COVER, REAR AXLE BEAM

main42116-VT010202212

main42116-VT020202211

48231ASPRING, COIL, REAR RH

main48231-VT010202212

main48231-VT020202212

main48231-VT030202211

main48231-VT040202211

48231BSPRING, COIL, REAR LH

main48231-VT010202212

main48231-VT020202212

main48231-VT030202211

main48231-VT040202211

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-VT010202212

main48257-VT020202211

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-VT010202212

main48258-VT020202211

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-VT010202212

main48258-VT020202211

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-VT010202212

main48257-VT020202211

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-VT030202211

main48530-VT040202211

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-02192202211

48530VABSORBER SET, SHOCK, REAR RH

main48530-8Z209202212

main48530-8Z210202212

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-VT030202211

main48530-VT040202211

48540EABSORBER SET, SHOCK, REAR LH

main48530-8Z209202212

main48530-8Z210202212

48725FBUSH, REAR AXLE CARRIER, RH

main48725-VT010202211

48725GBUSH, REAR AXLE CARRIER, LH

main48725-VT010202211

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-VT010202212

main48750-VT020202211

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-12002202211

main94130-61200202211

48755SUPPORT, REAR SUSPENSION

main48755-VT010202212

main48755-VT020202211

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-VT010202212

main48750-VT020202211

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-12002202211

main94130-61200202211

9011912479

main90119-12479

9011914163

main90119-14163

90119T0229

main90119-T0229

90119T0612

main90119-T0612

90119T0619

main90119-T0619

9017314014

main90173-14014

90173T0003

main90173-T0003

9017812009

main90178-12009

90178T0047

main90178-T0047

29 parts on this diagram · 1 diagram in section
