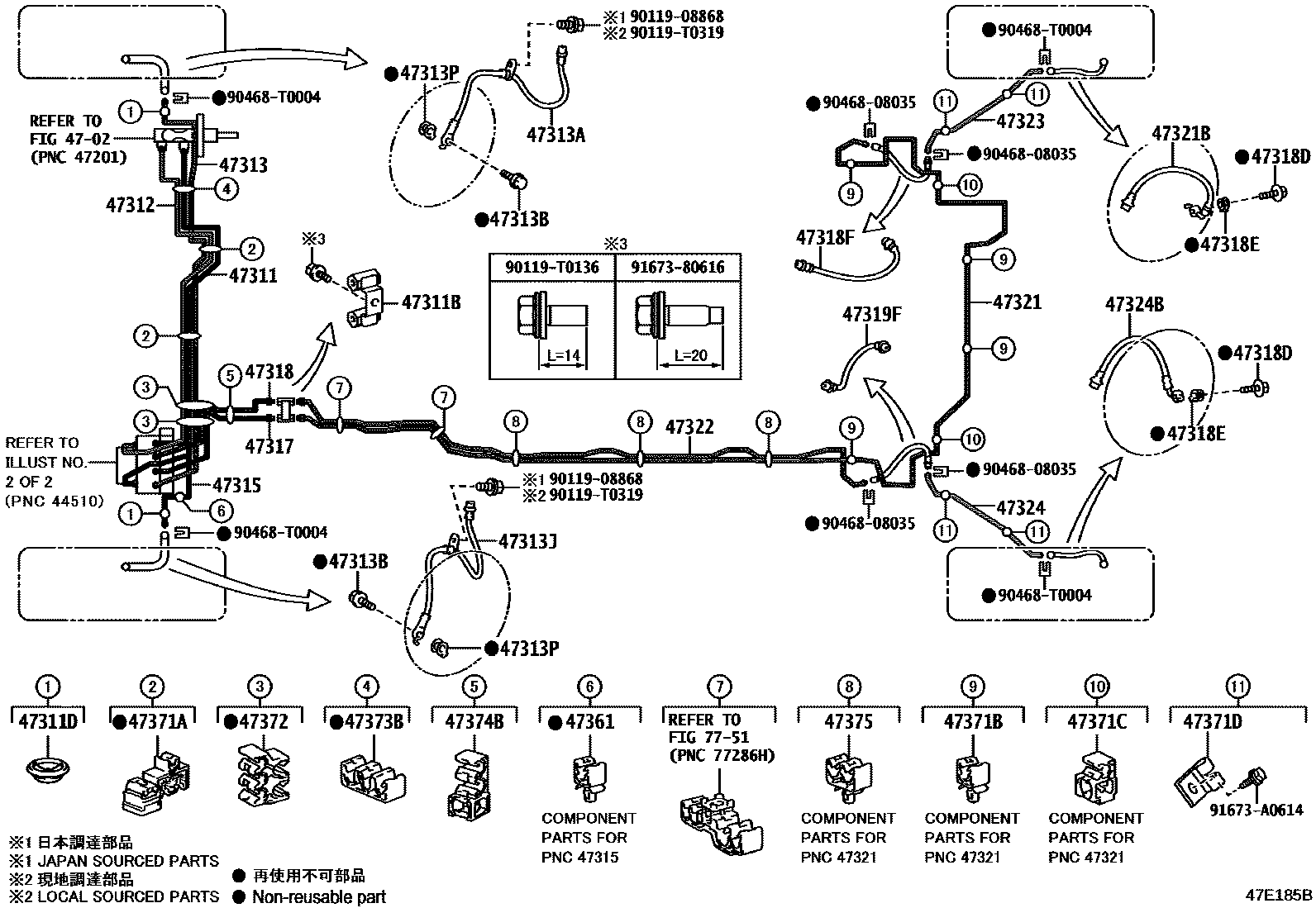

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47311DGROMMET(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47324BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
47361CLAMP, TUBE
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
7751FUEL TANK & TUBE
9011908868
main90119-08868
90119T0136
main90119-T0136
90119T0319
main90119-T0319
9046808035
main90468-08035
90468T0004
main90468-T0004
9167380616
main91673-80616
91673A0614
main91673-A0614
40 parts on this diagram · 10 diagrams in section
