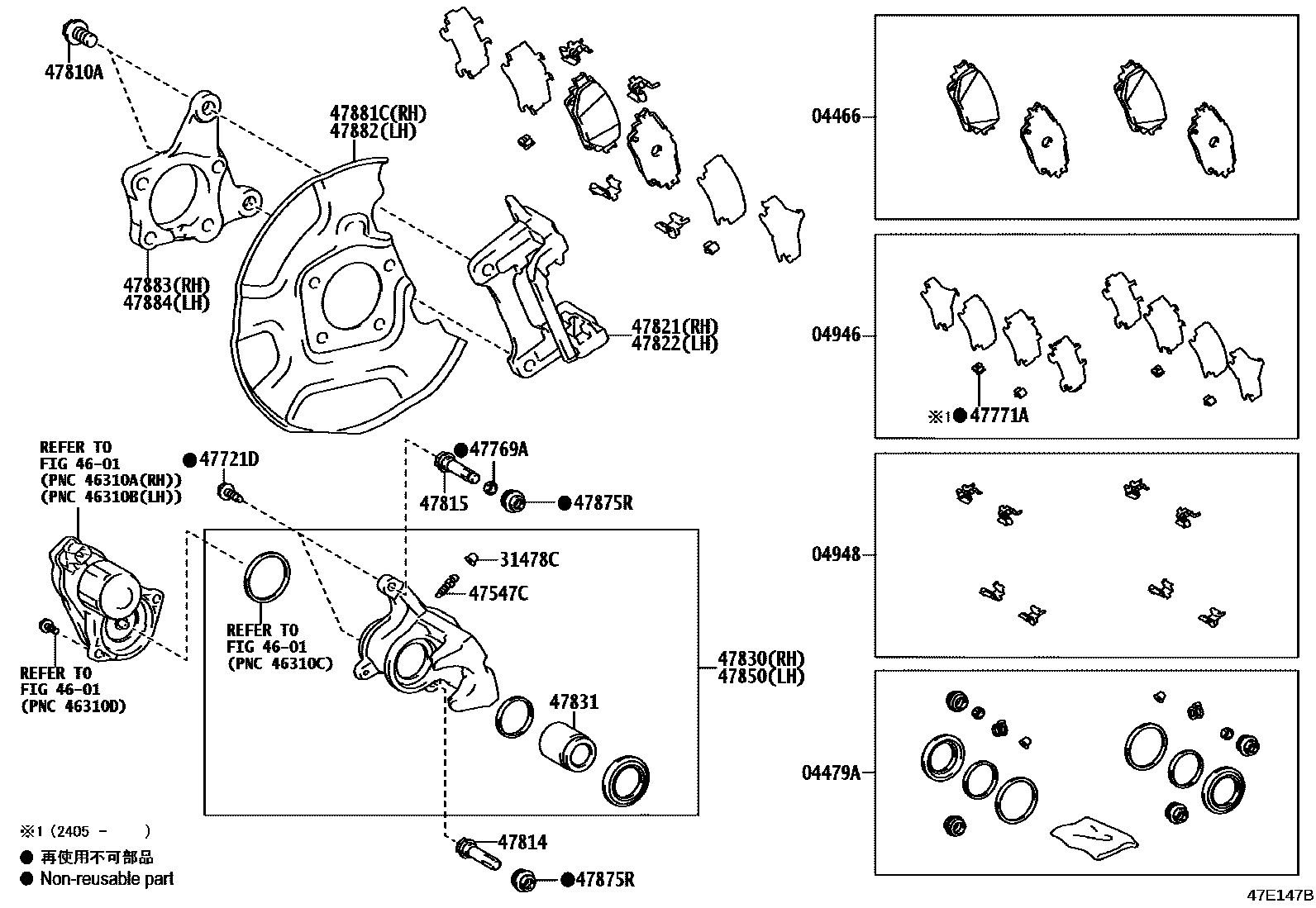

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-28160iMAGA10,MAGH10202211

MARK ADVICS VC123

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-28210iMAGA10,MAGH10202211

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-28040iMAGA10,MAGH10202211

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iMAGA10,MAGH10202211

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iMAGA10,MAGH10202211

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iMAGA10,MAGH10202211

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603×4iMAGA10,MAGH10202211

*8-1.00PX23-12.5

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010×2iMAGA10,MAGH10202211

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47871-78010×4iMAGA10,MAGH10..IND202405

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-T0420×4iMAGA10,MAGH10202211

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010×2iMAGA10,MAGH10202211

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010×2iMAGA10,MAGH10202211

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-28100iMAGA10,MAGH10202211

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-28100iMAGA10,MAGH10202211

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-28100iMAGA10,MAGH10202211

47831PISTON, REAR DISC BRAKE

main47831-28100×2iMAGA10,MAGH10202211

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-28100iMAGA10,MAGH10202211

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270×4iMAGA10,MAGH10202211

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-VT010iMAGA10,MAGH10..IDNP202211

main47881-VT020iMAGA10,MAGH10..IND202212

47882COVER, DISC BRAKE DUST, REAR LH

main47882-VT010iMAGA10,MAGH10..IDNP202211

main47882-VT020iMAGA10,MAGH10..IND202212

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-VT010iMAGA10,MAGH10..IDNP202211

main47883-VT020iMAGA10,MAGH10..IND202212

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-VT010iMAGA10,MAGH10..IDNP202211

main47884-VT020iMAGA10,MAGH10..IND202212

23 parts on this diagram · 1 diagram in section
