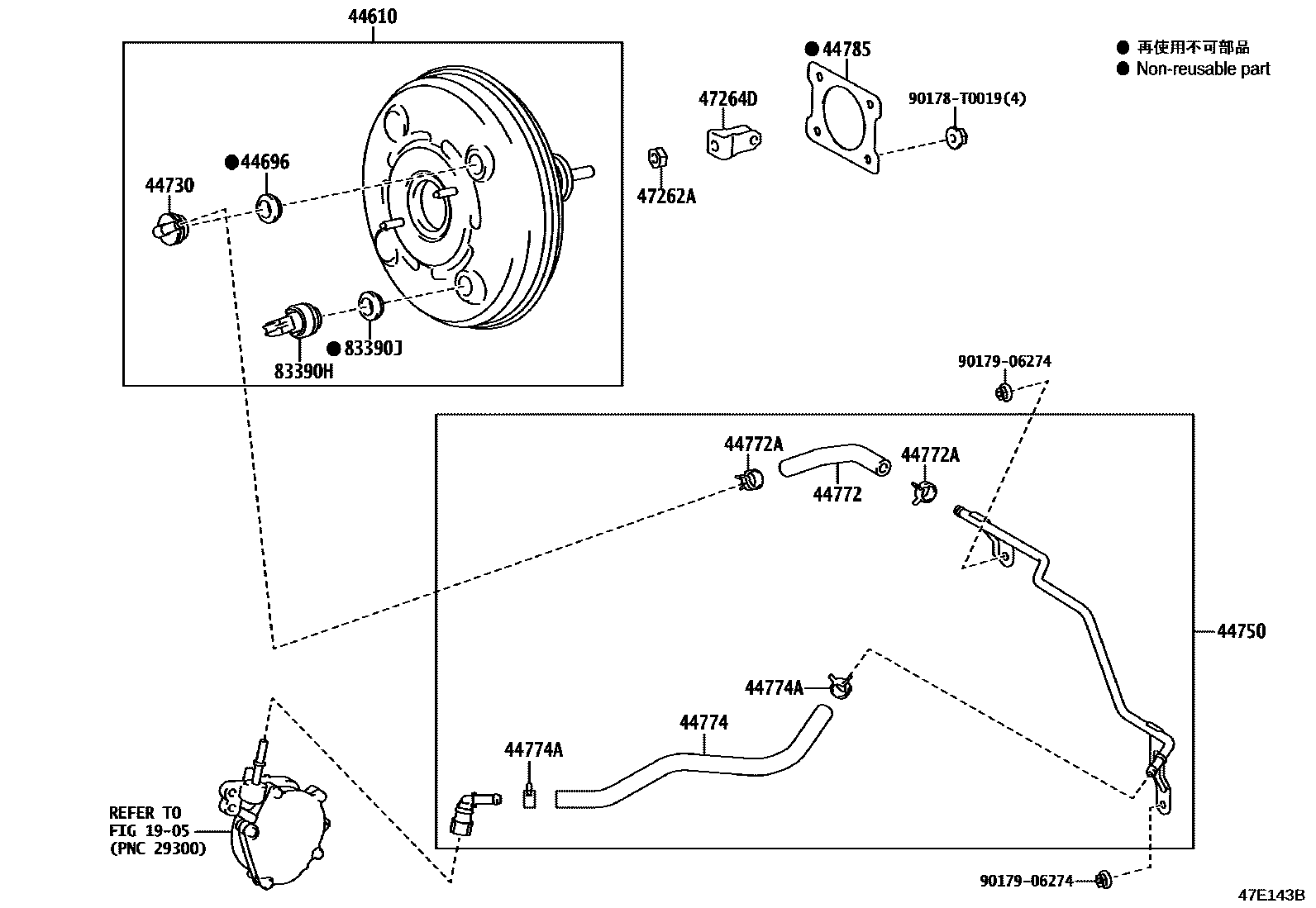

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1905

44610BOOSTER ASSY, BRAKE

main44610-VT010iMAGA10..IDNP202211

main44610-VT030iMAGA10..IND202212

44696GROMMET, CHECK VALVE

main90016-AT003iMAGA10..IDNP202211

main90480-24439iMAGA10..IND202212

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMAGA10..IDNP202211

44750HOSE ASSY, VACUUM

main44750-VT010iMAGA10..RHD..IDNP202211

main44750-VT020iMAGA10..LHD202211

main44750-VT030iMAGA10..IND202212

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-VT010iMAGA10..RHD..IDNP202211

main44772-VT020iMAGA10..IND202212

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-T0054iMAGA10..IND202212

main90467-16014iMAGA10..RHD..IDNP202211

44774HOSE, UNION TO CONNECTOR TUBE

main44774-VT010iMAGA10..RHD..IDNP202211

main44774-VT030iMAGA10..IND202212

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0054iMAGA10..IND202212

main90467-16014iMAGA10..RHD..IDNP202211

44785GASKET, BRAKE BOOSTER

main44785-0D040iMAGA10..IND202405

#,(L)

main44785-12040iMAGA10..IND202211-202405

#,(J)

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main90016-AC104iMAGA10..IDNP202211

(L)

main90016-AC105iMAGA10..IND202212

main94120-41000iMAGA10..IDNP202211

(J)

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iMAGA10202211

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMAGA10202211

83390JGROMMET, VACUUM WARNING SWITCH

main90016-AT003iMAGA10..IDNP202211

main90480-24439iMAGA10..IND202212

90178T0019

main90178-T0019

9017906274

main90179-06274

16 parts on this diagram · 3 diagrams in section
