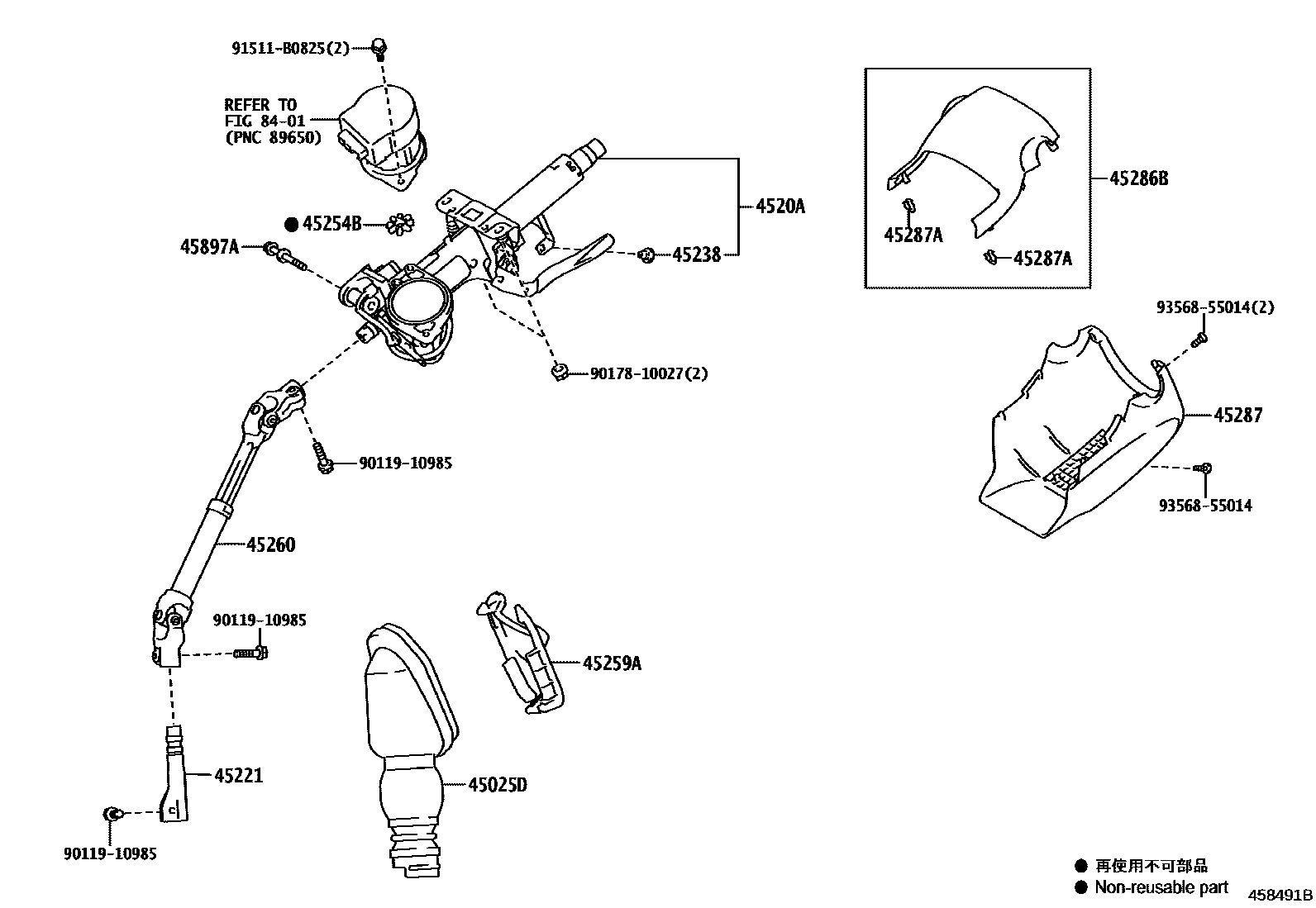

Toyota 614210 — STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
45286BCOVER, STEERING COLUMN, UPR
45287ACLIP(FOR STEERING COLUMN COVER)
45897ABOLT, TILT STEERING PAWL SET
8401SWITCH & RELAY & COMPUTER
9011910985
9017810027
91511B0825
9356855014
16 parts on this diagram · 2 diagrams in section
STEERING COLUMN & SHAFT for Toyota 614210
This section contains 16 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota 614210. Key components include: COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1, COLUMN SUB-ASSY, ELECTRIC POWER STEERING, SHAFT, STEERING INTERMEDIATE, CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING), DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT.
