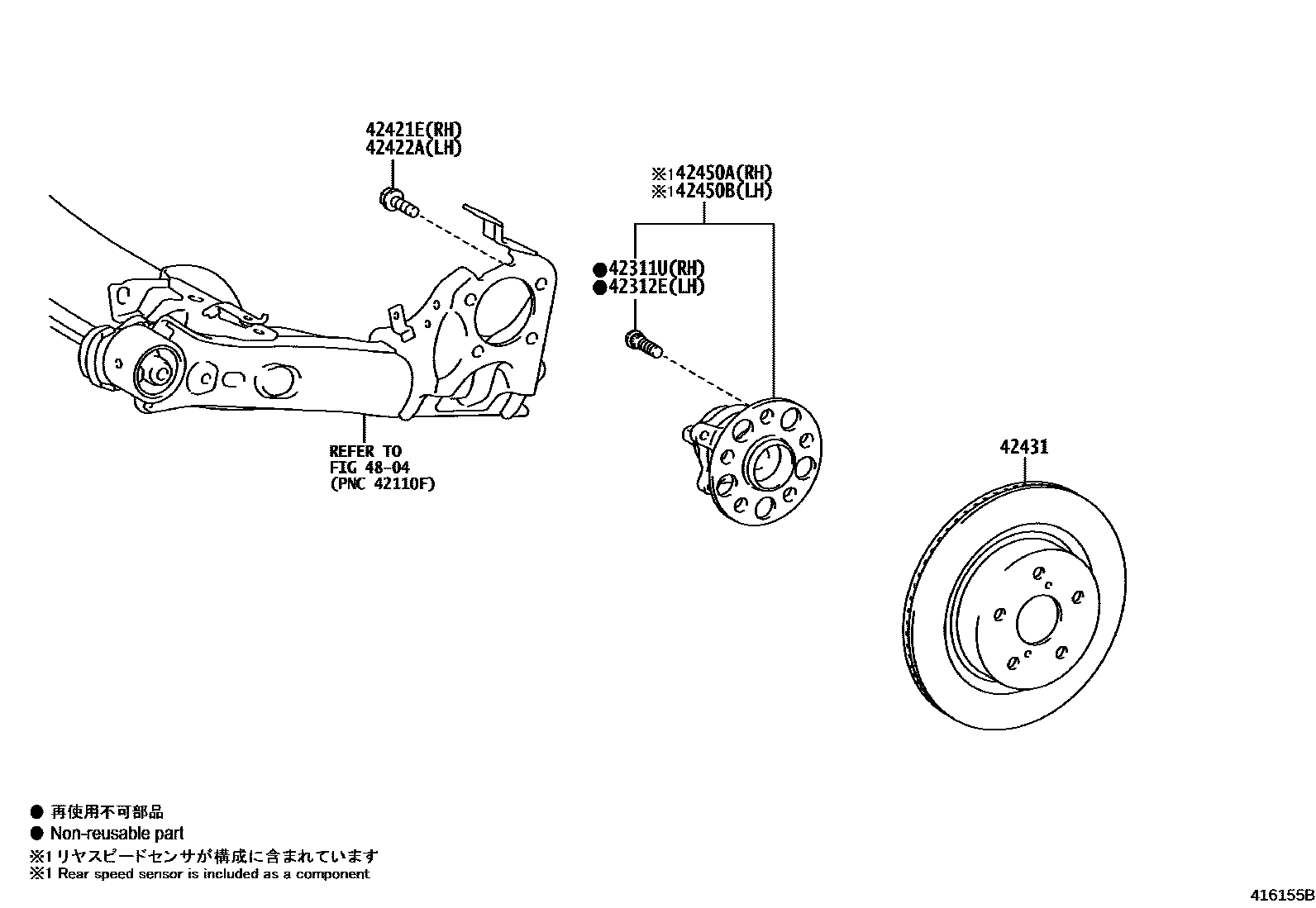

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02081×5iMAGA10,MAGH10202211

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02081×5iMAGA10,MAGH10202211

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90119-12480×4iMAGA10,MAGH10202211

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90119-12480×4iMAGA10,MAGH10202211

42431DISC, REAR

main42431-VT010×2iMAGA10,MAGH10..IDNP202211

main42431-VT020×2iMAGA10,MAGH10..IND202212

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-VT010iMAGA10,MAGH10..IND202212

main42450-VT020iMAGA10,MAGH10..IDNP202211

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-VT010iMAGA10,MAGH10..IND202212

main42450-VT020iMAGA10,MAGH10..IDNP202211

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 1 diagram in section
