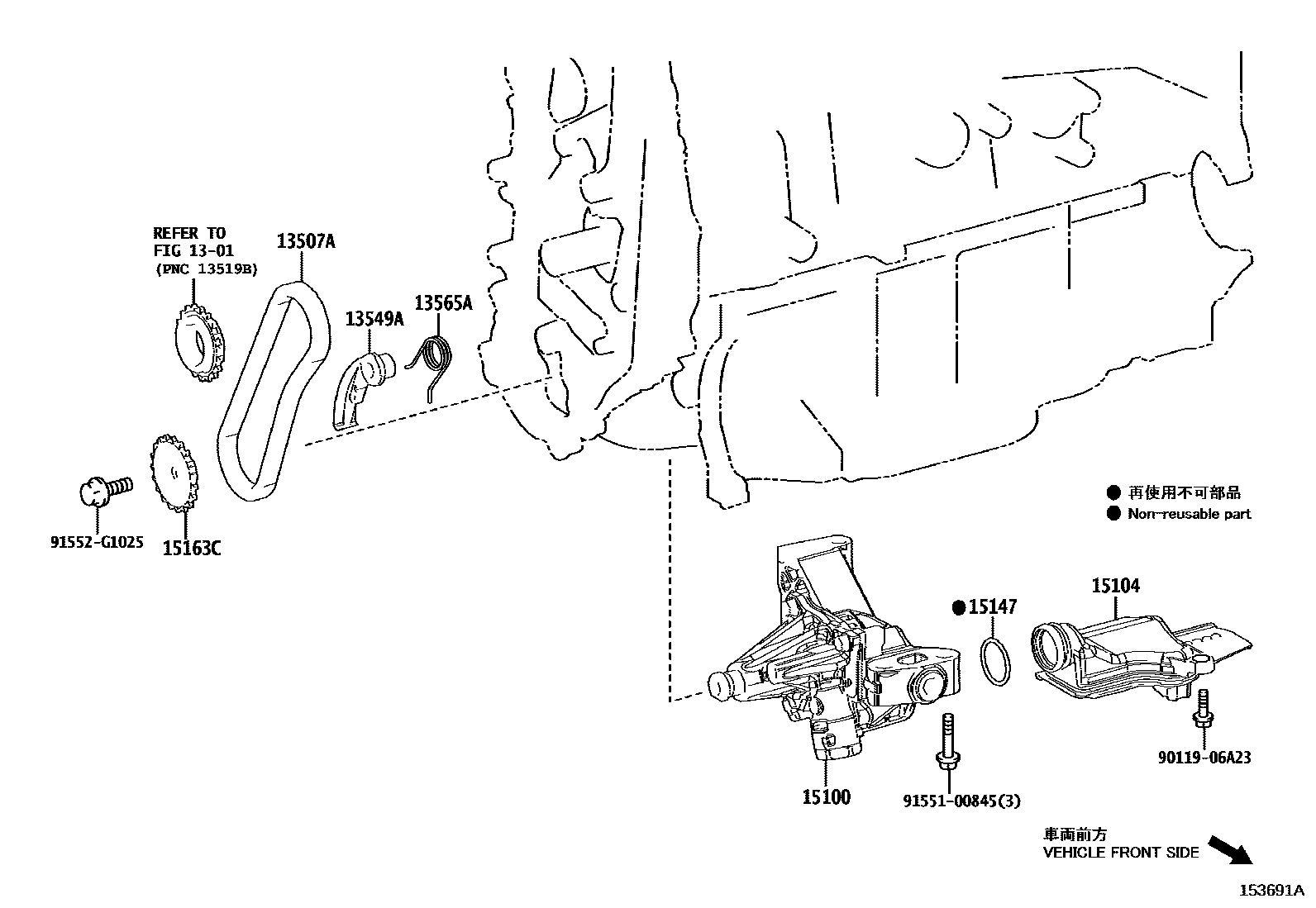

ENGINE OIL PUMP

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020iM20#..MAGA10,MAGH10202211

(J)

main13507-F2040iM20#..MAGA10,MAGH10202211

(L)

13549APLATE, CHAIN TENSIONER

main13549-25020iM20#..MAGA10,MAGH10202211

(J)

main13549-F2040iM20#..MAGA10,MAGH10202211

(L)

13565ASPRING, CHAIN DAMPER

main13565-25010iM20#..MAGA10,MAGH10202211

(J)

main13565-F2040iM20#..MAGA10,MAGH10202211

(L)

15100PUMP ASSY, OIL

main15100-F2050iM20#..MAGA10,MAGH10202211

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20#..MAGA10,MAGH10202211

(J)

main15104-F2060iM20#..MAGA10,MAGH10202211

(L)

15147GASKET, OIL STRAINER

main15147-25010iM20#..MAGA10,MAGH10202211

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20#..MAGA10,MAGH10202211

(J)

main15163-F2030iM20#..MAGA10,MAGH10202211

(L)

9011906A23

main90119-06A23

9155100845

main91551-00845

91552G1025

main91552-G1025

11 parts on this diagram · 1 diagram in section
