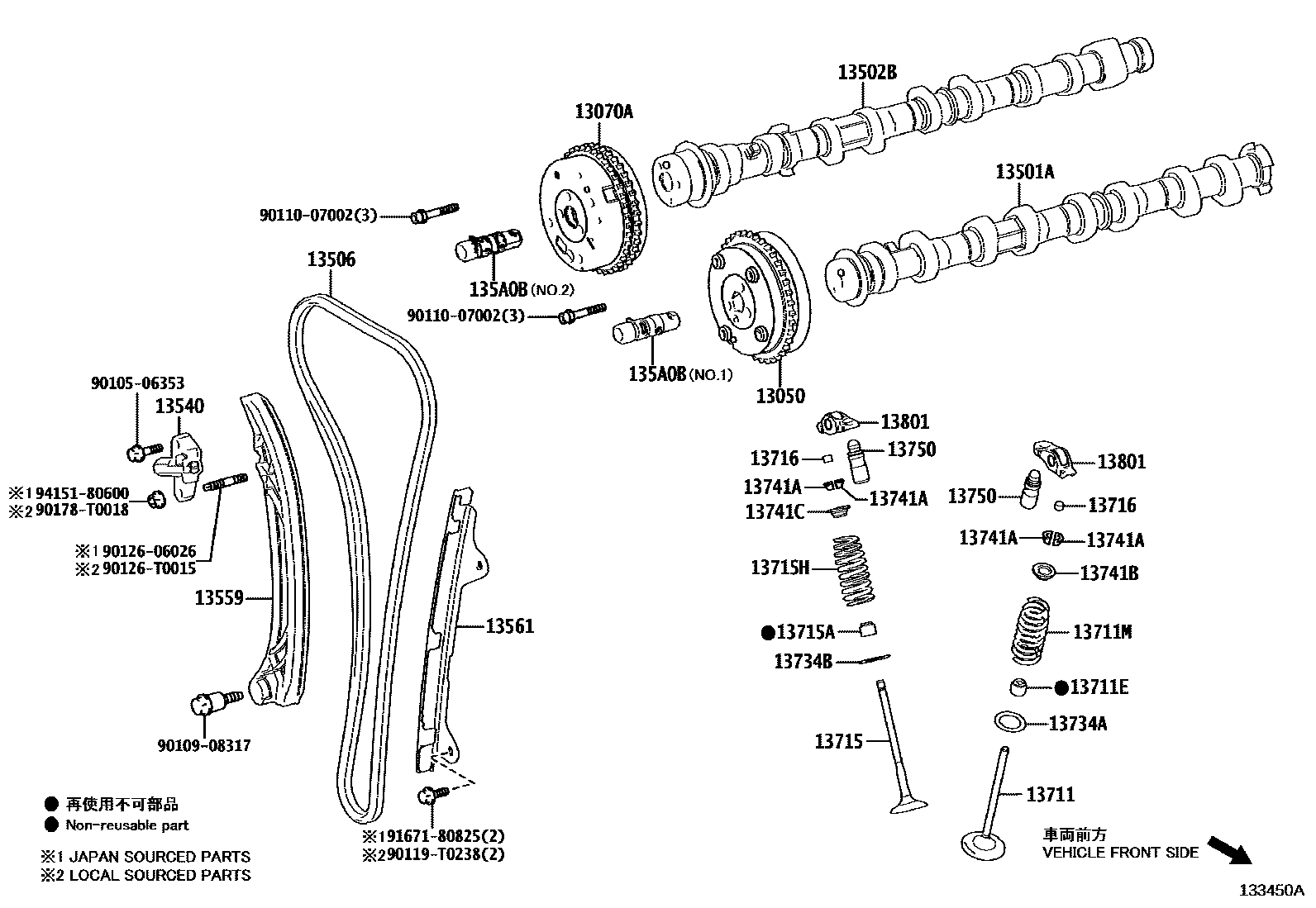

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13501ACAMSHAFT SUB-ASSY, INTAKE
13502BCAMSHAFT SUB-ASSY, EXHAUST
13506CHAIN SUB-ASSY
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
135A0BVALVE ASSY, CAMSHAFT TIMING
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
(J)
(L)
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
(J)
(L)
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
13734ASEAT, INTAKE VALVE SPRING
13734BSEAT, EXHAUST VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010506353
main90105-06353
9010908317
main90109-08317
9011007002
main90110-07002
90119T0238
main90119-T0238
9012606026
main90126-06026
90126T0015
main90126-T0015
90178T0018
main90178-T0018
9167180825
main91671-80825
9415180600
main94151-80600
32 parts on this diagram · 1 diagram in section
