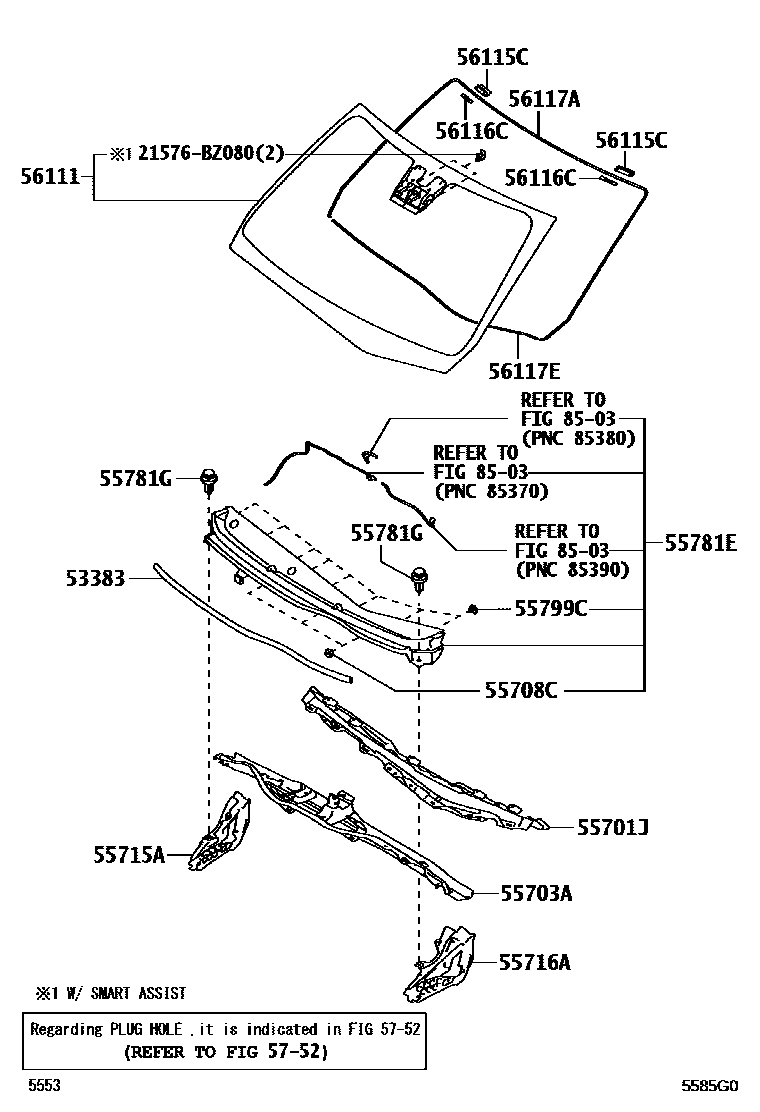

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-BZ140iW100,101202111

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-BZ250iW100,101..RHD202111

main55701-BZ260iW100,101..LHD202201

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ750iW100,101..RHD202111

main55703-BZ760iW100,101..LHD202201

55708CCLIP, COWL TOP VENTILATOR LOUVER

main9004A-46338×3iW100,101202111

55715ABRACE, COWL TOP TO APRON, RH

main55715-BZ070iW100,101202111

55716ABRACE, COWL TOP TO APRON, LH

main55716-BZ080iW100,101202111

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-BZ170iW100,101..RHD202111

main55708-BZ180iW100,101..LHD202201

55781GCLIP, COWL TOP VENTILATOR LOUVER

main9004A-46323×2iW100,101202111

55799CCLIP, COWL TOP VENTILATOR LOUVER

main67771-B2100×8iW100,101202111

56111GLASS, WINDSHIELD

main56101-BZ210iW100..IDN202111

main56101-BZ220iW101..V..THAI202201

main56101-BZ230iW101..V..IDN;W101..RHD..(M,S)202111

main56101-BZ240iW100..LHD202201

main56101-BZ250iW101..LHD..(GCC,GEN,MXC,PHL)202201

main56101-BZ870iW101..(M,S)..VN202212

main56101-BZA20iW101..V..VN202212

main56101-BZ280iW101..V..PHL202201

SMART ASSIST (OVERSEAS)

56115CSTOPPER, WINDSHIELD GLASS

main56115-97402×2iW100,101202111

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2iW100,101202111

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0D902iW101..VN202212

main56117-BZ250iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

*D,L=2757

56117EDAM, WINDOW GLASS ADHESIVE

main56117-0D902iW101..VN202212

main56117-BZ260iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

*D,L=1275

5752HOLE PLUG

→ Go to FIG 57-52

8503WINDSHIELD WASHER

→ Go to FIG 85-03

21576BZ080CLIP, PUMP STRAINER

main21576-BZ080

17 parts on this diagram · 1 diagram in section
