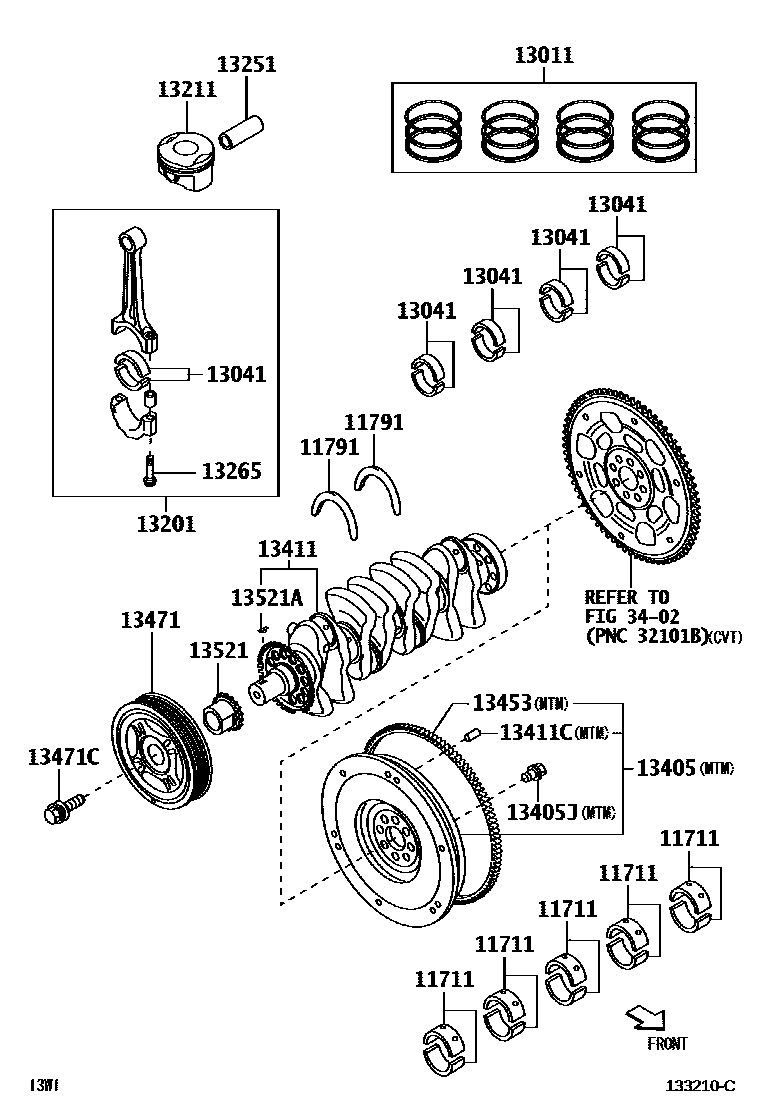

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-0Y030-02×5i1NRVE,2NRVE..W100,101202111

MARK2

main11701-0Y030-03×5i1NRVE,2NRVE..W100,101202111

MARK3

main11701-0Y030-04×5i1NRVE,2NRVE..W100,101202111

MARK4

main11701-0Y030-05×5i1NRVE,2NRVE..W100,101202111

MARK5

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B0010×2i1NRVE,2NRVE..W100,101202111

STD

13011RING SET, PISTON

main13011-0Y030i1NRVE,2NRVE..W100,101202111

STD

13041BEARING, CONNECTING ROD

main13041-0Y040-01×4i1NRVE,2NRVE..W100,101202111

MARK1

main13041-0Y040-02×4i1NRVE,2NRVE..W100,101202111

MARK2

main13041-0Y040-03×4i1NRVE,2NRVE..W100,101202111

MARK3

13201ROD SUB-ASSY, CONNECTING

main13201-B9090×4i1NRVE..W100202111

main13201-B9095×4i2NRVE..W101202111

13211PISTON

main13211-0Y011×4i1NRVE..W100..IDN202111

main13211-0Y061×4i2NRVE..W101..5F..(MXC,VN);2NRVE..W101..GCC,GEN,PHL,THAI; 2NRVE..W101..M..IDN;2NRVE..W101..CVT..(MXC,VN)202111

13251PIN, PISTON

main13251-0Y030×4i2NRVE..W101..(S,V)..IDN202111-202306

13265BOLT, CONNECTING ROD

main13265-0Y020×8i2NRVE..W101..5F..(MXC,VN);1NRVE,2NRVE..W100,101..GCC,GEN,PHL,THAI; 2NRVE..W101..CVT..(MXC,VN);1NRVE,2NRVE..W100,101..(D,M)..IDN202111

13405FLYWHEEL SUB-ASSY

main13405-BZ150i1NRVE,2NRVE..W100,101..5F202111

13405JBOLT(FOR FLYWHEEL)

main9004A-10200×8i1NRVE,2NRVE..W100,101..5F..(D,M)..IDN202111

SAME 90913-01029

main90913-01029×8i1NRVE..W100..5F..(IDN,PHL); 2NRVE..W101..5F;1NRVE..W100..GEN202111

SAME 9004A-10200

13411CRANKSHAFT

main13401-0Y140i2NRVE..W101..IDN;2NRVE..W101..CVT..PHL202111

SAME 13401-BZ100

main13401-0Y180i1NRVE..W100..5F; 1NRVE..W100..CVT202111

SAME 13401-BZ040

main13401-BZ040i1NRVE..W100..IDN202111

SAME 13401-0Y180

main13401-BZ100i2NRVE..W101..M..IDN202111

SAME 13401-0Y140

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main9004A-25035×3i1NRVE,2NRVE..W100,101..5F202111

13453GEAR, FLYWHEEL RING

main13453-87Z03i1NRVE..W100..5F;2NRVE..W101..5F..(GEN,IDN,MXC,VN)202111

13471PULLEY, CRANKSHAFT

main13470-0Y020i1NRVE,2NRVE..W100,101202111

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-T0444i1NRVE,2NRVE..W100,101202111

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0Y040i1NRVE,2NRVE..W100,101202111

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04001i1NRVE,2NRVE..W100,101..(D,M)..IDN202111

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

18 parts on this diagram · 1 diagram in section
