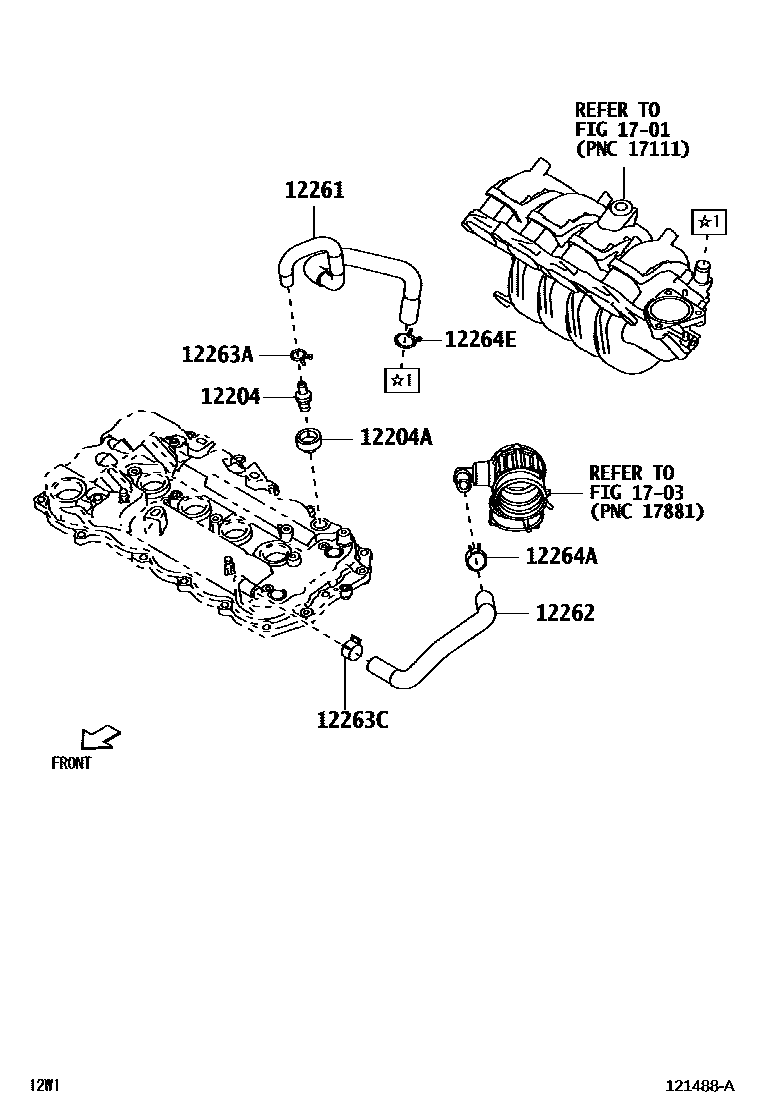

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-0Y020i1NRVE,2NRVE..W100,101202111

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-T0013i1NRVE,2NRVE..W100,101202111

12261HOSE, VENTILATION

main12261-BZ210i1NRVE,2NRVE..W100,101202111

12262HOSE, VENTILATION, NO.2

main12262-BZ190i1NRVE,2NRVE..W100,101202111

12263ACLIP(FOR VENTILATION HOSE)

main90466-T0061i1NRVE,2NRVE..W100,101202111

12263CCLIP(FOR VENTILATION HOSE)

main90466-T0020i1NRVE,2NRVE..W100,101202111

12264ACLIP(FOR VENTILATION HOSE)

main90466-T0020i1NRVE,2NRVE..W100,101202111

12264ECLIP(FOR VENTILATION HOSE)

main90466-T0062i1NRVE,2NRVE..W100,101202111

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

10 parts on this diagram · 1 diagram in section
