WIRING & CLAMP

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR & ROOF 0010 1FLOOR 0011 1FLOOR 0012 1FUEL 0013 1CABLE BOND 0014 1CABLE BOND 0016 1CLAMP & BRACKET 0017 1CLAMP & BRACKET

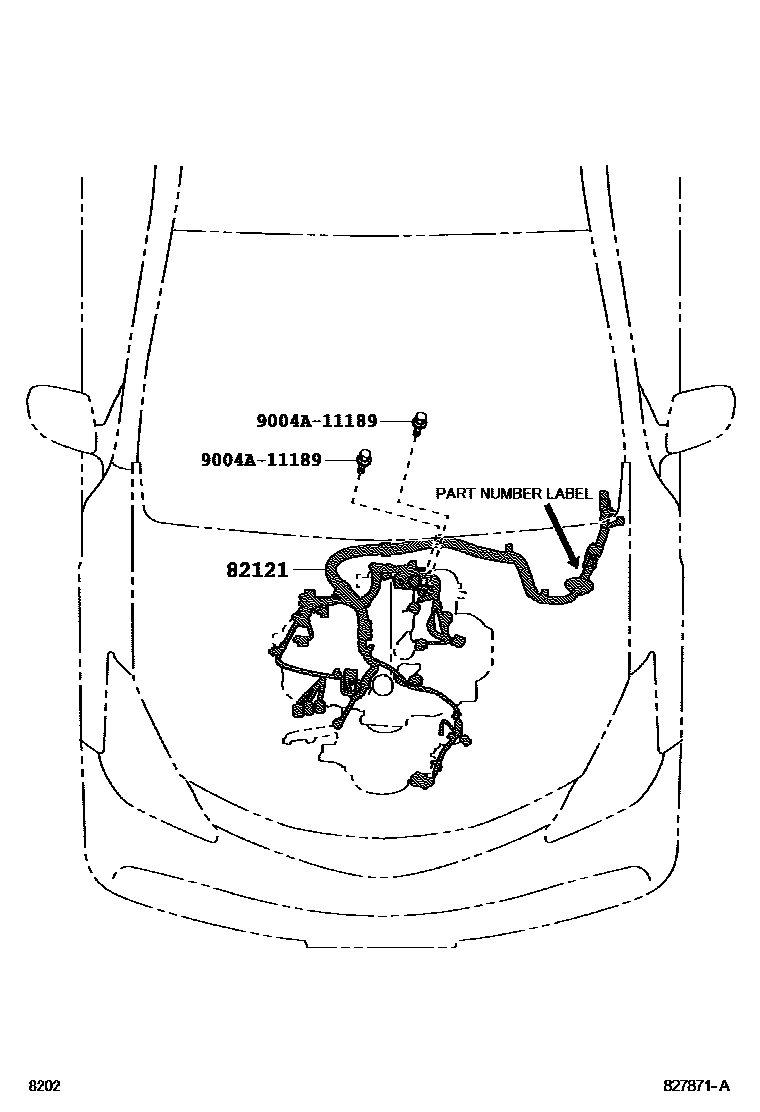

82121WIRE, ENGINE

main82121-BZ600iF652..GEN,PHL201112-201508

main82121-BZ610iF652..MXC201112-201508

main82121-BZ620iF651..LHD201112-201508

main82121-BZ640iF652..IDN201111-201507

main82121-BZ660iF652..TH201111-201508

main82121-BZ700iF651..IDN201111-201507

main82121-BZB30iF652..GCC201404-201508

main82121-BZB50iF653,654..4AT..PHL201507-201512

W/PART NUMBER LABEL

main82121-BZB51iF654..4AT..GCC201607-201801

W/PART NUMBER LABEL

main82121-BZB60iF654..4AT..(MXC,TH)201508-201606

W/PART NUMBER LABEL

main82121-BZB61iF65#..4AT..(MXC,PHL,TH)201607-201904

W/PART NUMBER LABEL

main82121-BZB70iF653,654..5F..(GCC,GEN,IDN,MA,SA)201507-201606

W/PART NUMBER LABEL

main82121-BZB71iF654..5F..GCC201607-201801

W/PART NUMBER LABEL

main82121-BZB80iF65#..5F..PHL201512-201606

W/PART NUMBER LABEL

main82121-BZB81iF65#..5F..(MXC,PHL,TH)201607-201904

W/PART NUMBER LABEL

main82121-BZK20iF65#..5F..(GCC,MXC,PHL)201901

W/PART NUMBER LABEL

main82121-BZK30iF653..4AT..STD;F654..SPO..PHL;F654..4AT..(MID,STD)..(GCC,MXC,PHL,TH)201901

W/PART NUMBER LABEL

main82121-BZB90supersedes 82121-BZK20iF653..5F..STD..IDN201507-201606

W/O ABS(WITH PROPOTIONIN VALVE),W/PART NUMBER LABEL

main82121-BZB91supersedes 82121-BZK20iF653..5F..STD..IDN201607-201810

W/O ABS(WITH PROPOTIONIN VALVE),W/PART NUMBER LABEL

main82121-BZE20supersedes 82121-BZK20iF653..5F..STD..IDN201810-201901

W/O ABS(WITH PROPOTIONIN VALVE),W/PART NUMBER LABEL

main82121-BZE21supersedes 82121-BZK20iF653..5F..STD..IDN201901-202111

W/O ABS(WITH PV),W/PART NUMBER LABEL

9004A11189

main9004A-11189

2 parts on this diagram · 16 diagrams in section
