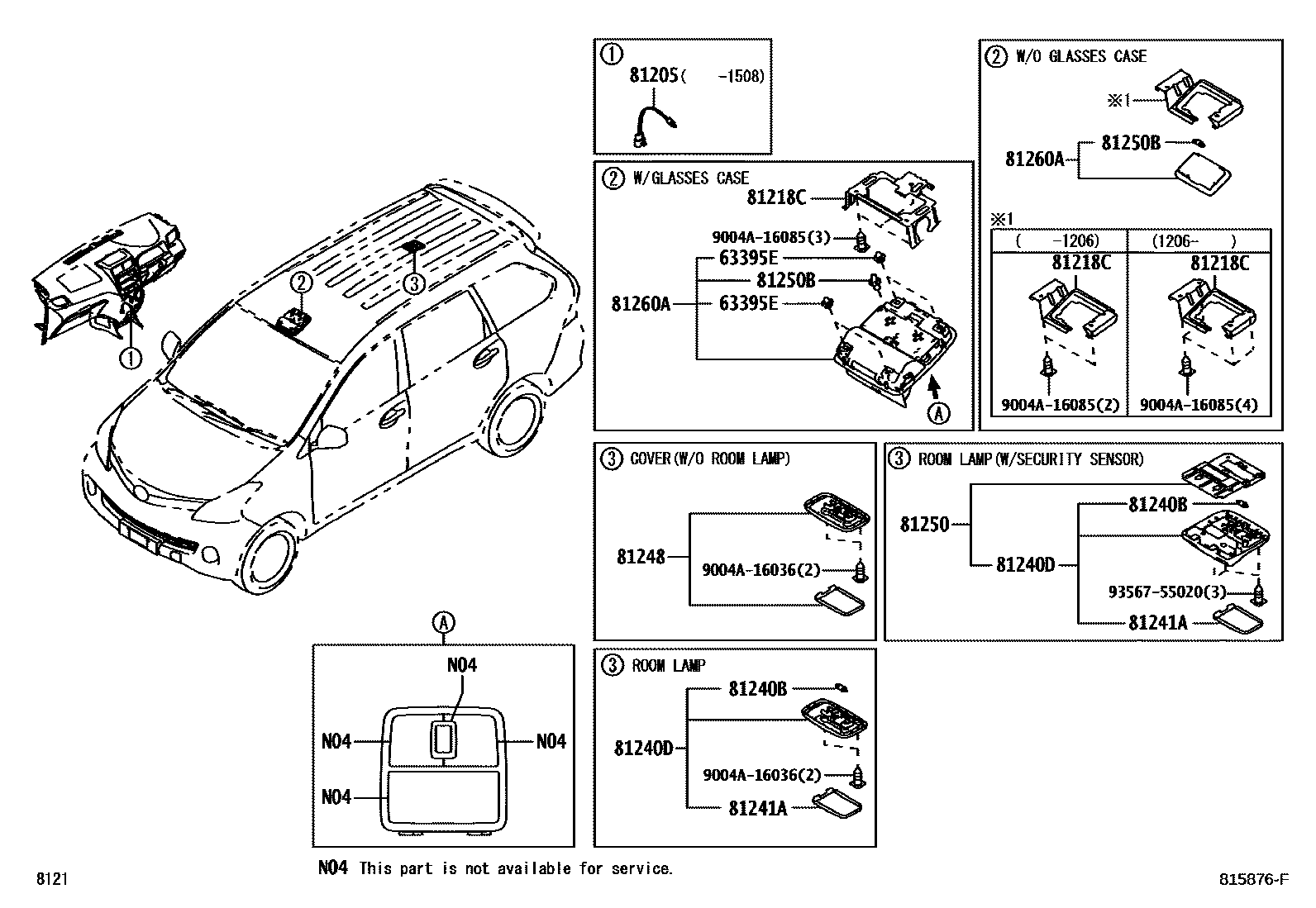

INTERIOR LAMP
63395ECLIP(FOR MAP LAMP)
PHILIPPINES VAN
81205LAMP SUB-ASSY, ASH RECEPTACLE
81218CBRACKET, MAP LAMP
81240BBULB, ROOM LAMP, NO.1
main90049-51153iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110
12V 8W
12V 8W,ANTI-THEFT(MALYSIA-BASE + THATCHAM)&ROOM LAMP-ROOM LAMP(RR W/SENSOR ONLY)
81240DLAMP ASSY, ROOM, NO.2
main81240-BZ010-B0iF654..SPO..PHL;F654..MA,MXC,SA,TH;F654..5F..(GEN,PHL);F653..(LO,STD,VB)..(GEN,PHL,SA)202007
LT.GRAY,TRIM1#,4#
main81240-BZ010-B0iF654..SPO..PHL;F654..MA,MXC,SA,TH;F654..5F..(GEN,PHL);F653..(LO,STD,VB)..(GEN,PHL,SA)202007-202110
LT.GRAY,TRIM1#
LT.GRAY,TRIM4#
ANTI-THEFT(MALYSIA-BASE + THATCHAM)&ROOM LAMP-ROOM LAMP(RR W/SENSOR ONLY),LT.GRAY,TRIM1#
LT.GRAY,TRIM4#
LT.GRAY,TRIM1#
main81240-BZ010-B1iF653..SPO;F654..4AT..STD..TH;F654..MID..(MXC,SA,TH);F653..(LO,STD,VB)..(GEN,PHL,SA);F654..(SPO,STD)..(GEN,IDN,MA,PHL,SA)201901-202007
LT.GRAY,TRIM1#,4#
81241ALENS, ROOM LAMP, NO.2
ANTI-THEFT(MALYSIA-BASE + THATCHAM)&ROOM LAMP-ROOM LAMP(RR W/SENSOR ONLY)
81248COVER, ROOM LAMP, NO.1
LT.GRAY,TRIM1#
ANTI-THEFT(MALYSIA-BASE + THATCHAM)&ROOM LAMP-ROOM LAMP(RR W/SENSOR ONLY),LT.GRAY,TRIM1#
81250BBULB, ROOM LAMP, NO.2
12V 10W
12V 8W
81260ALAMP ASSY, MAP
LT.GRAY,TRIM4#
main81240-B0020-B0iF653..STD..(MA,PHL);F654..RHD..4AT..MID;F653..(LO,SPO)..(IDN,PHL);F654..(SPO,STD)..(IDN,MA,TH)201507-202201
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#,4#
LT.GRAY,TRIM1#
LT.GRAY,TRIM4#
LT.GRAY,TRIM4#
sub81260-B4010
LT.GRAY,TRIM4#
main81260-BZ060-B0iF654..MXC,SA;F653..5F..(GEN,SA);F654..SPO..(MA,PHL);F654..5F..(GEN,PHL)201903-201904
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#,4#
9004A16036
main9004A-16036
9004A16085
main9004A-16085
9356755020
main93567-55020
13 parts on this diagram · 1 diagram in section
