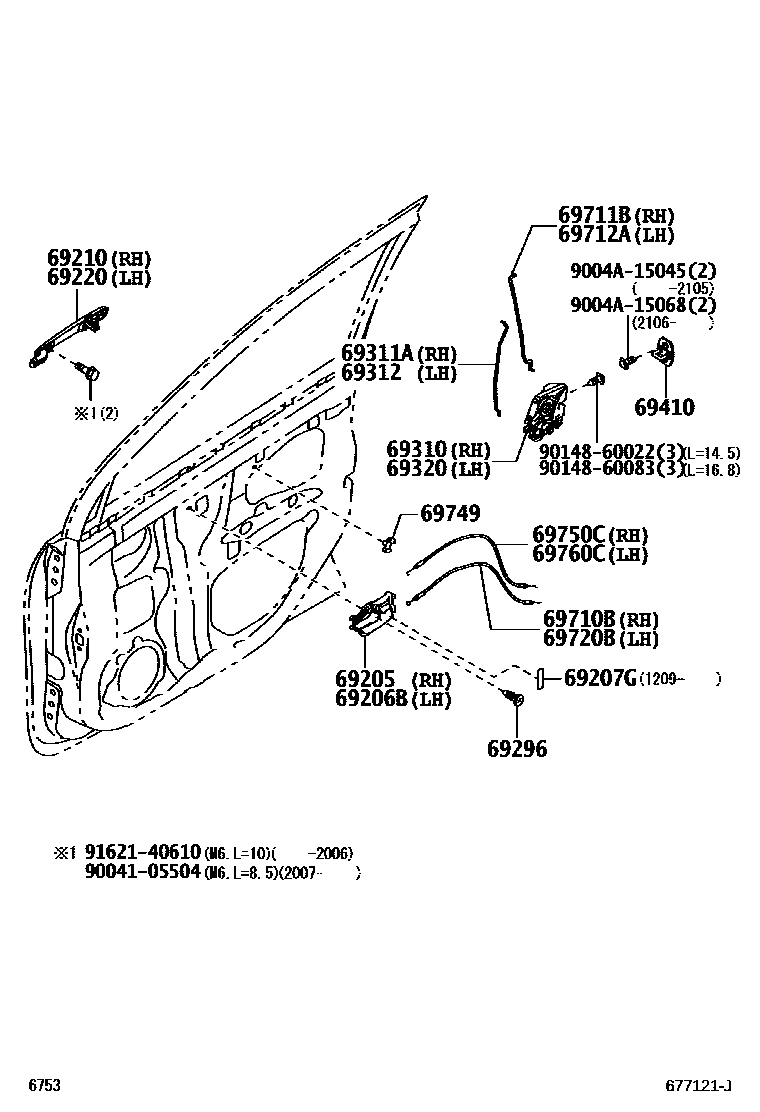

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-BZ090-B0iF652..RHD..(SPO,STD);F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201408

DK.GRAY,TRIM1#

sub69270-BZ091

main69270-BZ090-E0iF651..IDN;F651..MID..GEN;F652..(MID,STD)..(GCC,GEN,IDN,PHL)201111-201408

-,TRIM4#

sub69270-BZ091

main69270-BZ091-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201806

DK.GRAY,TRIM4#

main69270-BZ091-B0iF652..SPO..IDN201409-201806

DK.GRAY,TRIM1#

main69270-BZ091-C0iF65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201806-201904

BLACK,TRIM1#

main69270-BZ091-C0iF65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201806-201904

BLACK,TRIM4#

main69270-BZ091-E0iF65#..(MID,STD)..IDN201409-201508

BEIGE,TRIM4#

main69270-BZ091-E1iF65#..MID..IDN201901-202110

LINEN BEIGE,TRIM4#

main69270-BZ130-B0iF653,654..SPO..(IDN,PHL,TH)201507-201806

DK.GRAY,TRIM1#

main69270-BZ130-C0iF654..4AT..MXC201806-201904

MEXICO LUXURY,BLACK,TRIM1#

main69270-BZ130-C0iF65#..SPO..IDN201806-202201

BLACK,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-BZ090-B0iF652..RHD..(SPO,STD);F652..MID..(MA,MXC,SA,TH);F651..(LO,STD,VB)..(GEN,MA,PHL,SA)201111-201408

DK.GRAY,TRIM1#

sub69280-BZ091

main69280-BZ090-E0iF651..IDN;F651..MID..GEN;F652..(MID,STD)..(GCC,GEN,IDN,PHL)201111-201408

-,TRIM4#

sub69280-BZ091

main69280-BZ091-B0iF654..SPO..MA;F654..STD..GEN;F654..(MID,STD)..(MA,MXC,SA,TH);F653..(LO,STD,VB)..(GEN,MA,PHL,SA)201409-201806

DK.GRAY,TRIM1#

main69280-BZ091-B0iF653,654..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201507-201806

DK.GRAY,TRIM4#

main69280-BZ091-C0iF65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201806-201904

BLACK,TRIM1#

main69280-BZ091-C0iF65#..MID..GEN;F653..(MID,STD)..IDN;F654..(MID,STD)..(GCC,IDN,PHL)201806-201904

BLACK,TRIM4#

main69280-BZ091-E0iF651..MID..GEN;F652..GCC,GEN,PHL201409-201508

BEIGE,TRIM4#

main69280-BZ091-E1iF653..STD..IDN;F65#..MID..GEN;F654..(MID,STD)..(GCC,PHL)201901-202110

LINEN BEIGE,TRIM4#

main69280-BZ130-B0iF653,654..SPO..(IDN,PHL,TH)201507-201806

DK.GRAY,TRIM1#

main69280-BZ130-C0iF65#..SPO..(IDN,PHL,TH)201806-202201

BLACK,TRIM1#

main69280-BZ130-C0iF65#..SPO..(IDN,PHL,TH)201806-201904

MEXICO LUXURY,BLACK,TRIM1#

69207GPLATE(FOR FRONT DOOR LOCK INSIDE HANDLE)

main74531-BZ030iF65#..IDN201209-202110

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-BZ200-A0iF654..4AT..IDN201901-202110

RHD GENERAL COUNTRIES,WHITE,W09

main69210-BZ200-A0iF65#..MID..IDN201901-202110

SRI LANKA,WHITE,W09

main69210-BZ200-A0iF65#..IDN201111-202110

WHITE,W09

main69210-BZ200-B0iF65#..(MID,STD)..IDN201111-201508

GRAY ME.,S37

main69210-BZ200-B1iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

SILVER M.M.,1E7

main69210-BZ200-B1iF65#..MID..IDN201901-202110

RHD GENERAL COUNTRIES,SILVER M.M.,1E7

main69210-BZ200-B1iF65#..MID..IDN201901-202110

SRI LANKA,SILVER M.M.,1E7

main69210-BZ200-B2iF65#..IDN201111-201508

DK. STEEL MC.,1H2

main69210-BZ200-B3iF653,654..LO,MID,STD,VB201507-202110

GRAY ME.,1G3

main69210-BZ200-C0iF654..4AT..IDN201901-202110

SRI LANKA,BLACK ME.,X12

main69210-BZ200-C0iF654..4AT..IDN201901-202110

RHD GENERAL COUNTRIES,BLACK ME.,X12

main69210-BZ200-C0iF654..4AT..IDN201111-202110

BLACK ME.,X12

main69210-BZ200-D0iF651,652..(MID,STD)..(MA,TH)201111-201508

MAROON MC.,R56

main69210-BZ200-D1iF654..4AT..(MID,STD)..TH;F654..(SPO,STD)..(MA,PHL)201507-202201

DK. RED M.M.,3Q3

main69210-BZ200-D1iF654..4AT..IDN201901-202110

SRI LANKA,DK. RED M.M.,3Q3

main69210-BZ200-D1iF654..4AT..IDN201901-202110

RHD GENERAL COUNTRIES,DK. RED M.M.,3Q3

main69210-BZ200-E0iF653,654..LO,MID,STD,VB201111-202201

CHAMPAGNE ME.,T23

main69210-BZ200-E1iF653,654..(MID,STD)..(IDN,MA,TH)201507-201904

DK. BROWN M.M.,4U3

main69210-BZ200-E2iF65#..MID..IDN201901-202201

BRONZE M.M.,4T3

main69210-BZ200-J0iF651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

LT.BLUE ME.,B72

main69210-BZ200-J1iF653,654..LO,MID,STD,VB201507-201904

NEBULA BLUE ME.,8X2

main69210-BZ200-J4iF654..4AT..(MID,STD)..TH;F65#..(LO,MID,STD,VB)..(GCC,GEN,MXC,PHL,SA)201901-202201

DARK BLUE SE.,B79

main69210-BZ420-A0iF65#..SPO..IDN201901-202110

WHITE,W09

main69210-BZ420-B0iF65#..SPO..IDN201901-202110

SILVER M.M.,1E7

main69210-BZ420-C0iF65#..SPO..IDN201901-202110

BLACK ME.,X12

main69210-BZ420-D0iF65#..SPO..IDN201901-202110

DK. RED M.M.,3Q3

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-BZ200-A0iF65#..MID..IDN201901-202110

RHD GENERAL COUNTRIES,WHITE,W09

main69220-BZ200-A0iF65#..IDN201111-202110

WHITE,W09

main69220-BZ200-A0iF65#..MID..IDN201901-202110

SRI LANKA,WHITE,W09

main69220-BZ200-B0iF651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

GRAY ME.,S37

main69220-BZ200-B1iF65#..MID..IDN201901-202110

SRI LANKA,SILVER M.M.,1E7

main69220-BZ200-B1iF654..4AT..IDN201111-202110

SILVER M.M.,1E7

main69220-BZ200-B1iF65#..MID..IDN201901-202110

RHD GENERAL COUNTRIES,SILVER M.M.,1E7

main69220-BZ200-B2iF651,652..GCC,GEN,MA,MXC,PHL,TH201111-201508

DK. STEEL MC.,1H2

main69220-BZ200-B3iF65#..MID..IDN201507-202110

GRAY ME.,1G3

main69220-BZ200-C0iF651,652..MA,SA,TH201111-202110

BLACK ME.,X12

main69220-BZ200-C0iF65#..MID..IDN201901-202110

SRI LANKA,BLACK ME.,X12

main69220-BZ200-C0iF654..4AT..IDN201901-202110

RHD GENERAL COUNTRIES,BLACK ME.,X12

main69220-BZ200-D0iF65#..(MID,STD)..IDN201111-201508

MAROON MC.,R56

main69220-BZ200-D1iF654..4AT..IDN201901-202110

SRI LANKA,DK. RED M.M.,3Q3

main69220-BZ200-D1iF654..SPO..PHL;F653,654..IDN,MA,TH201507-202201

DK. RED M.M.,3Q3

main69220-BZ200-D1iF65#..MID..IDN201901-202110

RHD GENERAL COUNTRIES,DK. RED M.M.,3Q3

main69220-BZ200-E0iF651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-202201

CHAMPAGNE ME.,T23

main69220-BZ200-E1iF653,654..(MID,STD)..(IDN,MA,TH)201507-201904

DK. BROWN M.M.,4U3

main69220-BZ200-E2iF65#..GCC,GEN,MXC,SA201901-202201

BRONZE M.M.,4T3

main69220-BZ200-J0iF651,652..(LO,MID,STD,VB)..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

LT.BLUE ME.,B72

main69220-BZ200-J1iF653,654..LO,MID,STD,VB201507-201904

NEBULA BLUE ME.,8X2

main69220-BZ200-J4iF65#..MID..IDN201901-202201

DARK BLUE SE.,B79

main69220-BZ380-A0iF65#..SPO..IDN201901-202110

WHITE,W09

main69220-BZ380-B0iF65#..SPO..IDN201901-202110

SILVER M.M.,1E7

main69220-BZ380-C0iF65#..SPO..IDN201901-202110

BLACK ME.,X12

main69220-BZ380-D0iF65#..SPO..IDN201901-202110

DK. RED M.M.,3Q3

69296SCREW, DOOR INSIDE HANDLE

main90041-67041iF651,652201111-201710

main9004A-16093iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201711-202110

69310LOCK ASSY, FRONT DOOR, RH

main69310-BZ110iF651..LO..GEN201112-202201

main69310-BZ120iF65#..IDN201111-201507

main69310-BZ130iF653,654..RHD201111-201610

sub69310-BZ370

main69310-BZ140iF651,652..LHD..(MID,STD)201112-201508

W/KEYLESS

sub69310-BZ380

main69310-BZ140iF654..LHD;F653..GEN;F653..STD..PHL201508-201610

sub69310-BZ380

main69310-BZ370iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201611-202110

main69310-BZ380iF654..LHD;F653..GEN;F653..STD..PHL201611-201904

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-BZ060iF65#..IDN201111-202110

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-BZ060iF65#..IDN201111-202110

69320LOCK ASSY, FRONT DOOR, LH

main69320-BZ100iF651..LO..GEN201112-202201

main69320-BZ110iF651,652..MA,SA,TH201111-201610

sub69320-BZ330

main69320-BZ120iF651..STD..PHL201112-201508

W/KEYLESS

sub69320-BZ340

main69320-BZ120iF65#..LHD..(MID,STD)201508-201610

sub69320-BZ340

main69320-BZ260iF653..LO..GEN201503-201904

main69320-BZ330iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201611-202110

main69320-BZ340iF65#..LHD..(MID,SPO,STD)201611-201904

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-BZ010iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-BZ070iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-BZ040iF65#..IDN201111-202110

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-BZ040iF65#201111-201311

sub69712-BZ041

main69712-BZ041iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201312-202110

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-BZ070iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iF65#..IDN201111-201601

main69749-BZ100iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201602-202110

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-BZ070iF65#..IDN201111-202110

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-BZ060iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

9004105504

main90041-05504

9004A15045

main9004A-15045

9004A15068

main9004A-15068

9014860022

main90148-60022

9014860083

main90148-60083

9162140610

main91621-40610

24 parts on this diagram · 1 diagram in section
