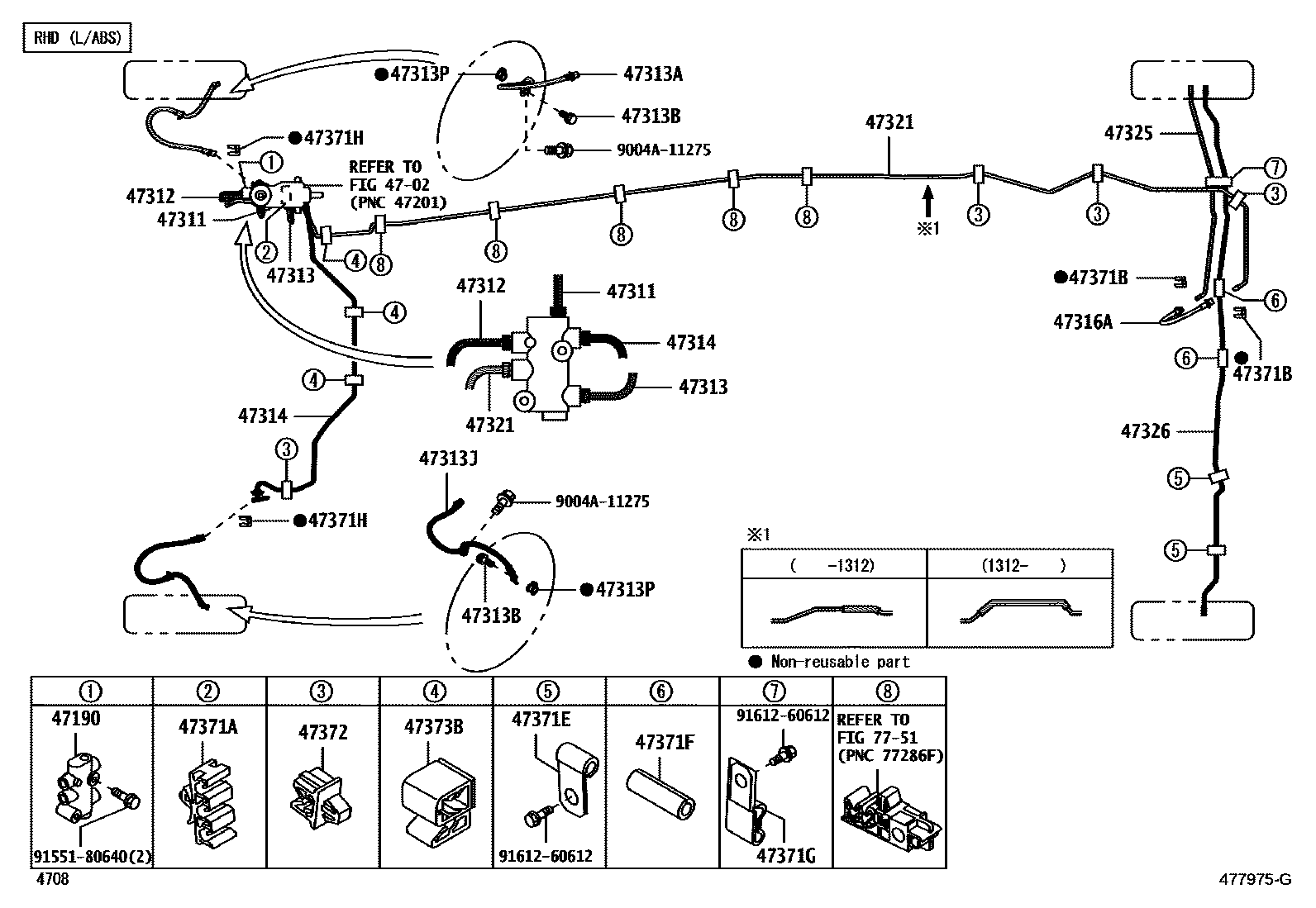

BRAKE TUBE & CLAMP

0001 1RHD L/ABS 0003 1RHD L/ABS 0004 1RHD W/ABS 0006 1RHD W/ABS 0007 1LHD L/ABS 0009 1LHD W/ABS 0011 1LHD W/ABS 0012 1ABS ACTUATOR 0014 1ABS ACTUATOR 0017 1ABS ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-BZ020iF652..MXC;F651..LO..GEN;F651,652..(LO,STD)..(MA,PHL,TH)201111-201508

47311TUBE, FRONT BRAKE, NO.1

main47311-BZ320iF65#..(MID,STD)..IDN201111-201507

main47311-BZ330iF651,652..SA;F652..(MID,SPO)..(MA,TH)201111-201508

main47311-BZ340iF652..MXC;F651..LHD..LO;F651..STD..PHL201112-201508

main47311-BZ350iF651..STD..GEN201305-201508

main47311-BZ450iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main47311-BZ460iF65#..GEN,MXC,PHL201508-201904

main47311-BZ540iF65#..SA201608-201904

main47311-BZ550iF654..GCC201904-202201

main47311-BZ440supersedes 47311-BZ450iF653..STD..IDN201507-201901

W/O ABS(WITH PROPOTIONIN VALVE)

47312TUBE, FRONT BRAKE, NO.2

main47312-BZ080iF651,652..STD..(MA,TH)201111-201508

main47312-BZ100iF651..STD..GEN201112-201305

main47312-BZ350iF652..SPO..IDN201111-201507

main47312-BZ370iF651..STD..GEN201305-201508

main47312-BZ480iF65#..(MID,SPO)..IDN201901-202110

main47312-BZ490iF654..GCC201508-201608

main47312-BZ550iF65#..SA201904-202201

main47312-BZ560iF654..GCC201608-201904

main47312-BZ470supersedes 47312-BZ480iF653..STD..IDN201507-201901

W/O ABS(WITH PROPOTIONIN VALVE)

47313TUBE, FRONT BRAKE, NO.3

main47313-BZ290iF651,652..STD..(MA,TH)201111-201508

main47313-BZ300iF652..SPO..IDN201111-201507

main47313-BZ310iF652..MXC;F651..LHD..LO;F651..STD..PHL201112-201508

main47313-BZ320iF651..MID..GEN;F652..GCC,GEN,PHL201112-201508

main47313-BZ440iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main47313-BZ430supersedes 47313-BZ440iF653..STD..IDN201901-202111

W/O ABS(WITH PV)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main47330-BZ020iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

main9004A-94106iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90044-01079×2iF65#201111-201211

main90401-10058×2iF65#..(MID,SPO)..IDN201901-202110

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main47330-BZ020iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main9004A-94102iF65#..IDN201111-201507

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201901

main47389-97201×2iF65#201111-201211

47314TUBE, FRONT BRAKE, NO.4

main47314-BZ080iF65#..(MID,STD)..IDN201111-201507

main47314-BZ100iF651..STD..GEN201112-201305

main47314-BZ320iF652..SPO..IDN201111-201507

main47314-BZ340iF651..MID..GEN;F652..GCC,GEN,PHL201112-201508

main47314-BZ500iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

main47314-BZ520iF653..STD..IDN201901-202111

W/O ABS(WITH PV)

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main9004A-94040×2iF651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH); F652..MXC;F651..LO..GEN;F651,652..(LO,STD)..(MA,PHL,TH)201111-201508

main9004A-94118×2iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH); F653..STD..IDN201507-201901

W/O ABS(WITH PROPOTIONIN VALVE)

47321TUBE, REAR BRAKE, NO.1

main47321-BZ030iF651,652..SA;F652..(MID,SPO)..(MA,TH)201111-201508

main47321-BZ070iF651..IDN,MA;F652..MID..IDN;F652..STD..(MA,TH)201111-201312

main47321-BZ090iF652..MXC;F651..LHD..LO;F651..STD..PHL201112-201508

main47321-BZ200iF651..MID..GEN;F652..GCC,GEN,PHL201112-201508

main47321-BZ260iF65#..(MID,SPO)..IDN201901-202110

main47321-BZ270iF65#..(MID,STD)..IDN201312-201507

main47321-BZ250supersedes 47321-BZ260iF653..STD..IDN201901-202111

W/O ABS(WITH PV)

47325TUBE, REAR BRAKE, NO.5

main47325-BZ130iF651..STD..GEN201111-201305

main47325-BZ140iF651..STD..GEN201305-201508

main47325-BZ190iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main47325-BZ180supersedes 47325-BZ190iF653..STD..IDN201901-202111

W/O ABS(WITH PV)

47326TUBE, REAR BRAKE, NO.6

main47326-BZ150iF652..MXC;F651..LO..GEN;F651,652..(LO,STD)..(MA,PHL,TH)201111-201508

main47326-BZ160iF651..SA;F652..(SPO,STD)..(IDN,SA);F65#..(MID,SPO)..(GEN,MA,PHL,SA,TH)201111-201206

main47326-BZ161iF651..SA;F651..MID..GEN;F652..GCC,GEN,PHL,SA;F652..(MID,SPO)..(MA,TH)201207-201508

main47326-BZ220iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

main47326-BZ210supersedes 47326-BZ220iF653..STD..IDN201507-201901

W/O ABS(WITH PROPOTIONIN VALVE)

47371ACLAMP, BRAKE TUBE, NO.1

main9004A-46290iF65#..IDN201111-201507

main9004A-46369×2iF65#..GCC,SA201904-202201

47371BCLAMP, BRAKE TUBE, NO.6

main90044-65441×2iF651..STD..GEN201111-201305

47371ECLAMP, BRAKE TUBE, NO.9

main96221-30705×2iF651..STD..GEN201111-201305

47371FCLAMP, BRAKE TUBE, NO.10

main9004A-44063×2iF651..STD..GEN201111-201305

main9004A-46296×2iF653..STD..IDN201507-201901

W/O ABS(WITH PROPOTIONIN VALVE)

47371GCLAMP, BRAKE TUBE, NO.11

main9004A-46094iF651..STD..GEN201111-201305

47371HCLAMP, BRAKE TUBE, NO.12

main90044-65441×2iF65#..IDN201111-201507

47372CLAMP, BRAKE TUBE, NO.2

main9004A-46296×2iF65#..(MID,STD)..IDN; F652..SPO..IDN201111-201507

47373BCLAMP, BRAKE TUBE, NO.3

main9004A-46299×2iF65#..(MID,STD)..IDN; F652..SPO..IDN201111-201507

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9004A11275

main9004A-11275

9155180640

main91551-80640

9161260612

main91612-60612

26 parts on this diagram · 10 diagrams in section
