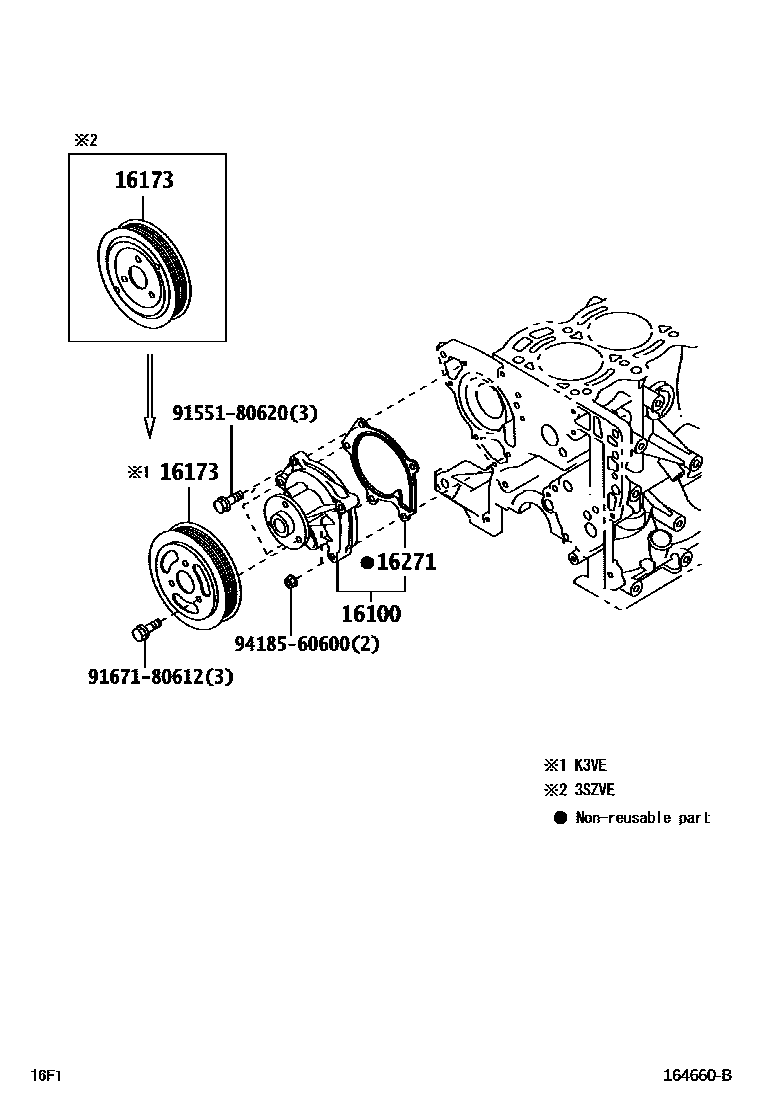

WATER PUMP

0001 1 0002 1 0006 1

16100PUMP ASSY, ENGINE WATER

main16100-B9010iK3VE,3SZVE..F65#201111-201301

main16100-B9011iK3VE,3SZVE..F65#201412-201502

main16100-B9021iK3VE,3SZVE..F65#201302-201411

main16100-B9022iK3VE,3SZVE..F65#..IDN201503-201507

main16100-B9490i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

16173PULLEY, WATER PUMP

main16173-BZ010iK3VE..F651..IDN201111-201507

main16173-BZ050i3SZVE..F652..IDN201111-201507

16271GASKET, WATER PUMP

main16271-0Y030i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

main16271-BZ020iK3VE,3SZVE..F65#..IDN201111-201507

9155180620

main91551-80620

9167180612

main91671-80612

9418560600

main94185-60600

6 parts on this diagram · 3 diagrams in section
