Toyota AVANZA — VENTILATION HOSE

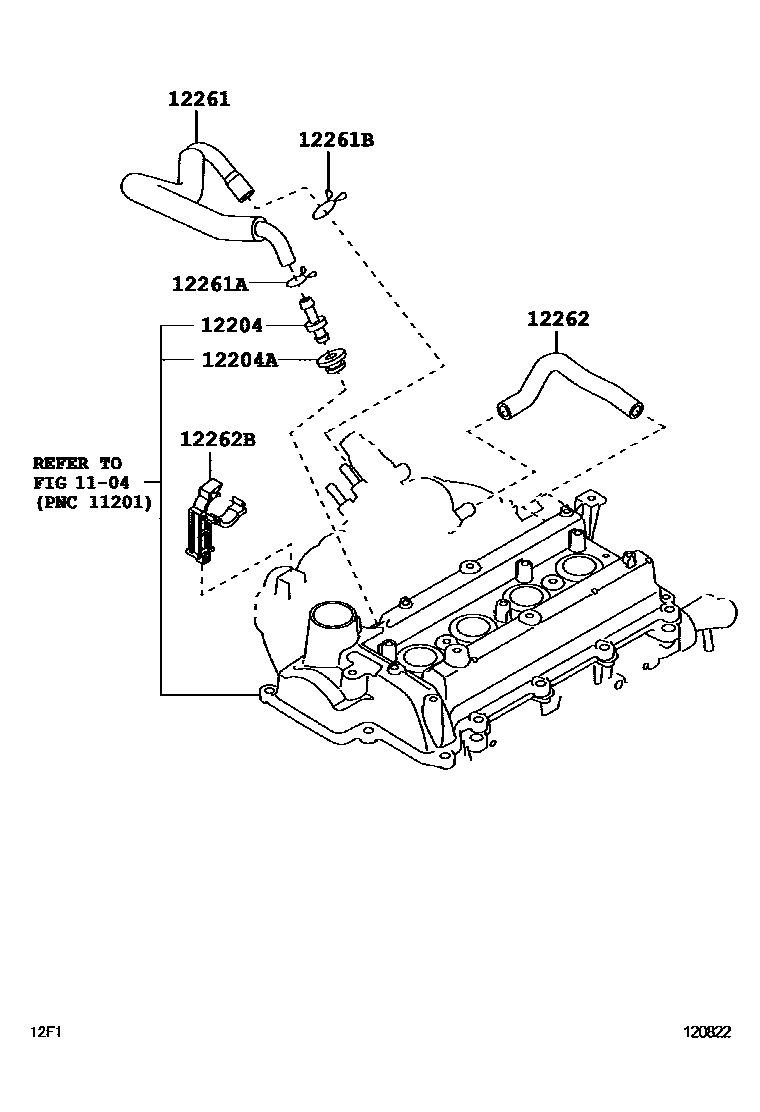

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

12204VALVE SUB-ASSY, VENTILATION

12204AGROMMET(FOR VENTILATION SYSTEM)

12261HOSE, VENTILATION

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

12262HOSE, VENTILATION, NO.2

12262BCLAMP(FOR VENTILATION HOSE)

8 parts on this diagram · 2 diagrams in section

VENTILATION HOSE for Toyota AVANZA

This section contains 13 genuine Toyota parts for the VENTILATION HOSE system of the Toyota AVANZA. Key components include: CYLINDER HEAD, VALVE SUB-ASSY, VENTILATION, GROMMET(FOR VENTILATION SYSTEM), HOSE, VENTILATION, CLIP OR CLAMP(FOR VENTILATION HOSE).
