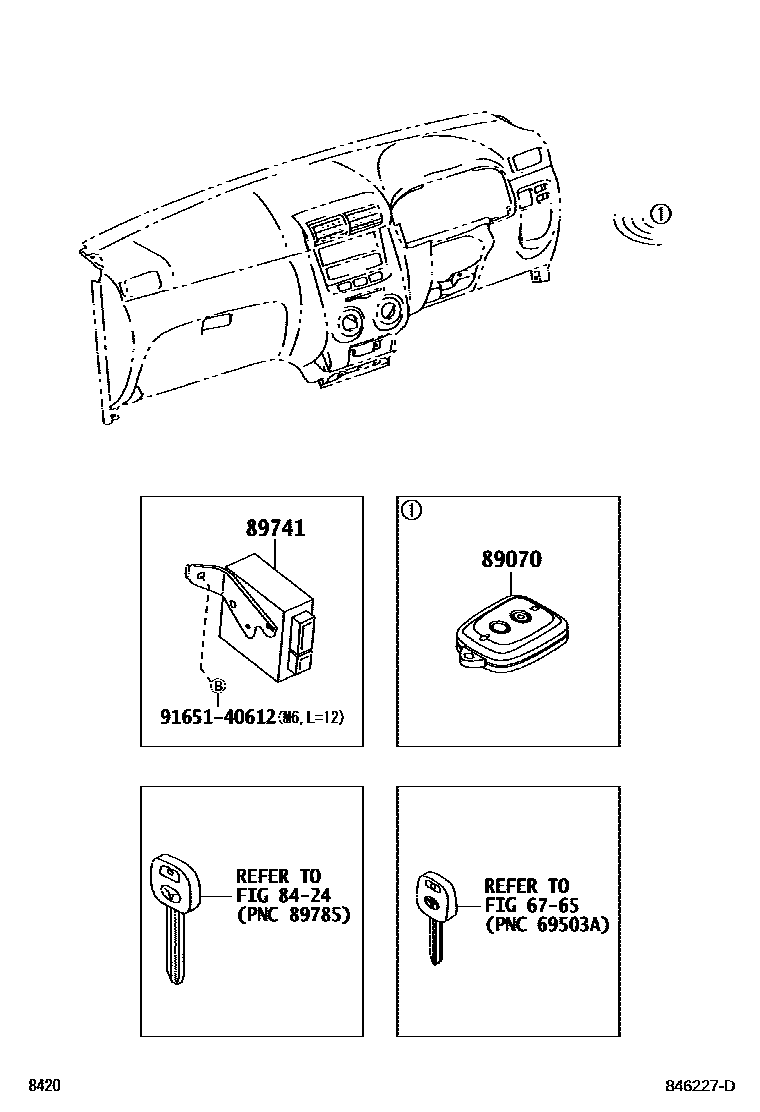

WIRELESS DOOR LOCK

0001 1 0002 1

6765LOCK CYLINDER SET

→ Go to FIG 67-65

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89070TRANSMITTER ASSY, DOOR CONTROL

main89742-BZ020×2iF601..MA200410-200605

main89742-BZ030iF601..S200408-200608

main89742-BZ050iF602..PHL200703

89741RECEIVER, DOOR CONTROL

main89741-BZ020iF601..MA200410-200605

main89741-BZ050iF602..MA;F601..5F..MA200609

main89741-BZ060iF602..PHL200610-200703

main89741-BZ070iF602..S..TH200610

main89741-BZ080iF601..MA200606-200608

main89741-BZ090iF601..S200408-200608

main89741-BZ100iF601..(DLX,STD)..SA;F602..(DLX,G,GL)..(GEN,SA)200608

main89741-BZ160iF602..PHL200703

9165140612

main91651-40612

5 parts on this diagram · 2 diagrams in section
