Toyota AVANZA — WIRING & CLAMP

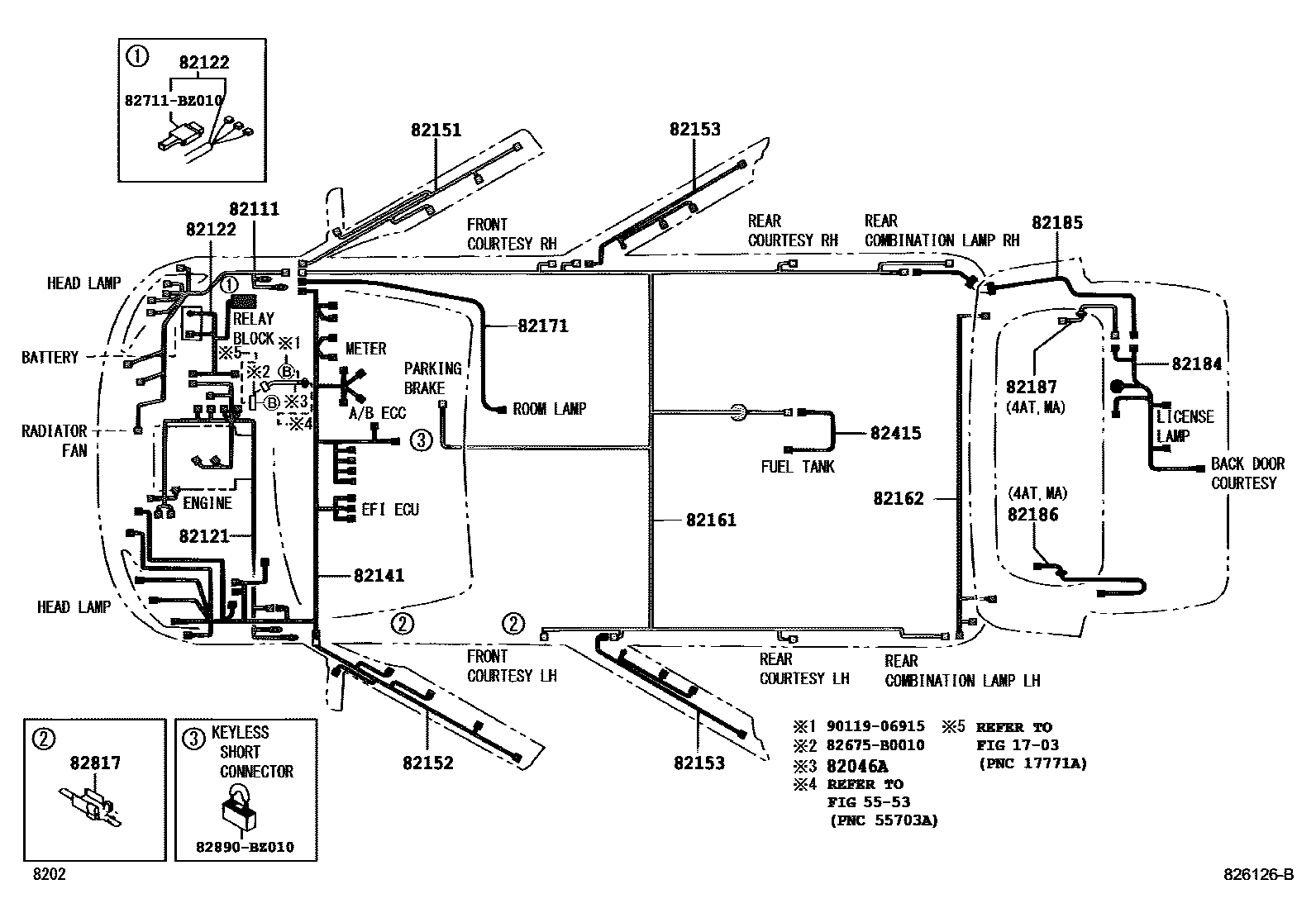

Parts diagram

1703AIR CLEANER

→ Go to FIG 17-03

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

82121WIRE, ENGINE

82122WIRE, ENGINE, NO.2

82151WIRE, FRONT DOOR, RH

82152WIRE, FRONT DOOR, LH

82153WIRE, REAR DOOR, NO.1

82162WIRE, FLOOR, NO.2

82171WIRE, ROOF, NO.1

82184WIRE, BACK DOOR, NO.1

82185WIRE, BACK DOOR, NO.2

82186WIRE, REAR WINDOW, NO.1

82187WIRE, REAR WINDOW, NO.2

82415WIRE, FUEL PUMP

82817PROTECTOR, WIRING HARNESS, NO.1

82675B0010TERMINAL, JUNCTION

82711BZ010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

82890BZ010CONNECTOR ASSY, WIRING HARNESS

9011906915

23 parts on this diagram · 8 diagrams in section

WIRING & CLAMP for Toyota AVANZA

This section contains 70 genuine Toyota parts for the WIRING & CLAMP system of the Toyota AVANZA. Key components include: AIR CLEANER, COWL PANEL & WINDSHIELD GLASS, WIRE SUB-ASSY, BODY GROUND, NO.1, WIRE, ENGINE ROOM MAIN, WIRE, ENGINE.
