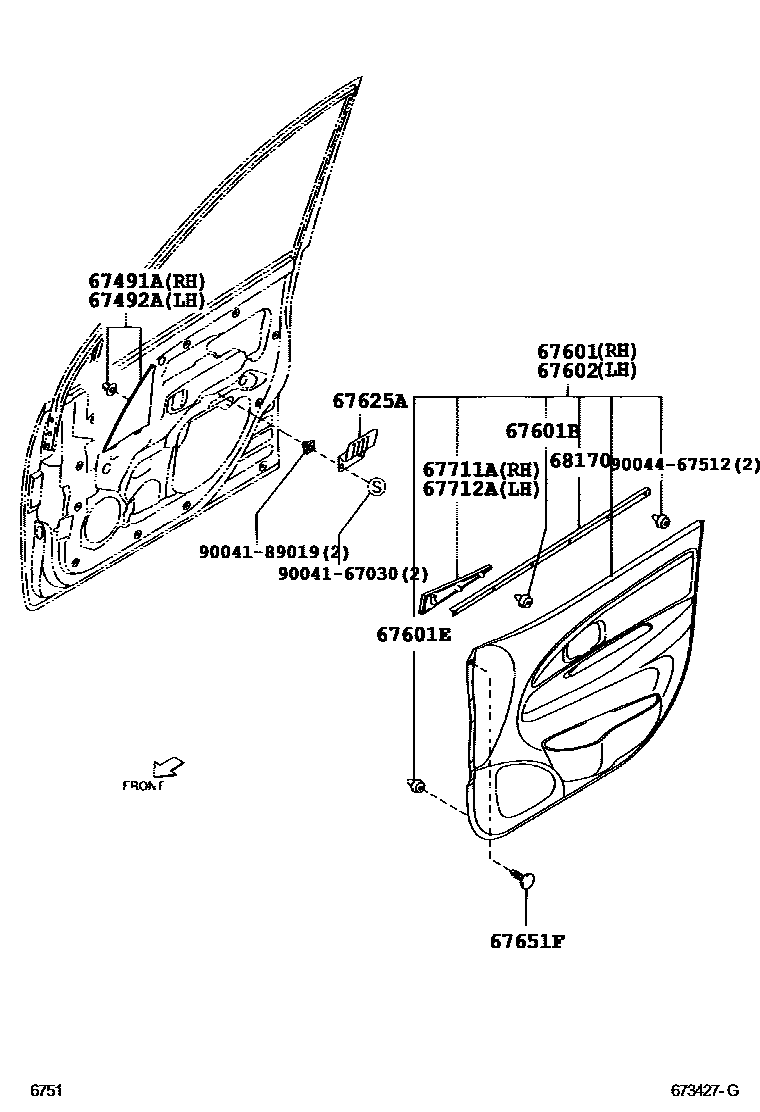

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-BZ010iF601..CTM,J;F601..DLX..GEN200608

main67491-BZ020iF601200312-200911

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-BZ010iF601..CTM,J;F601..DLX..GEN200608

main67492-BZ020iF601..4AT200312-200911

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67605-BZ010-B0iF601..E,G,GL200312-200608

DK.GRAY,TRIM1#

main67605-BZ030-B0iF601..S200408-200608

DK.GRAY,TRIM1#

main67605-BZ050-B0iF601..LIMD200412-200608

136B,TRIM1#

main67605-BZ070-B0iF60#..(DLX,GL,STD)..SA200610

DK.GRAY,TRIM1#

main67605-BZ080-A0iF601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main67605-BZ090-A0iF602..S..(GEN,IDN)200608-200810

IVORY,TRIM0#

main67605-BZ130-A0iF60#..MA200609-200811

IVORY,TRIM0#

main67605-BZ250-E0iF601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main67605-BZ260-E0iF601..4AT200811-201010

GREGE,TRIM4#

main67605-BZ270-E0iF602..S..(GEN,IDN)200810

GREGE,TRIM4#

main67605-BZ440-B0iF602..MA;F601..5F..MA201010

DK.GRAY,TRIM1#

main67610-BZ140-B0iF601..CTM,J;F601..DLX..GEN200608-201107

DK.GRAY,TRIM1#

sub67610-BZ141

main67610-BZ141-B0iF601..CTM,J;F601..DLX..GEN201108

DK.GRAY,TRIM1#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-10161iF602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA)200312-200911

67601ECAP(FOR FRONT DOOR TRIM BOARD)

main9004A-46302iF602..GEN,IDN,MXC,PHL,SA,TH;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA)200802

main90467-09206iF601200312-200911

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67606-BZ010-B0iF601..E,G,GL200312-200608

DK.GRAY,TRIM1#

main67606-BZ030-B0iF601..S200408-200608

DK.GRAY,TRIM1#

main67606-BZ060-B0iF601..LIMD200412-200608

136B,TRIM1#

main67606-BZ080-B0iF60#..(DLX,GL,STD)..SA200610

DK.GRAY,TRIM1#

main67606-BZ090-A0iF601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main67606-BZ100-A0iF602..S..(GEN,IDN)200608-200810

IVORY,TRIM0#

main67606-BZ140-A0iF60#..MA200609-200811

IVORY,TRIM0#

main67606-BZ260-E0iF601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main67606-BZ270-E0iF602..MA;F601..5F..MA200811-201010

GREGE,TRIM4#

main67606-BZ280-E0iF602..S..(GEN,IDN)200810

GREGE,TRIM4#

main67606-BZ440-B0iF602..MA;F601..5F..MA201010

DK.GRAY,TRIM1#

main67620-BZ160-B0iF601..CTM,J;F601..DLX..GEN200608-201107

DK.GRAY,TRIM1#

sub67620-BZ161

main67620-BZ161-B0iF601..CTM,J;F601..DLX..GEN201108

DK.GRAY,TRIM1#

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-BZ010iF601200312-200911

67651FCLIP(FOR FRONT DOOR TRIM BOARD)

main90044-68279-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200811

IVORY,TRIM0#

main90044-68279-B0iF601200312-200809

DK.GRAY,TRIM1#

main90044-68279-E0iF602..MA;F601..5F..MA200811-201010

GREGE,TRIM4#

main9004A-46293-B0iF60#..(DLX,GL,S,STD)..(SA,TH)200810

DK.GRAY,TRIM1#

main9004A-46293-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

67711ACOVER, DOOR TRIM, RH

main67711-BZ010-A0iF60#..MA200608-200811

IVORY,TRIM0#

main67711-BZ010-B0iF60#..(DLX,GL,STD)..SA200312-200608

DK.GRAY,TRIM1#

main67711-BZ010-E0iF601..4AT200810-201010

GREGE,TRIM4#

67712ACOVER, DOOR TRIM, LH

main67712-BZ010-A0iF60#..MA200608-200811

IVORY,TRIM0#

main67712-BZ010-B0iF602..MA;F601..5F..MA200312-200608

DK.GRAY,TRIM1#

main67712-BZ010-E0iF601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810-201010

GREGE,TRIM4#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-BZ010iF601200312-200608

9004167030

main90041-67030

9004189019

main90041-89019

9004467512

main90044-67512

14 parts on this diagram · 6 diagrams in section
