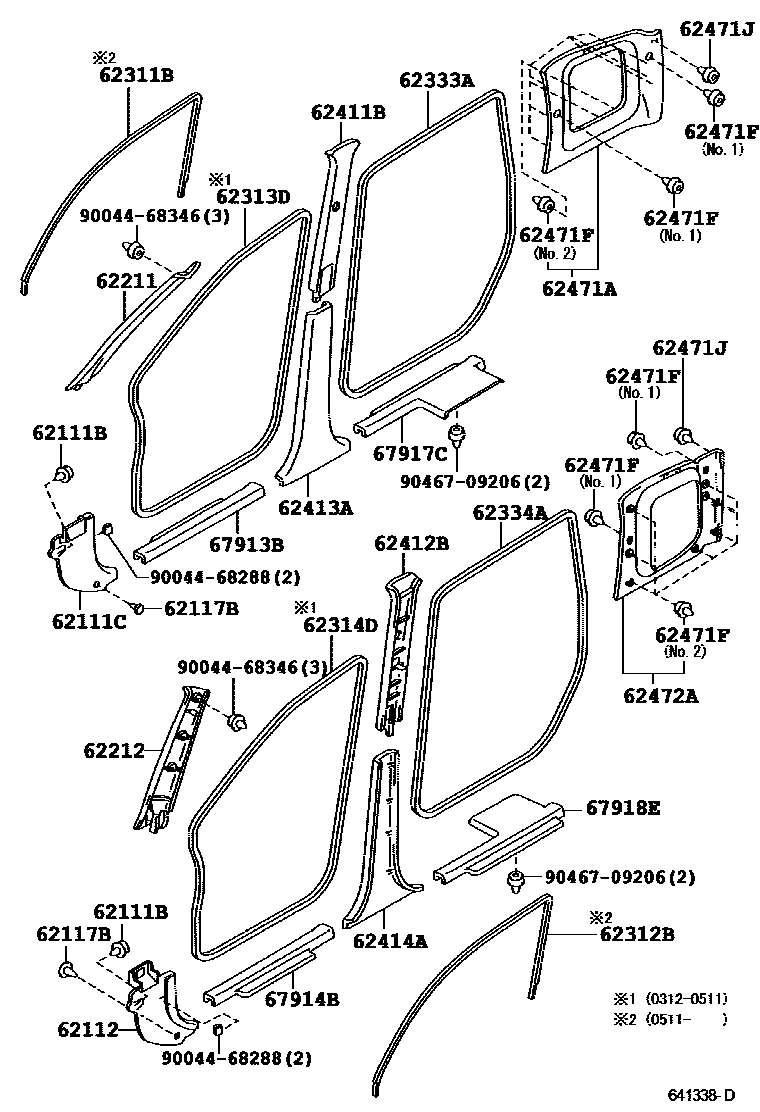

INSIDE TRIM BOARD

0001 1 0002 1 0004 1 0005 1TWEETER 0006 1TWEETER 0007 1 0008 1 0009 1 0010 1

62111BCLIP(FOR COWL SIDE TRIM)

main9004A-46131-A0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main9004A-46131-B0iF601200312-200608

DK.GRAY,TRIM1#

main9004A-46131-E0iF602..MA;F601..5F..MA200810-201108

GREGE,TRIM4#

62111CBOARD, COWL SIDE TRIM, RH

main62111-BZ010-A0iF602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD)200608-200810

IVORY,TRIM0#

main62111-BZ010-B0iF602..MA;F601..5F..MA200312-201108

DK.GRAY,TRIM1#

main62111-BZ010-E0iF601..5F..MA;F602..RHD..(E,G,J);F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA)200810-201108

GREGE,TRIM4#

main62111-BZ011-B0iF60#..(CTM,DLX,GL,S,STD)..(SA,TH)201108

DK.GRAY,TRIM1#

main62111-BZ011-E0iF602..S..(GEN,IDN);F60#..RHD..(E,G,J,XI)..(GEN,IDN,TH)201108

GREGE,TRIM4#

main62111-BZ070-A0iF602..LHD200610-200810

IVORY,TRIM0#

main62111-BZ070-B0iF601..LHD200608

DK.GRAY,TRIM1#

main62111-BZ070-E0iF602..LHD200810

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-BZ010-A0iF602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD)200608-200810

IVORY,TRIM0#

main62112-BZ010-B0iF60#..(CTM,DLX,GL,S,STD)..(SA,TH)200312-201108

DK.GRAY,TRIM1#

main62112-BZ010-E0iF601..5F..MA;F602..RHD..(E,G,J);F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA)200810-201108

GREGE,TRIM4#

main62112-BZ011-B0iF60#..(CTM,DLX,GL,S,STD)..(SA,TH)201108

DK.GRAY,TRIM1#

main62112-BZ011-E0iF602..S..(GEN,IDN);F60#..RHD..(E,G,J,XI)..(GEN,IDN,TH)201108

GREGE,TRIM4#

main62112-BZ070-A0iF602..LHD200610-200810

IVORY,TRIM0#

main62112-BZ070-B0iF601..LHD200608

DK.GRAY,TRIM1#

main62112-BZ070-E0iF602..LHD200810

GREGE,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main9004A-46132-A0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main9004A-46132-B0iF602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA)200312-200608

DK.GRAY,TRIM1#

main9004A-46132-E0iF601..4AT200810-201108

GREGE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-BZ020-A0iF602..S..(GEN,IDN)200608-200810

IVORY,TRIM0#

main62210-BZ020-E0iF602..S..(GEN,IDN)200810

GREGE,TRIM4#

main62211-BZ010-A0iF602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

sub62211-BZ011

main62211-BZ010-B1iF601200312-201108

LT.GRAY,TRIM1#

sub62211-BZ011

main62211-BZ010-E0iF601..4AT200810-201108

GREGE,TRIM4#

sub62211-BZ011

main62211-BZ011-B1iF601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH)201108

LT.GRAY,TRIM1#

main62211-BZ011-E0iF601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)201108

GREGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-BZ010-A0iF602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

sub62212-BZ011

main62212-BZ010-B1iF601200312-201108

LT.GRAY,TRIM1#

sub62212-BZ011

main62212-BZ010-E0iF602..S..MA;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH)200810-201108

GREGE,TRIM4#

sub62212-BZ011

main62212-BZ011-B1iF601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH)201108

LT.GRAY,TRIM1#

main62212-BZ011-E0iF601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)201108

GREGE,TRIM4#

main62220-BZ010-A0iF602..S..(GEN,IDN)200608-200810

IVORY,TRIM0#

main62220-BZ010-E0iF602..S..(GEN,IDN)200810

GREGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-BZ010iF601200511-200604

sub62311-BZ011

main62311-BZ011iF601200605-200911

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-BZ010iF601200511-200604

sub62312-BZ011

main62312-BZ011iF601..4AT200605-200911

62313DTRIM, FRONT DOOR OPENING, RH

main62313-BZ010-B0iF601..IDN,MA;F601..LIMD,S200312-200511

LT.GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-BZ010-B0iF601..IDN,MA;F601..LIMD,S200312-200511

LT.GRAY,TRIM1#

62333ATRIM, REAR DOOR OPENING, RH

main62333-BZ020-B0iF601200312-200511

LT.GRAY,TRIM1#

main62333-BZ090iF601200511-200605

main62333-BZ110iF601..CTM,J;F601..DLX..GEN200608

main62333-BZ120iF601..4AT200605-200911

62334ATRIM, REAR DOOR OPENING, LH

main62333-BZ020-B0iF601200312-200511

LT.GRAY,TRIM1#

main62333-BZ090iF601200511-200605

main62333-BZ110iF601..CTM,J;F601..DLX..GEN200608

main62333-BZ120iF601..4AT200605-200911

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-BZ010-A0iF601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA);F602..(E,G,GL,J)..(GEN,MA,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main62411-BZ010-B1iF601..E..TH;F601..G,GL,LIMD,S200312-200608

LT.GRAY,TRIM1#

main62411-BZ010-E0iF601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA)200810-200911

GREGE,TRIM4#

main62411-BZ020-A0iF602..MXC;F60#..(DLX,E,STD)..(IDN,SA)200608-200810

IVORY,TRIM0#

main62411-BZ020-B1iF60#..DLX,STD200312-200608

LT.GRAY,TRIM1#

main62411-BZ020-E0iF60#..(E,GL,XI)..(IDN,MXC)200810

GREGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-BZ010-A0iF601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA);F602..(E,G,GL,J)..(GEN,MA,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main62412-BZ010-B1iF602..S..TH;F601..5F..(MA,PHL);F602..(E,G,GL,S)..(MA,SA)200312-200608

LT.GRAY,TRIM1#

main62412-BZ010-E0iF601..4AT200810-200911

GREGE,TRIM4#

main62412-BZ020-A0iF602..MXC;F60#..(DLX,E,STD)..(IDN,SA)200608-200810

IVORY,TRIM0#

main62412-BZ020-B1iF60#..DLX,STD200312-200608

LT.GRAY,TRIM1#

main62412-BZ020-E0iF60#..(E,GL,XI)..(IDN,MXC)200810

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-BZ010-B0iF601..CTM200706

GRAY,TRIM1#

main62413-BZ020-A0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main62413-BZ020-B0iF602..MA,SA;F602..S..TH;F601..5F..(DLX,E,J,STD)..(GEN,MA,PHL,SA)200312-200608

DK.GRAY,TRIM1#

main62413-BZ020-E0iF601..4AT200810-200911

GREGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-BZ010-B0iF601..CTM200706

GRAY,TRIM1#

main62414-BZ020-A0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main62414-BZ020-B0iF602..MA,SA;F602..S..TH;F601..5F..(DLX,E,J,STD)..(GEN,MA,PHL,SA)200312-200608

DK.GRAY,TRIM1#

main62414-BZ020-E0iF601..4AT200810-200911

GREGE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-BZ010-B0iF601..E..IDN200312-200608

GRAY,TRIM1#

main62471-BZ020-B0iF601..G..IDN200312-200608

GRAY,TRIM1#

main62471-BZ050-A0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main62471-BZ050-B0iF602..MA;F601..5F..MA200404-200810

LT.GRAY,TRIM1#

main62471-BZ050-E0iF601..4AT200810-201011

GREGE,TRIM4#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90044-67467-A0iF602..(DLX,G)..(PHL,SA);F601..(DLX,E,STD)..(IDN,SA)200608-200810

IVORY,TRIM0#,NO.1

sub90044-67467

main90044-67467-B0iF601..E..IDN200312-200608

LT.GRAY,TRIM1#,NO.1

sub90044-67467

main90044-67467-E2iF602..PHL;F601..(E,XI)..IDN200810

GREGE,TRIM4#,NO.1

sub90044-67467

main90044-68346iF601..E..TH;F601..G,GL,LIMD,S200312-200911

NO.2

62471JCLIP (FOR ROOF SIDE GARNISH)

main90044-68114-A0iF601..G..IDN;F602..S..(GEN,IDN);F60#..(E,G,GL,J)..(GEN,MA,MXC,SA,TH)200608-200810

IVORY,TRIM0#

main90044-68114-B0iF601..5F..MA;F602..(G,GL,S)..(MA,SA,TH)200312-200810

LT.GRAY,TRIM1#

main90044-68114-E2iF602..MA;F601..5F..MA200810-201011

GREGE,TRIM4#

main9004A-46288-B0iF60#..(DLX,GL,S,STD)..(SA,TH)200810

LT.GRAY,TRIM1#

main9004A-46288-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-BZ010-B0iF601..E..IDN200312-200608

GRAY,TRIM1#

main62472-BZ020-B0iF601..G..IDN200312-200608

GRAY,TRIM1#

main62472-BZ050-A0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main62472-BZ050-B0iF60#..(DLX,STD)..SA200404-200810

LT.GRAY,TRIM1#

main62472-BZ050-E0iF602..MA;F601..5F..MA200810-201011

GREGE,TRIM4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-BZ010-A0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main67913-BZ010-B0iF602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA)200312-200608

DK.GRAY,TRIM1#

main67913-BZ010-E0iF601..4AT200810-200911

GREGE,TRIM4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-BZ010-A0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main67914-BZ010-B0iF601200312-200608

DK.GRAY,TRIM1#

main67914-BZ010-E0iF601..4AT200810-200911

GREGE,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-BZ010iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200802-200810

sub67917-BZ011

main67917-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200811

IVORY,TRIM0#

sub67917-BZ011

main67917-BZ010-B0iF601200312-201107

DK.GRAY,TRIM1#

sub67917-BZ011

main67917-BZ010-E0iF602..(E,S)..MA200810-201107

GREGE,TRIM4#

sub67917-BZ011

main67917-BZ011-B0iF60#..(DLX,GL,S,STD)..(SA,TH)201108

DK.GRAY,TRIM1#

main67917-BZ011-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)201108

GREGE,TRIM4#

main67917-BZ020-B0iF601..CTM,J;F601..DLX..GEN200608

GRAY,TRIM1#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-BZ010iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200802-200810

sub67918-BZ011

main67918-BZ010-A0iF60#..MA200608-200811

IVORY,TRIM0#

sub67918-BZ011

main67918-BZ010-B0iF60#..(DLX,GL,STD)..SA200312-201107

DK.GRAY,TRIM1#

sub67918-BZ011

main67918-BZ010-E0iF601..4AT200810-201107

GREGE,TRIM4#

sub67918-BZ011

main67918-BZ011-B0iF60#..(DLX,GL,S,STD)..(SA,TH)201108

DK.GRAY,TRIM1#

main67918-BZ011-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)201108

GREGE,TRIM4#

main67918-BZ020-B0iF601..CTM,J;F601..DLX..GEN200608

GRAY,TRIM1#

9004468288

main90044-68288

9004468346

main90044-68346

9046709206

main90467-09206

27 parts on this diagram · 9 diagrams in section
