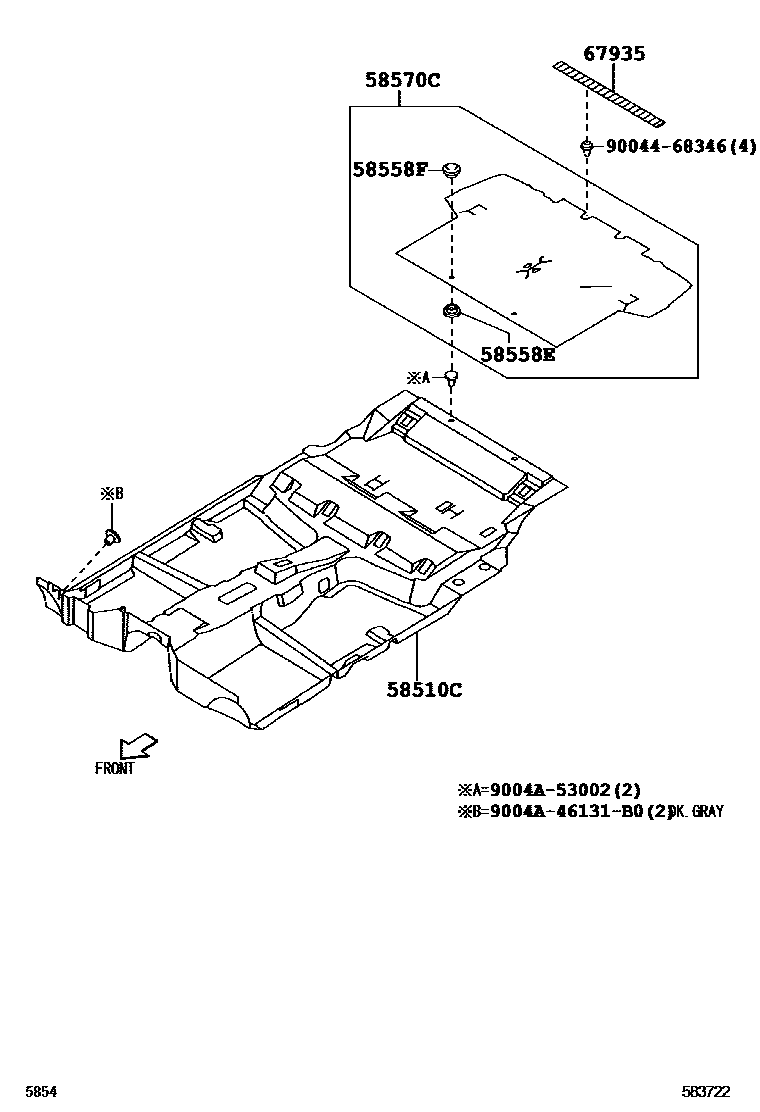

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-BZ020-B0iF601..BRU,IDN,TH200312-200608

GRAY,TRIM1#

main58510-BZ080-B0iF601..MA200410-200608

GRAY,TRIM1#

main58510-BZ160-B0iF601..CTM200706-200810

GRAY,TRIM1#

main58510-BZ170-A0iF60#..RHD..5F..(DLX,E,G,GL,J,S,STD)..(GEN,IDN,SA,TH)200608-200810

IVORY,TRIM0#

main58510-BZ180-A0iF602..5F..G;F602..4AT..PHL200610-200809

IVORY,TRIM0#

main58510-BZ181-E0iF602..5F..G;F602..4AT..PHL200810

GREGE,TRIM4#

main58510-BZ190-A0iF601..5F..MA200609-200810

IVORY,TRIM0#

main58510-BZ191-B0iF601..5F..MA201011

GRAY,TRIM1#

main58510-BZ191-E0iF601..5F..MA200811-201011

GREGE,TRIM4#

main58510-BZ200-A0iF602..E;F602..4AT..S..(GEN,IDN)200608-200809

IVORY,TRIM0#

main58510-BZ200-B0iF602..S..TH200610-200809

GRAY,TRIM1#

main58510-BZ201-B0iF602..S..TH200810

GRAY,TRIM1#

main58510-BZ201-E0iF602..4AT..S..(GEN,IDN);F60#..4AT..(E,G,XI)..(IDN,TH)200810

GREGE,TRIM4#

main58510-BZ210-A0iF602..MXC;F602..4AT..G..GEN200610-200809

IVORY,TRIM0#

main58510-BZ211-E0iF602..MXC;F602..4AT..G..GEN200810

GREGE,TRIM4#

main58510-BZ220-B0iF601..LHD200608-200809

GRAY,TRIM1#

main58510-BZ221-B0iF601..LHD200810

GRAY,TRIM1#

main58510-BZ270-A0iF60#..4AT..MA200609-200810

IVORY,TRIM0#

main58510-BZ271-B0iF602..MA201011

GRAY,TRIM1#

main58510-BZ271-E0iF602..MA200811-201011

GREGE,TRIM4#

main58510-BZ620-B0iF601..CTM200810

GRAY,TRIM1#

main58510-BZ630-B0iF60#..(DLX,GL,STD)..SA200810

GRAY,TRIM1#

main58510-BZ630-E0iF60#..RHD..5F..(GEN,IDN,TH)200810

GREGE,TRIM4#

58558EFASTENER, PILE

main58558-87209×2iF601200409-200608

main58558-87502-B2×2iF601200409-200608

DK.GRAY,TRIM1#

58558FFASTENER, PILE, UPR

main58558-87502-A0×2iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main58558-87502-B2×2iF601..LHD;F602..S..TH;F602..(E,S)..MA200608

DK.GRAY,TRIM1#

main58558-87502-E1×2iF601..4AT200810-200911

GREGE,TRIM4#

58570CCARPET ASSY, REAR FLOOR

main58570-BZ010-B0iF601..PHL200705

TAXI,GRAY,TRIM1#

main58570-BZ020-B0iF601..IDN200312-200608

GRAY,TRIM1#

main58570-BZ050-A0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main58570-BZ050-B0iF601..BRU,MA,TH200404-200608

GRAY,TRIM1#

main58570-BZ050-E0iF601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH)200810

GREGE,TRIM4#

main58570-BZ110-B0iF601..LHD200608

GRAY,TRIM1#

67935PLATE, BACK DOOR SCUFF

main67935-BZ010-B0iF601..CTM,J;F601..DLX..GEN200608

GRAY,TRIM1#

main67935-BZ020-A0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

IVORY,TRIM0#

main67935-BZ020-B0iF601200312-200608

DK.GRAY,TRIM1#

main67935-BZ020-E0iF601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,PHL,TH)200810

GREGE,TRIM4#

9004468346

main90044-68346

9004A46131B0

main9004A-46131B0

9004A53002

main9004A-53002

8 parts on this diagram · 2 diagrams in section
