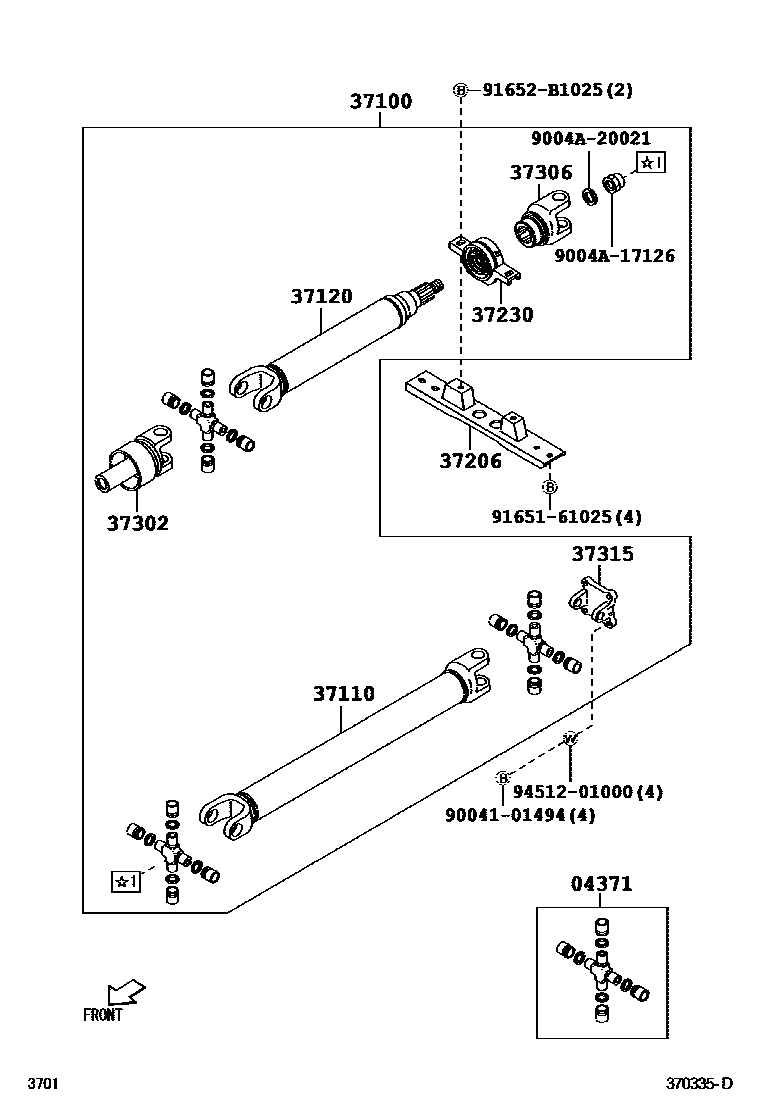

PROPELLER SHAFT & UNIVERSAL JOINT

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-BZ010iF601200312-200312

main04371-BZ030×3iF601..4AT200608-200911

main04371-BZ040×3iF60#..GEN,IDN,MXC,PHL,SA,TH201108

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37110-BZ010iF601..5F..(BRU,IDN,TH)200312-200608

main37110-BZ011iF601..5F..MA200410-200608

main37110-BZ020iF601..4AT..(BRU,IDN,TH)200404-200608

main37110-BZ021iF601..4AT..MA200410-200608

main37110-BZ140iF601..5F..(GEN,IDN,PHL,SA)201108

LABEL=PURPLE

main37110-BZ141iF601..5F..MA201111

LABEL=PURPLE

main37110-BZ150iF601..4AT..IDN;F602..GEN,IDN,MXC,PHL,SA,TH201108

LABEL=GRAY

main37110-BZ151iF602..MA201111

LABEL=GRAY

37110SHAFT ASSY, PROPELLER

main37101-BZ010iF601200312-200608

main37101-BZ040iF60#..GEN,IDN,MXC,PHL,SA,TH201108

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37104-BZ010iF601200312-200608

main37104-BZ070iF60#..GEN,IDN,MXC,PHL,SA,TH201108

37206BRACKET SUB-ASSY, CENTER SUPPORT BEARING

main37231-BZ010iF601..5F200312-200608

main37231-BZ020iF601..4AT200404-200608

main37231-BZ070iF602..MA;F601..5F..MA201111

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-BZ010iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA200608

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-BZ010iF601..5F200312-200608

main37302-BZ020iF602..MA200608-201111

main37302-BZ050iF601..5F..MA201111

main37302-BZ060iF601..4AT..IDN;F602..GEN,IDN,MXC,PHL,SA,TH201108

37306YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER

main37306-BZ010iF601200312-200608

main37306-BZ030iF60#..GEN,IDN,MXC,PHL,SA,TH201108

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-BZ010iF601200312-200608

main37315-BZ030iF60#..GEN,IDN,MXC,PHL,SA,TH201108

9004101494

main90041-01494

9004A17126

main9004A-17126

9004A20021

main9004A-20021

9165161025

main91651-61025

91652B1025

main91652-B1025

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
