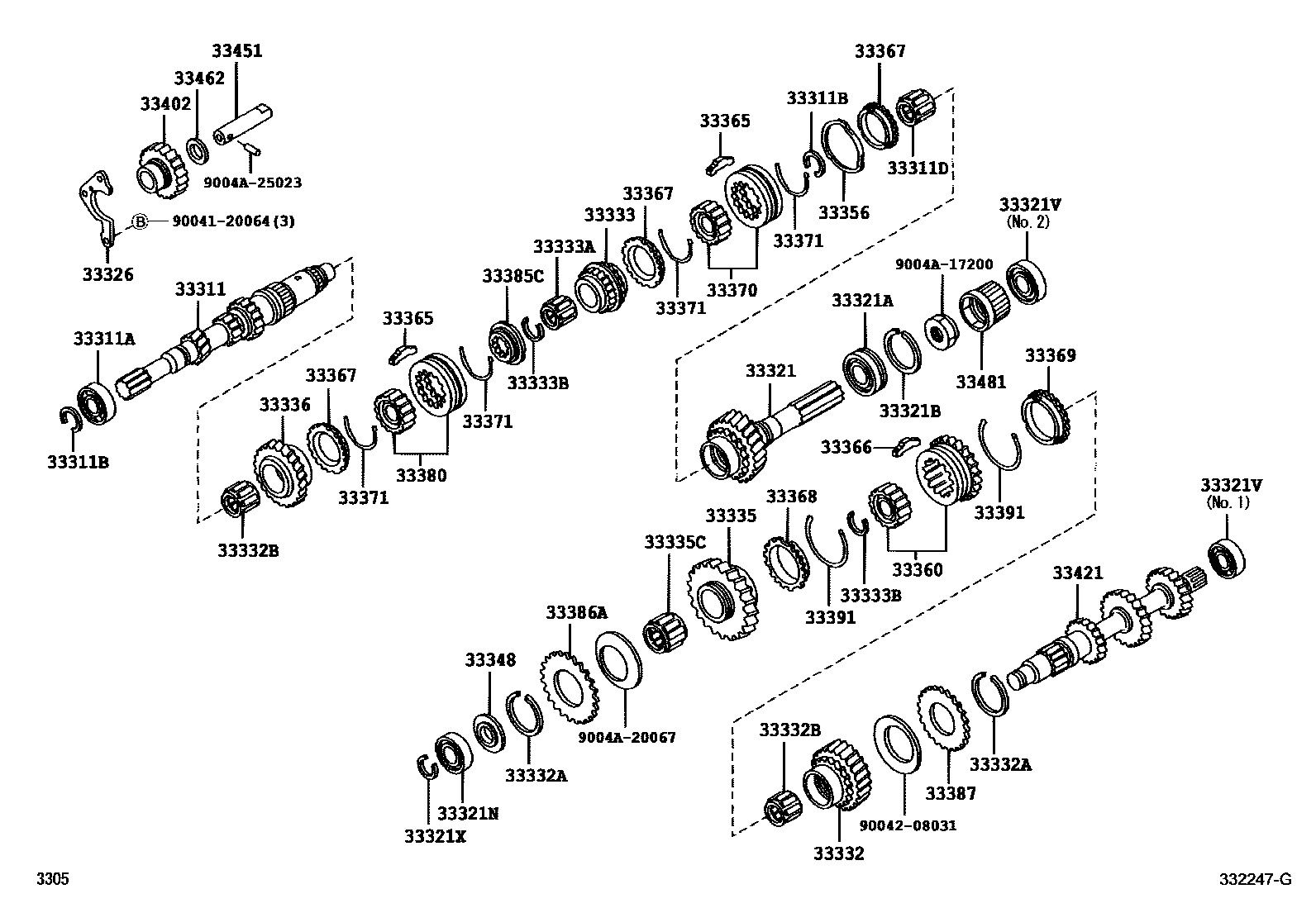

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
(L),NO.3
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.06,T=2.06
T=2.02
T=1.98
T=1.94
T=1.90
T=1.86
T=1.82,T=1.82
T=1.78
T=2.06,T=2.06
T=2.02,T=2.02
T=1.98,T=1.98
T=1.94,T=1.94
T=1.90,T=1.90
T=1.86,T=1.86
T=1.82,T=1.82
T=1.78; T=1.78,T=1.78
33311DBEARING, INPUT SHAFT
NTN
KOYO
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
(L),NO.3
33321VBEARING (FOR OUTPUT SHAFT CENTER)
NTN
NO.1
NO.2
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
T=2.06,T=2.07
T=2.02
T=1.98
T=1.94
T=1.90
T=1.86
T=1.82,T=1.82
T=1.78
T=2.06; T=2.06,T=2.07
T=2.02; T=2.02,T=2.03
T=1.98; T=1.98,T=1.99
T=1.94; T=1.94,T=1.95
T=1.90; T=1.90,T=1.91
T=1.86; T=1.86,T=1.87
T=1.82; T=1.82,T=1.82
T=1.78,T=1.79
33326PLATE, BEARING LOCK
33332ARING, SHAFT SNAP (FOR 2ND GEAR)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
NTN
KOYO
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
(L),NO.3
33333BRING, SHAFT SNAP (FOR 3RD REAR)
T=2.06
T=2.02
T=1.98
T=1.94
T=1.90
T=1.86
T=1.82
T=2.10
T=2.06
T=2.02
T=1.98
T=1.94
T=1.90
T=1.86
T=1.82
T=2.10
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
(L),NO.3
33348WASHER, 1ST GEAR THRUST
33360HUB ASSY, SYNCHRONIZER, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33370HUB ASSY, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33380HUB ASSY, SYNCHRONIZER, NO.3
33385CSTOPPER, HUB SLEEVE
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
(J),NO.2
33421GEAR, COUNTER
33451SHAFT, REVERSE IDLER GEAR
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6
N=6
N=6
N=6
9004120064
main90041-20064
9004208031
main90042-08031
9004A17200
main9004A-17200
9004A20067
main9004A-20067
9004A25023
main9004A-25023
45 parts on this diagram · 2 diagrams in section
