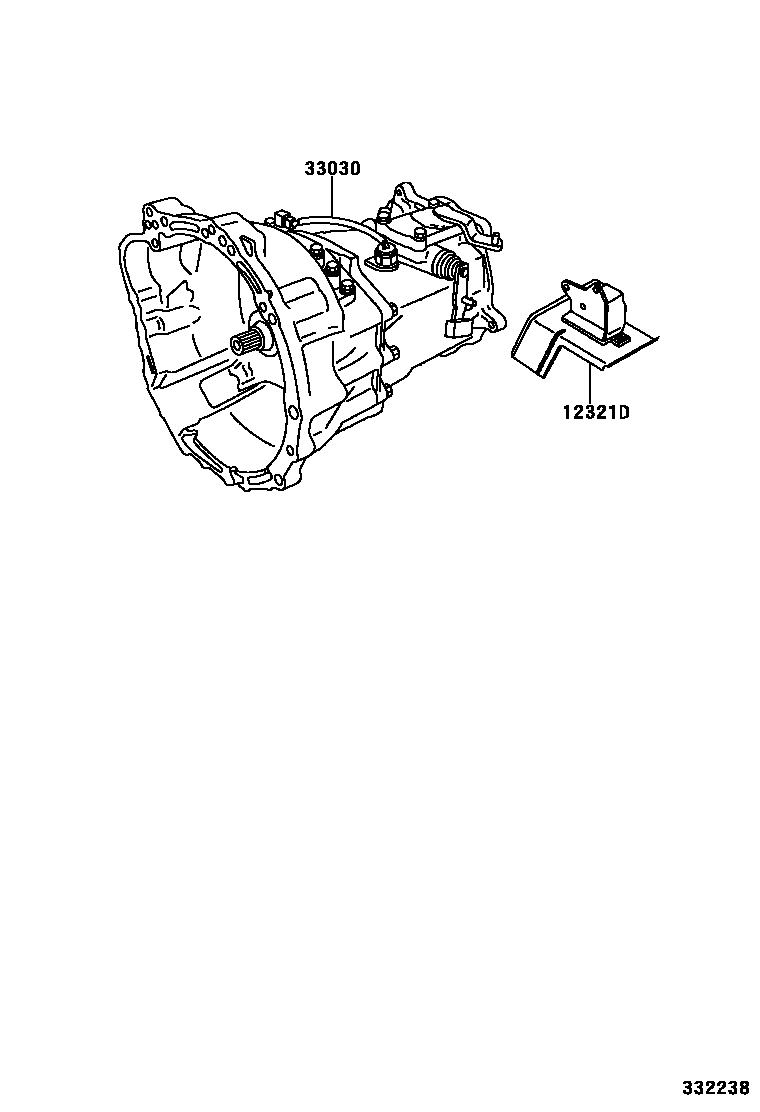

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

12321DBRACKET, ENGINE MOUNTING, REAR

main12321-BZ010iK3#..F601..5F200312-200608

main12321-BZ120iK3VE,3SZVE..F60#..5F200608

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-BZ020iF601..LVVT200312-200608

main33030-BZ030iF601..5F..WVVT200404-200608

main33030-BZ050iF601..GEN,IDN200608-200610

main33030-BZ060iF601..5F..(MA,SA)200608-200610

main33030-BZ070iF602..5F..(SA,TH)200608-200610

main33030-BZ080iF602..GEN200608-200610

main33030-BZ230iF601..5F..(GEN,IDN)200610

main33030-BZ240iF601..5F..(MA,PHL,SA)200610

main33030-BZ250iF602..5F..(PHL,SA,TH)200610

main33030-BZ260iF602..5F..(GEN,IDN)200610

main33030-BZ270iF602..5F..MXC200610

2 parts on this diagram · 1 diagram in section
