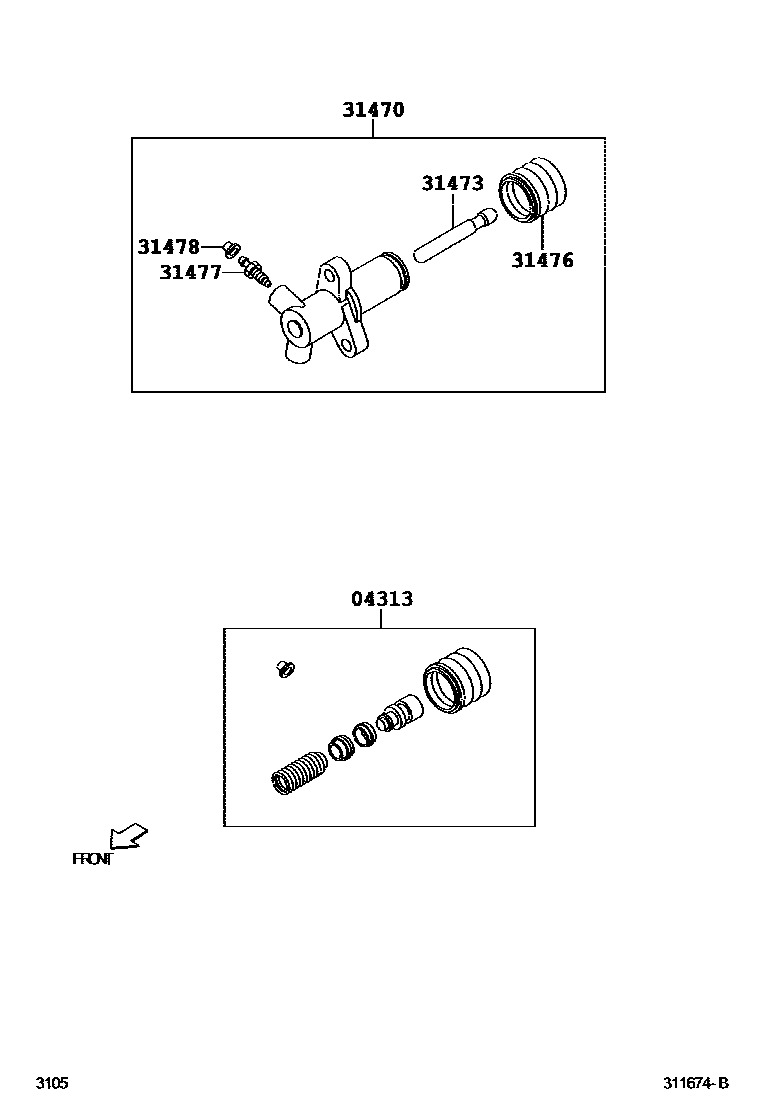

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-14030iF602..5F200608

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-B0010iF602..5F200608

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60170iF602..5F200608

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iF602..5F200608

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iF602..5F200608

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iF602..5F200608

6 parts on this diagram · 1 diagram in section
