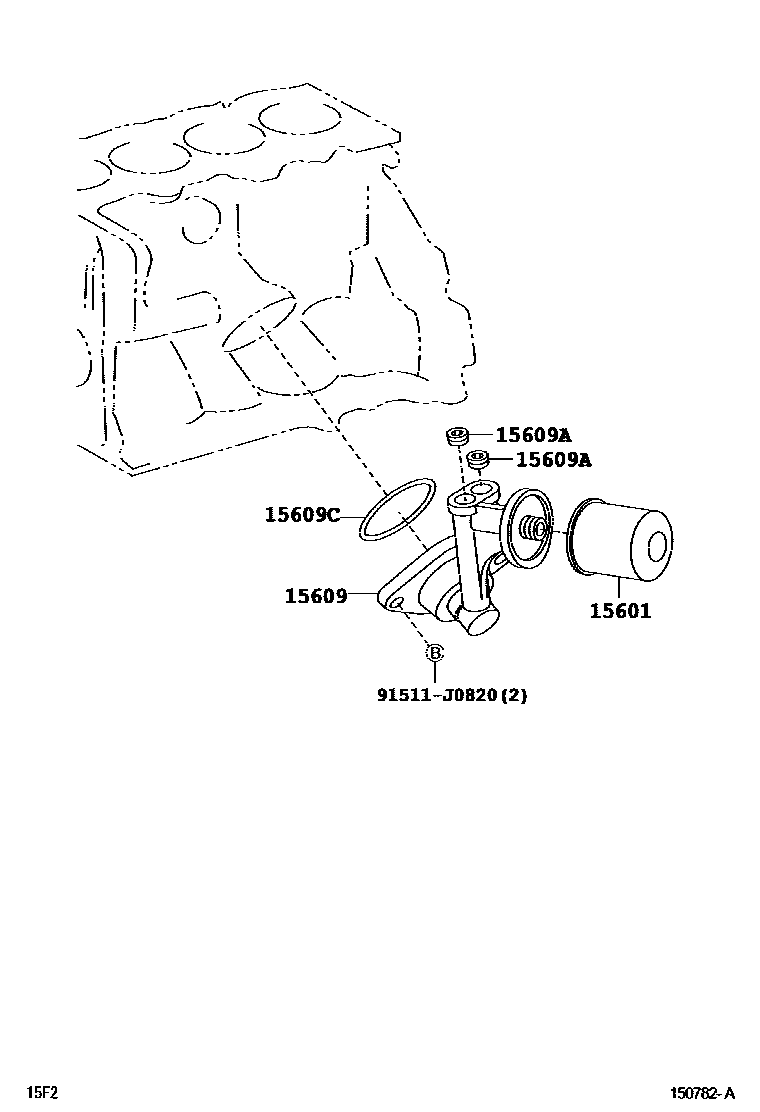

OIL FILTER

0001 1 0002 1

15601FILTER SUB-ASSY, OIL

main15601-BZ010iK3#..F601..BRU,IDN,TH200312-200608

main15601-BZ070iK3VE..F601..MA200410-200608

15609BRACKET SUB-ASSY, OIL FILTER

main15671-BZ010i3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA200608

15609APLUG, TAPER SCREW(FOR OIL FILTER BRACKET)

main90043-44019×2iK3#..F601200312-200608

15609CGASKET(FOR OIL FILTER BRACKET UNION)

main9004A-30011iK3#..F601200312-200608

91511J0820

main91511-J0820

5 parts on this diagram · 2 diagrams in section
