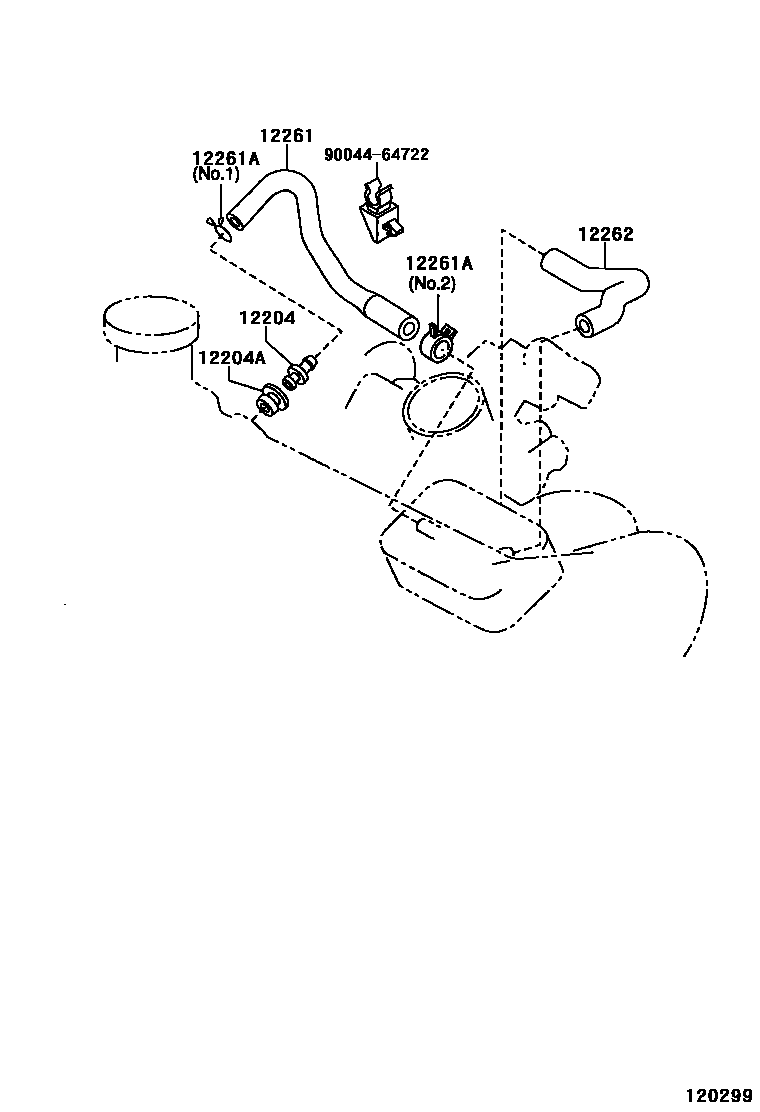

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-97401iK3VE..F601..E200312-200911

12204AGROMMET(FOR VENTILATION SYSTEM)

main90044-80655iK3VE..F601200511-200608

main9004A-48040i3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA200608-200911

main90480-18001iK3VE..F601..E200312-200608

12261HOSE, VENTILATION

main12261-B1010i3SZVE..F602..MA;K3VE..F601..5F..MA200608-201007

main12261-BZ020iK3DE..F601;K3VE..F601..G,GL,LIMD,S200312-200608

main12261-BZ140iK3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH201007

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001iK3VE..F601..E200312-200911

NO.1

main90467-18003i3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA200312-200911

NO.2

12262HOSE, VENTILATION, NO.2

main12262-BZ010iK3VE..F601..4AT200312-200911

9004464722

main90044-64722

6 parts on this diagram · 2 diagrams in section
