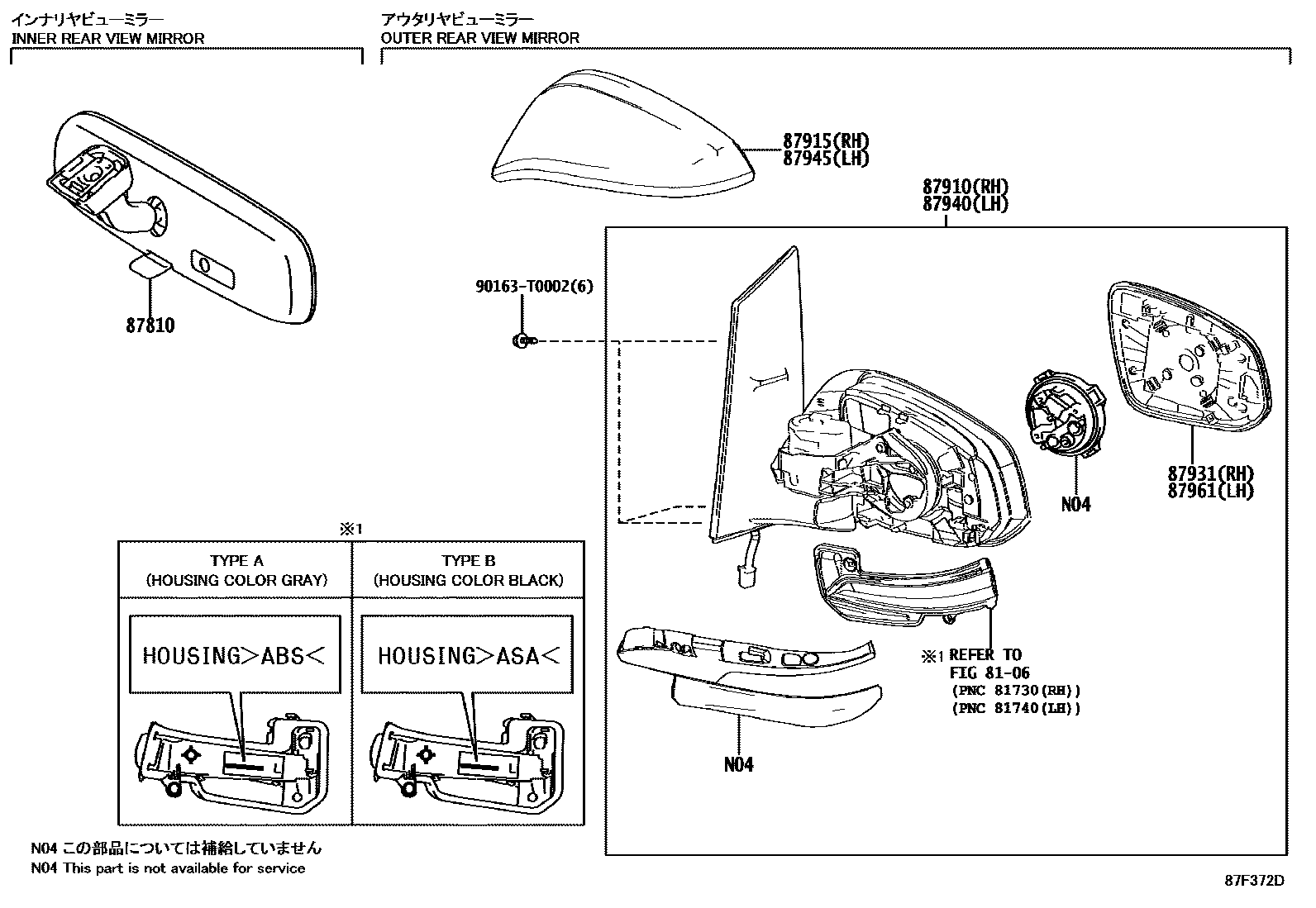

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
PNC 81730=TYPE A
PNC 81730=TYPE B
NO PAINT REQ.,PNC 81730=TYPE A
PNC 81730=TYPE B
NO PAINT REQ.,PNC 81730=TYPE A,#
main87910-0KB61supersedes 87910-0KB71iGUN14#,TGN140..IDNP..(20G,24V,28G,28V)..(GEN,PHL)201708-202008
PNC 81730=TYPE B,#
NO PAINT REQ.,PNC 81730=TYPE A,#
PNC 81730=TYPE B,#
NO PAINT REQ.,PNC 81730=TYPE A
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE(*RCM),PNC 81730=TYPE B; NO PAINT REQ.,PNC 81730=TYPE B
NO PAINT REQ.,PNC 81730=TYPE A
PNC 81730=TYPE B
NO PAINT REQ.,PNC 81730=TYPE A
PNC 81730=TYPE B
NO PAINT REQ.,PNC 81730=TYPE A
NO PAINT REQ.,PNC 81730=TYPE B
NO PAINT REQ.,PNC 81730=TYPE A
PNC 81730=TYPE B
NO PAINT REQ.,PNC 81730=TYPE A
PNC 81730=TYPE B
87915COVER, OUTER MIRROR, RH
PLATED
main87915-0K924iTGN140..20Q;GUN142..RHD..IDNP..(24V,N); TGN140..PHLP..N;TGN140..20E..VN;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(IDN,PHL);TGN140..IDNP..(20E,20G,N)..(IDN,PHL)202009
PAINT REQ.; PAINT REQ.,SEAT COVER MATERIAL-FULL HI(FOR MPV)
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
PNC 81740=TYPE A
NO PAINT REQ.,PNC 81740=TYPE B
NO PAINT REQ.,PNC 81740=TYPE A
PNC 81740=TYPE B
NO PAINT REQ.,PNC 81740=TYPE A,#
main87940-0KA21supersedes 87940-0KA31iTGN140..LHD..6FC..(20,20V);GUN143,TGN141..(27V,28,28V)..(PHL,VN)202009
NO PAINT REQ.,PNC 81740=TYPE B,#
NO PAINT REQ.,PNC 81740=TYPE A,#
main87940-0KA31iGUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..LHD..(IDNP,VNP)..(20E,N)202009
NO PAINT REQ.,PNC 81740=TYPE B,#
NO PAINT REQ.,PNC 81740=TYPE A
PNC 81740=TYPE B
NO PAINT REQ.,PNC 81740=TYPE A
PNC 81740=TYPE B
NO PAINT REQ.,PNC 81740=TYPE A
PNC 81740=TYPE B
NO PAINT REQ.,PNC 81740=TYPE A
PNC 81740=TYPE B
NO PAINT REQ.,PNC 81740=TYPE A
NO PAINT REQ.,PNC 81740=TYPE B
NO PAINT REQ.,PNC 81740=TYPE A
PNC 81740=TYPE B
87945COVER, OUTER MIRROR, LH
PLATED
main87945-0K570iGUN142..5F..24Z;TGN140..20V..VN;GUN142,TGN141..(24V,27V,N)..(IDN,TH,VN);GUN143,TGN140..(20,20Q,28,28V)..(IDN,PHL)202009
PLATED
main87945-0K924iGUN143..TH; TGN140..TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA); TGN141..G202009-202304
PAINT REQ.; PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE(*RCM); PAINT REQ.,SEAT COVER MATERIAL-FULL HI(FOR MPV)
PAINT REQ.; PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(SIDE TURN LAMP) & W(FOOT LAMP)
87961MIRROR OUTER, LH
90163T0002
main90163-T0002
9 parts on this diagram · 1 diagram in section
