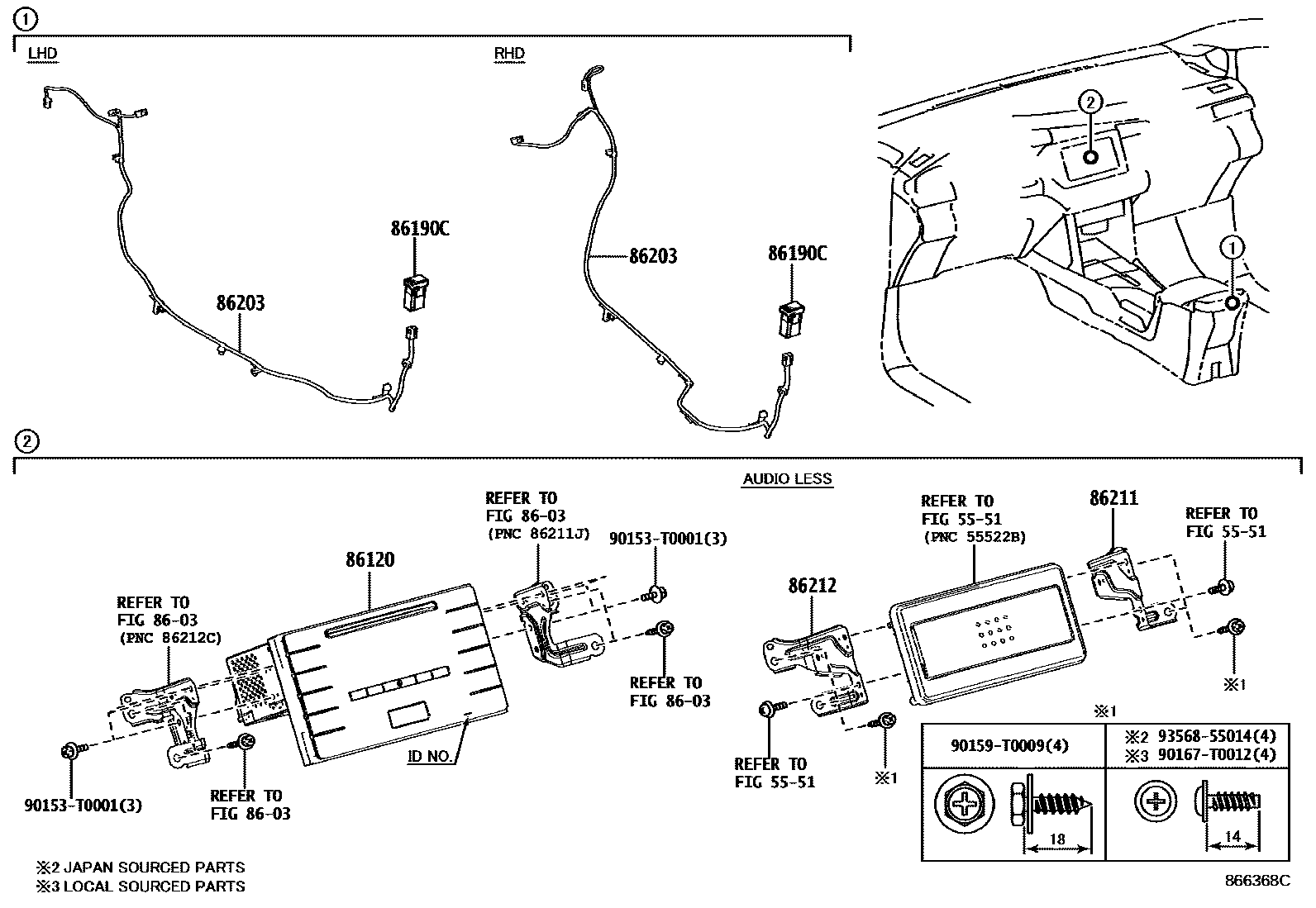

RADIO RECEIVER & AMPLIFIER & CONDENSER
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
8603NAVIGATION & FRONT MONITOR DISPLAY
86120RECEIVER ASSY, RADIO
FUJITSU TEN,ID100443,AUDIO-AM/FM & CD & *BT
FUJITSU TEN,ID100444,AUDIO-AM/FM & CD & *BT
DENSO TEN,ID=100444,AUDIO-AM/FM & CD & *BT
FUJITSU TEN,ID100445,AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER
DENSO TEN,ID100445,AUDIO-AM/FM(10KHZ) & CD & *BT & 4SPEAKER
FUJITSU TEN,ID100556; FUJITSU TEN,ID100556,AUDIO-WITHOUT; FUJITSU TEN,ID100556,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
86190CADAPTER ASSY, STEREO JACK, NO.1
main86190-0K030iGUN14#,TGN141..(24,24V,24Z,27V,27Z,28Z)..(IND,SA); GUN142,TGN141..6FC..(24G,27G)..GCC; GUN142..5F..24G..IDN;TGN140..6FC..20G..IDN;GUN142,TGN140..(20Q,20V,24Q,24V)..IDN; GUN142..6FC..24V..IDN;GUN142,TGN141..6FC..(24G,27G)..GCC; TGN14#..20,27SR,27SRV201511-201707
AUDIO-*DA & CD & *BT (OSEANIA SPEC); AUDIO-*DA & DVD & *BT; AUDIO-*DA(10KHZ) & DVD & *BT; AUDIO-AVN & DVD & *BT
main86190-0K060iGUN142,TGN141..(20G,24V,G)..(GCC,GEN); GUN143,TGN140..(20G,28V)..(GCC,GEN); TGN141..6FC..LA202009-202011
AUDIO-*DA & *BT; AUDIO-*DA(10KHZ) & *BT
main86190-0K061iGUN142,TGN141..(20G,24V,G)..(GCC,GEN); GUN143,TGN140..(20G,28V)..(GCC,GEN); TGN141..6FC..LA202012-202309
AUDIO-*DA & *BT; AUDIO-*DA(10KHZ) & *BT
AUDIO-*DA & DVD & *BT; AUDIO-*DA(10KHZ) & DVD & *BT; AUDIO-AVN & DVD & *BT
86203WIRE, RADIO
AUDIO-*DA(10KHZ) & DVD & *BT
main86203-71240iGUN142,TGN141..LHD..(24V,G); TGN140..20V..VN;GUN143,TGN140..(20G,28V)..(GCC,GEN); TGN141..6FC..LA202009-202110
AUDIO-*DA & *BT; AUDIO-*DA(10KHZ) & *BT
AUDIO-*DA(10KHZ) & DVD & *BT
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
90153T0001
main90153-T0001
90159T0009
main90159-T0009
90167T0012
main90167-T0012
9356855014
main93568-55014
11 parts on this diagram · 1 diagram in section
