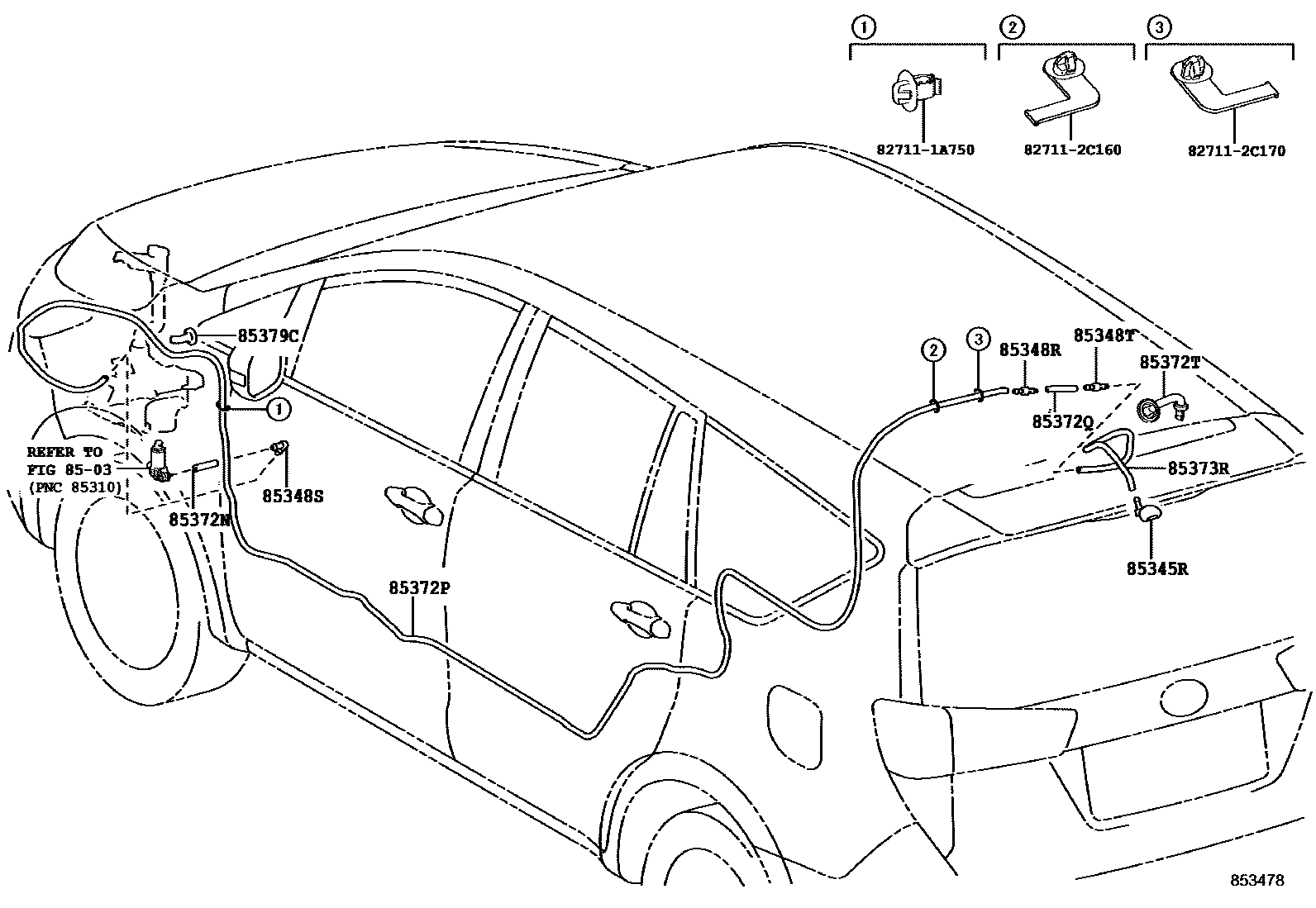

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-0K030iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iGUN142..TH201511-201707

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-10260iGUN142..TH201511-201707

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33261iGUN142..TH201511-201707

L=40

main90069-46081iGUN14#..IND201604-202001

L=300

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-59146iGUN142..TH201511-201707

L=5915

main90069-46086iGUN142..5F..IND202011

L=205

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90068-33261iTGN140..5F..MA201511-201905

L=40

main90069-46081iGUN14#..IND201604-202001

L=300

85372TGROMMET, WASHER

main85373-0K010iGUN14#..IND201511-202001

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-59147iGUN142..TH201511-201707

L=315

85379CGROMMET, REAR WASHER HOSE NO.1

main85379-16180iGUN142..TH201511-201707

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C160

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

14 parts on this diagram · 1 diagram in section
