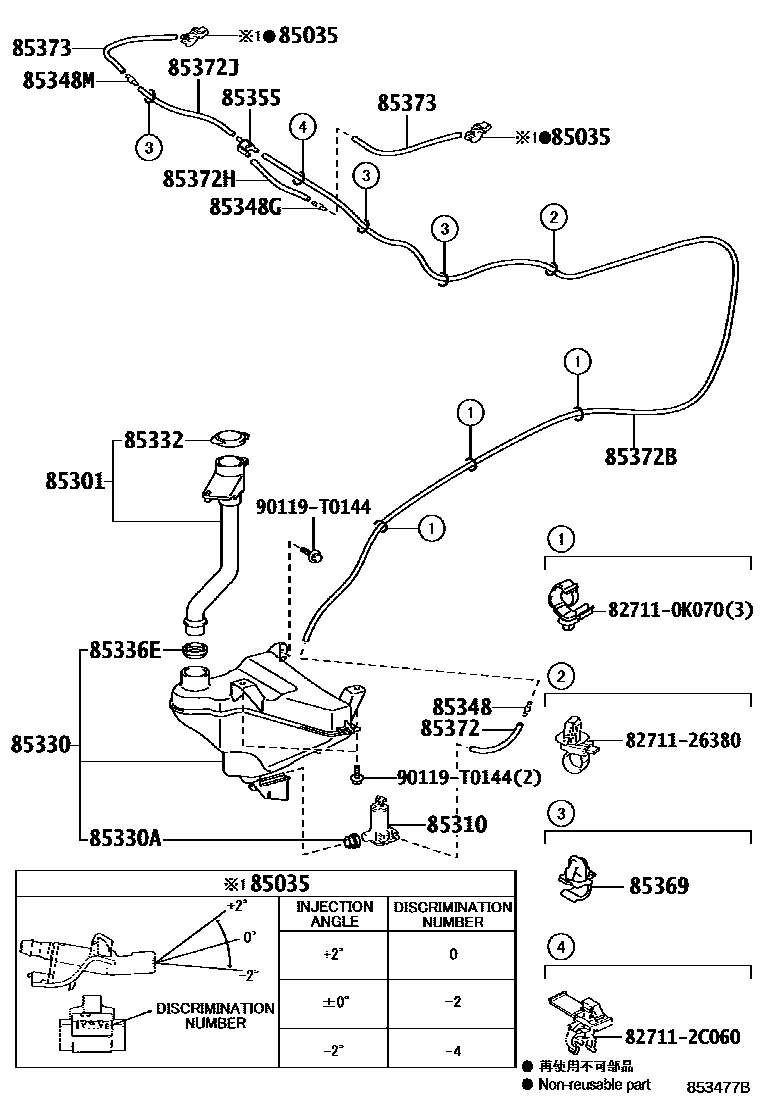

WINDSHIELD WASHER

0001 1 0004 1 0005 1

85035NOZZLE SUB-ASSY, WASHER

main85381-0K040×2iTGN140..(20,20G,20V)..VN201511-202009

ANGLE 0

main85381-0K050×2iTGN140..6FC..MA201511-202012

ANGLE -2

main85381-0K060×2iGUN142..5F..24V..IDN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142..5F..(24G,24Z,G);TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN143..(28,28E,28V,N)..PHL;GUN142,TGN141..6FC..(IDN,MA,TH,VN)202009

ANGLE +2

85301INLET SUB-ASSY, WASHER

main85301-0K030iTGN140..(20,20G,20V)..VN201511-202009

main85301-0K031iTGN140..20E..VN;TGN140..IDNP..(IDN,PHL);GUN142,TGN141..IDN,TH,VN;TGN140..(PHLP,VNP)..(20V,N);GUN143..(28,28E,28V,N)..PHL;TGN140..PHLP..6FC..(20,20E)202009

main85301-0K100iGUN142..5F..IND202011

main85301-0K160iTGN140..5F..MA201611-201905

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K050iGUN14#,TGN14#..IDNP,INDP,PHLP,VNP201511-201701

main85330-0K051iGUN142..TH201702-201707

main85330-0K052iTGN140..20E..VN;GUN14#,TGN14#..IDNP202007-202008

85330JAR ASSY, WINDSHIELD WASHER

main85315-0K230iTGN140..20E..VN;TGN140..IDNP..(IDN,PHL);GUN142,TGN141..IDN,TH,VN;TGN140..(PHLP,VNP)..(20V,N);GUN143..(28,28E,28V,N)..PHL;TGN140..PHLP..6FC..(20,20E)202009

main85315-0K240iGUN142..5F..IND202011

main85315-0K460iGUN142,TGN140..MA202101

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iTGN141..27G,27Z;GUN142..(6F,6FC)..(24,24G,24Z)..IND202009-202301

85332CAP, WINDSHIELD WASHER JAR

main85316-0K100iGUN142..5F..IND202011

main85316-16070iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iTGN140..6FC..MA201511-202012

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iTGN140..6FC..MA201511-202012

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iTGN141..27G,27Z;GUN142..(6F,6FC)..(24,24G,24Z)..IND202009-202301

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iTGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN140..(20E,24G,24Q,24V)..(GEN,IDN,VN)201511-202008

85355VALVE, WINDSHIELD WASHER HOSE

main85321-0A010iGUN143,TGN14#..MA,PHL,VN202203

(L)

main85321-28020iTGN140..GEN;TGN140..20E..VN;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);TGN140..(IDNP,MAP)..(20,20E,20V,N)..(MA,PHL);GUN14#,TGN141..(20G,24G,24V,27,28,28E,28V,G,N,SRV)..(GCC,GEN,LA,MA,PHL)202009-202203

(J)

main85348-12250iTGN140..IDN;GUN142..IDN,TH202009

85369CLAMP

main85371-0K020×3iGUN14#,TGN141..IND201604-202010

main85371-12040×3iTGN140..20..GEN;TGN141..5F..27..GCC;TGN140..(MAP,PHLP)..5F;GUN142..(GCC,SA,TH)..DCR;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN143,TGN141..5F..(24,27G,27SR,28,28G)..(GCC,GEN,LA)201511

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33260iGUN14#,TGN14#..IDNP,MAP,PHLP,VNP201511-201704

L=300

main90068-33261iTGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN140..(20E,24G,24Q,24V)..(GEN,IDN,VN)201704-202008

L=40

main90069-46081iGUN14#,TGN141..IND201604-202010

L=300

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59145iGUN14#,TGN14#..IDNP,MAP,PHLP,VNP201511-201704

L=1915

main90068-59177iTGN140..20..GEN;TGN141..5F..27..GCC;TGN140..(MAP,PHLP)..5F;GUN142..(GCC,SA,TH)..DCR;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN143,TGN141..5F..(24,27G,27SR,28,28G)..(GCC,GEN,LA)201704

L=2175

main90069-46088iGUN14#,TGN141..IND201604-202010

L=1915

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-59143iTGN140..6FC..MA201511-202012

L=100

main90069-46087iGUN142..5F..IND202011

L=100

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90068-59144iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

L=205

main90069-46086iGUN14#,TGN141..IND201604-202010

L=205

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33256×2iTGN140..20..GEN;TGN141..5F..27..GCC;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN142..(GCC,IND,SA,TH)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N);GUN143,TGN141..5F..(24,27G,27SR,28,28G)..(GCC,GEN,LA)201511

L=235

main90068-33261×2iTGN140..IDN;GUN142..IDN,TH202009

L=40

827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K070

8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26380

827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C060

90119T0144

main90119-T0144
