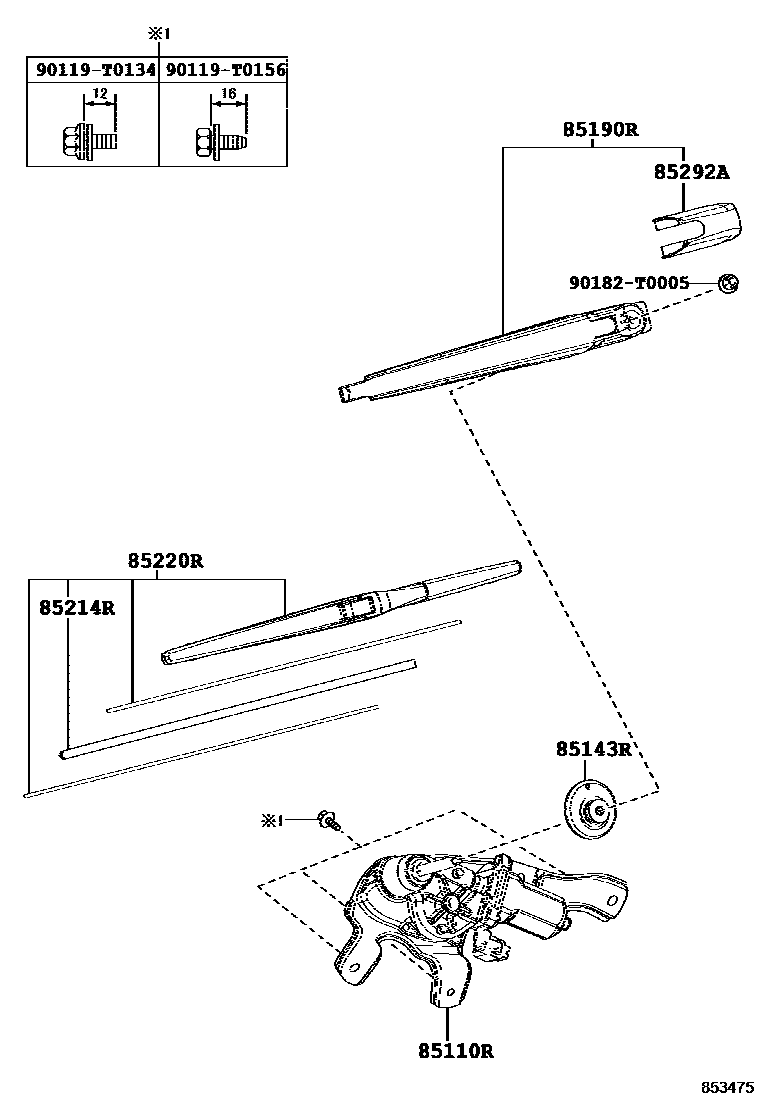

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0K050iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main85130-0K060iGUN142..5F..IND202011

85143RGROMMET, REAR WIPER MOTOR

main85143-0K030iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

main85143-0K040iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

85190RARM ASSY, REAR WIPER

main85241-0K040iGUN142..TH201511-201707

main85241-0K050iGUN142..5F..IND202011

85214RRUBBER, REAR WIPER

main85214-42040iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

85220RBLADE ASSY, REAR WIPER

main85242-0K040iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..IDN,MA,TH,VN;GUN143..(28,28E,28V,N)..PHL202009

main85242-0K050iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

85292ACAP, REAR WIPER ARM HEAD

main85292-0K060iTGN140..5F..MA201511-201905

main85292-0K070iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

90119T0134

main90119-T0134

90119T0156

main90119-T0156

90182T0005

main90182-T0005

9 parts on this diagram · 1 diagram in section
