ABS & VSC

89542SENSOR, SPEED, FRONT RH

main89542-0K040iGUN14#..IND; GUN142..G,N201604-202001

SRS AIR BAG-WITHOUT

main89542-0K050iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..IDN,MA,TH,VN;GUN143..(28,28E,28V,N)..PHL202009

89543SENSOR, SPEED, FRONT LH

main89543-0K040iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main89543-0K050iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

89545SENSOR, SPEED, REAR RH

main89545-0K210iGUN142..5F..IND202011

main89545-0K320iTGN140..VN201511-202009

89546SENSOR, SPEED, REAR LH

main89546-0K170iGUN14#..IND; GUN142..G,N201604-202001

SRS AIR BAG-WITHOUT

main89546-0K320iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202102

90105T0053

main90105-T0053

90105T0122

main90105-T0122

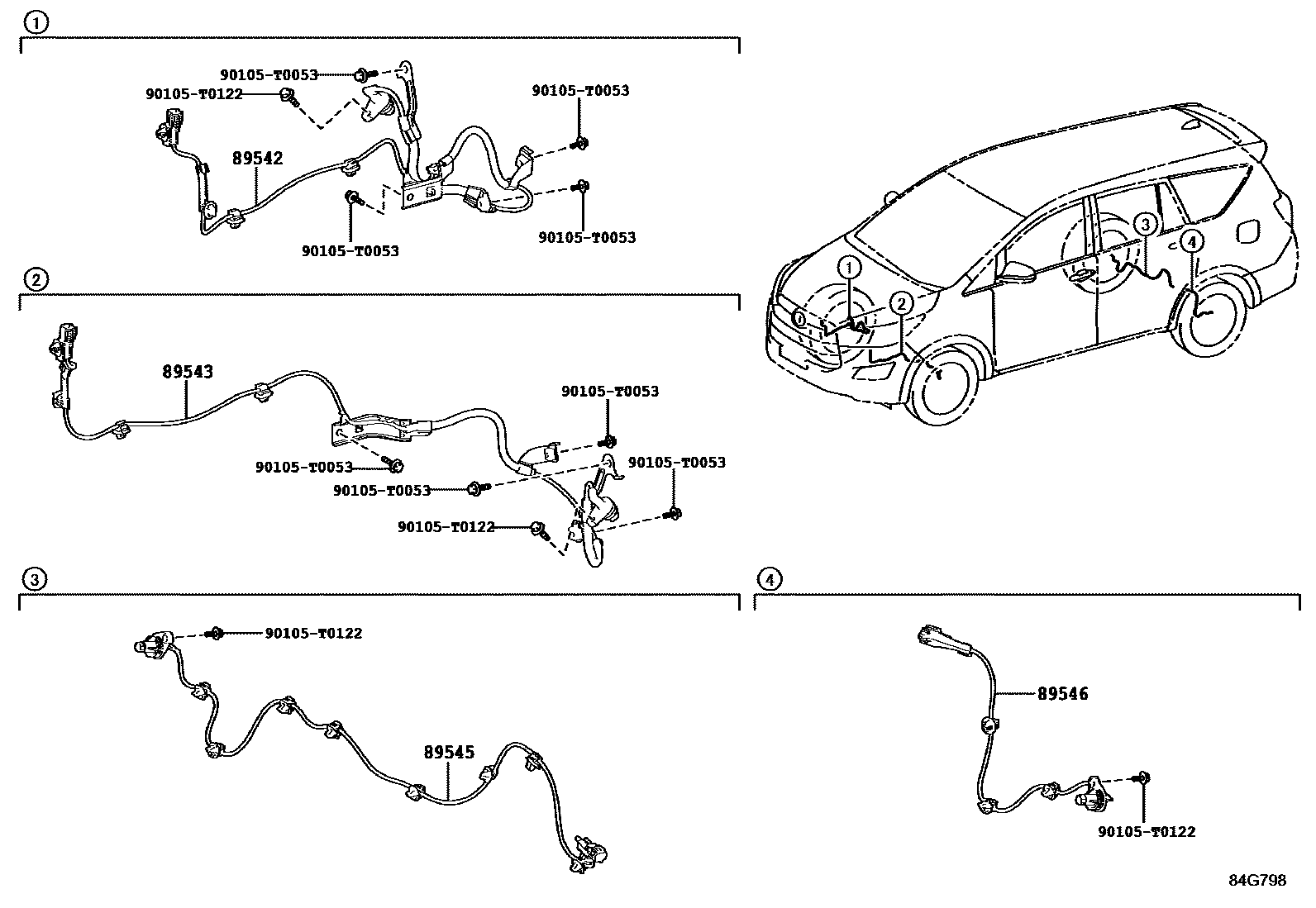

6 parts on this diagram · 1 diagram in section
