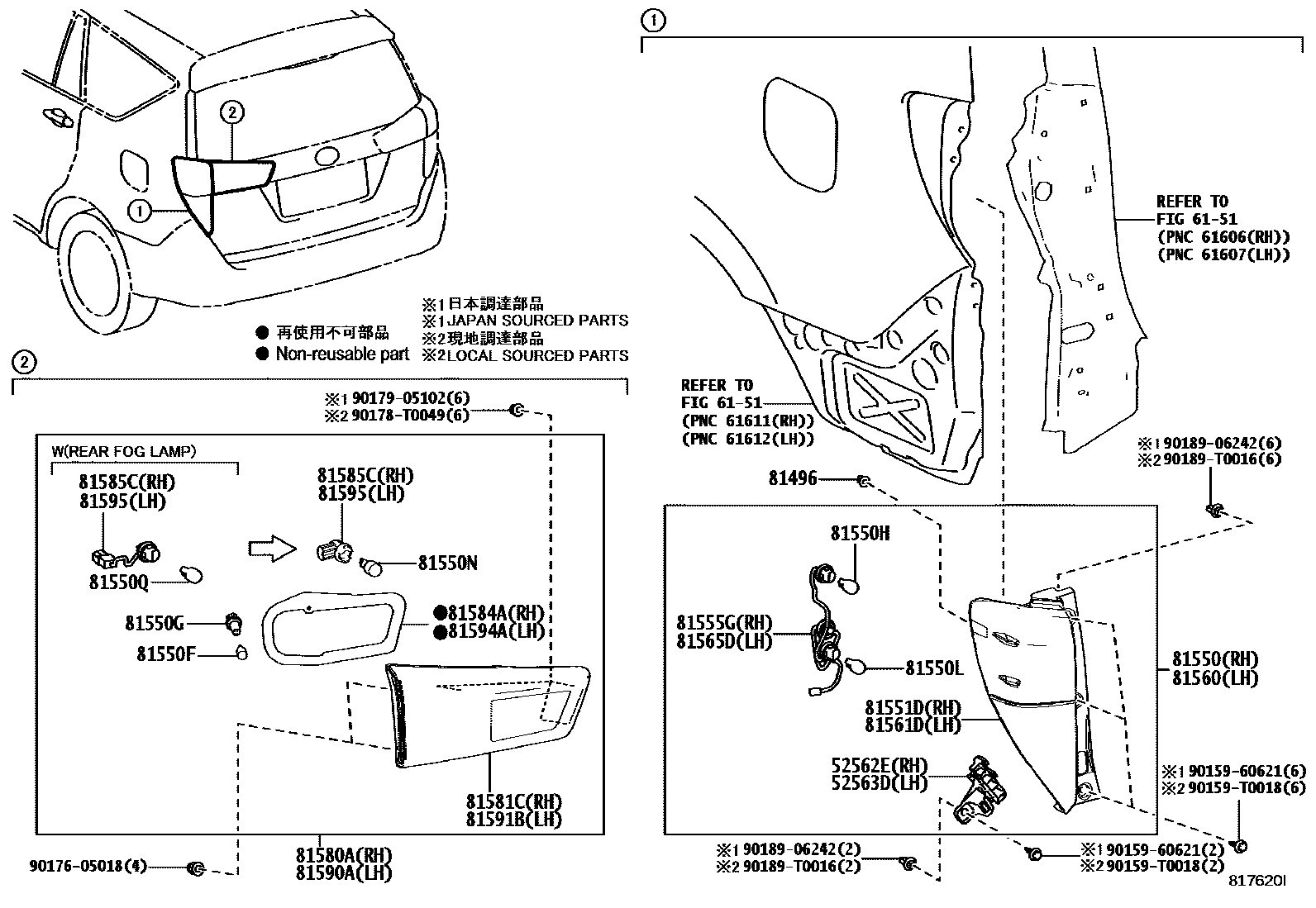

REAR COMBINATION LAMP

0001 1 0004 1 0005 1 0008 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-0K070iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main52562-0K080iGUN142..5F..IND202011

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-0K010iTGN140..5F..MA201511-201905

main52563-0K020iGUN142..5F..IND202011

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040×2iGUN14#..IND201707-202001

(L)

main81496-52020×2iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201707-202102

(J)

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K240iTGN140..6FC..MA201511-202012

main81550-0K250iGUN142..5F..IND202011

main81550-0K640iGUN142,TGN140..MA202101

MADE IN MALAYSIA

main81550-0K630iTGN140..20Q202009

WITH(MLM PACKAGE(TMMIN VENTURER))

main81550-0K650iGUN142,TGN140..(20V,24G)..MA202101

WITH(MLM PACKAGE),MADE IN MALAYSIA

81550FBULB, TAILLAMP

main90981-11067×2iTGN140..(20E,20G,20V)..VN201511-202009

12V 5W

main90981-11069×2iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202011-202301

12V 5W

81550GSOCKET, TAILLAMP

main90075-60077×2iGUN142..TH201511-201707

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iGUN142,TGN140..MA202101

12V 21W,AMBER

main90981-15021×2iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059supersedes 90981-11059iGUN142..TH201511-201707

12V 16W

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202009-202301

12V 21W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K240iGUN142..TH201511-201707

main81551-0K250iGUN14#..IND201604-202001

main81551-0K630iTGN140..GEN;GUN14#..(24V,28V)..(GEN,TH)202009-202304

WITH(MLM PACKAGE(TMMIN VENTURER))

81555GCORD, REAR COMBINATION LAMP, RH

main81555-0K240iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main81555-0K250iGUN14#..IND201604-202001

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K240iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main81560-0K250iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main81560-0K600iGUN142,TGN140..MA202101

MADE IN MALAYSIA

main81560-0K590iTGN140..GEN;GUN14#..(24V,28V)..(GEN,TH)202009-202304

WITH(MLM PACKAGE(TMMIN VENTURER))

main81560-0K610iGUN142,TGN140..(20V,24G)..MA202101

WITH(MLM PACKAGE),MADE IN MALAYSIA

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K240iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main81561-0K250iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main81561-0K590iTGN140..GEN;GUN14#..(24V,28V)..(GEN,TH)202009-202304

WITH(MLM PACKAGE(TMMIN VENTURER))

81565DCORD, REAR COMBINATION LAMP, LH

main81555-0K240iTGN140..VN201511-202009

main81555-0K250iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

81580ALAMP ASSY, REAR

main81580-0K050iTGN140..20E..VN;TGN140..IDNP..(IDN,PHL);TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN14#,TGN141..(24G,24V,27V,28,28E,28V,N)..(IDN,PHL,VN)202009

main81580-0K060iGUN142..G202011

main81580-0K070iGUN142,TGN141..(24G,27G)..IND202011-202110

main81580-0K120iGUN142..(24V,24Z)..DCRL201511-202005

main81580-0K240iGUN142..5F..24Z202011

main81580-0K280iGUN142,TGN140..MA202101

MADE IN MALAYSIA

main81580-0K260iTGN140..20Q202009

WITH(MLM PACKAGE(TMMIN VENTURER))

main81580-0K270iGUN14#..TH202009-202304

WITH(MLM PACKAGE(TMMIN VENTURER))

main81580-0K290iGUN142,TGN140..(20V,24G)..MA202101

WITH(MLM PACKAGE),MADE IN MALAYSIA

81581CLENS AND BODY, REAR LAMP, RH

main81581-0K050iTGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL)201511-202008

main81581-0K060iGUN142,TGN141..(24G,27G,G,N)..IND..(DCRL,HTWC)201604-202010

main81581-0K070iGUN142,TGN141..(24G,27G)..IND202011-202110

main81581-0K120iTGN141..27V,27Z201809-202005

main81581-0K240iGUN142,TGN141..(24V,24Z,27V,27Z)..IND202005-202010

main81581-0K260iTGN140..20Q202009

WITH(MLM PACKAGE(TMMIN VENTURER))

main81581-0K270iGUN143..TH202009-202304

WITH(MLM PACKAGE(TMMIN VENTURER))

81584AGASKET, REAR LAMP RH

main81584-0K050iTGN140..6FC..MA201511-202012

main81584-0K060iTGN141..27G;GUN142..6FC..24G..IND202110-202301

main81584-0K070iGUN142,TGN141..(24G,27G)..IND202011-202110

main81584-0K240iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202011-202301

81585CSOCKET & WIRE, REAR LAMP, RH

main81275-12501iGUN14#,TGN14#..GCC,GEN,LA202009-202304

main81585-0K120iGUN142..MA,TH;TGN140..(20E,20V)..MA202009

main81585-0K270iGUN143..TH202009-202304

WITH(MLM PACKAGE(TMMIN VENTURER))

81590ALAMP ASSY, REAR, LH

main81590-0K050iTGN140..20E..VN;TGN140..IDNP..(IDN,PHL);GUN142,TGN141..IDN,TH,VN;TGN140..(PHLP,VNP)..(20V,N);GUN143..(28,28E,28V,N)..PHL;TGN140..PHLP..6FC..(20,20E)202009

main81590-0K060iGUN142..5F..24G..IND202110

main81590-0K070iGUN142,TGN141..(24G,27G)..IND202011-202110

main81590-0K130supersedes 81590-0K050iTGN141..6FC..LA202009-202304

REAR FOG LAMP-WITH

main81590-0K270iGUN142,TGN140..MA202101

MADE IN MALAYSIA

main81590-0K260iTGN140..GEN;GUN14#..(24V,28V)..(GEN,TH)202009-202304

WITH(MLM PACKAGE(TMMIN VENTURER))

main81590-0K280iGUN142,TGN140..(20V,24G)..MA202101

WITH(MLM PACKAGE),MADE IN MALAYSIA

81591BLENS AND BODY, REAR LAMP, LH

main81591-0K050iGUN142..TH201511-201707

main81591-0K060iGUN142..5F..24G..IND202110

main81591-0K070iGUN142,TGN141..(24V,24Z,27V,27Z)..IND202005-202010

main81591-0K130supersedes 81591-0K050iGUN143,TGN141..6FC..GCC201708-202008

main81591-0K260iTGN140..20Q202009

WITH(MLM PACKAGE(TMMIN VENTURER))

81594AGASKET, REAR LAMP LH

main81584-0K060iGUN14#..(24G,28G,G,N)..IND201604-202001

main81584-0K070iGUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND201604-201809

main81594-0K050iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

81595SOCKET & WIRE, REAR LAMP, LH

main81275-12501iGUN142..TH201511-201707

9015960621

main90159-60621

90159T0018

main90159-T0018

9017605018

main90176-05018

90178T0049

main90178-T0049

9017905102

main90179-05102

9018906242

main90189-06242

90189T0016

main90189-T0016

31 parts on this diagram · 4 diagrams in section
