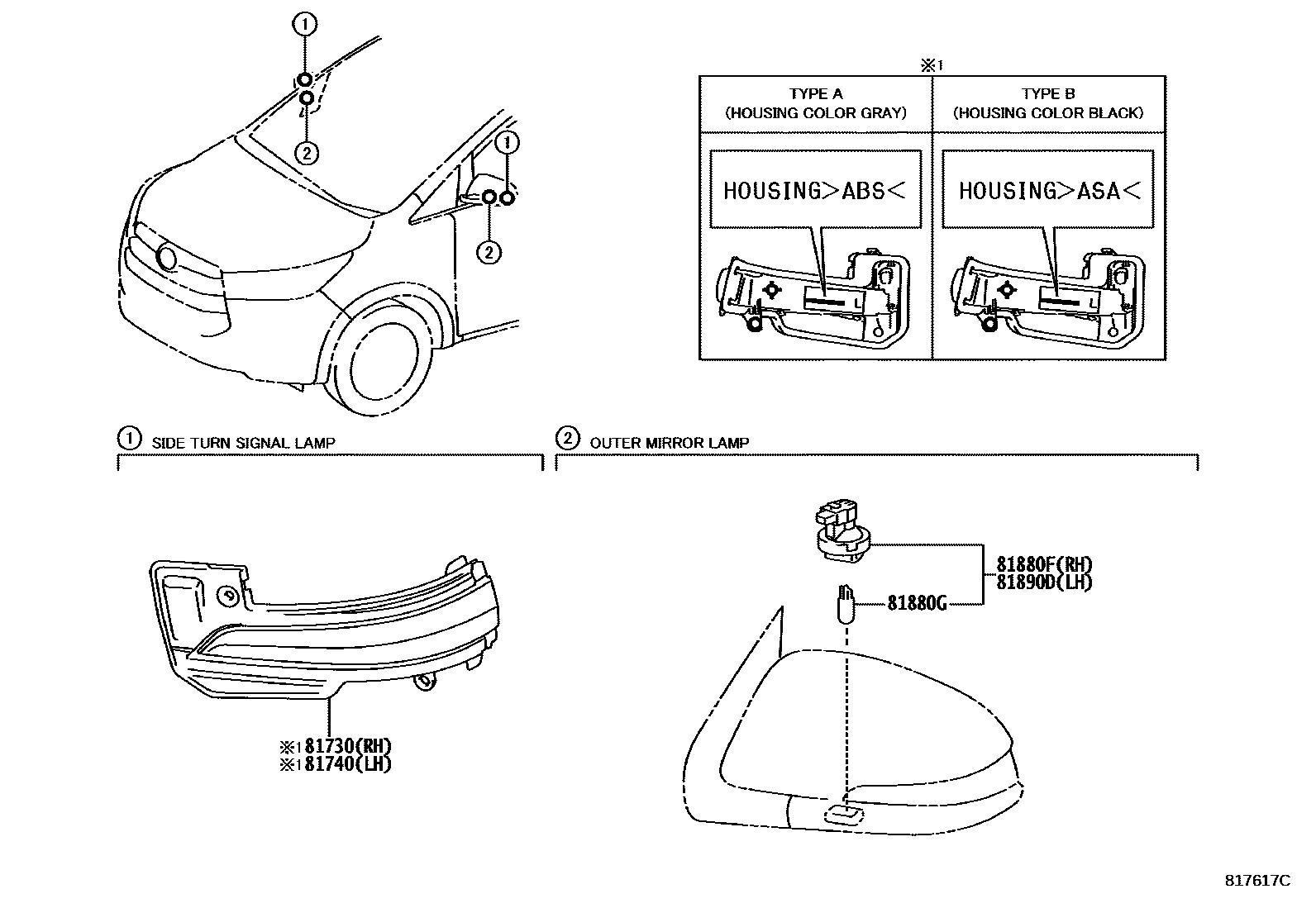

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-0K020iTGN140..6FC..MA201709-202012

TYPE B:REFER ILLUST.

main81730-0K070iGUN142..TH201511-201707

TYPE A:REFER ILLUST.

main81730-0K080iTGN140..MA201611-201709

TYPE A:REFER ILLUST.

main81730-0K090iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201709

TYPE B:REFER ILLUST.

main81730-0K100iGUN14#,TGN141..IND201604-201709

TYPE A:REFER ILLUST.

main81730-0K120iGUN142,TGN141..IND..(DCRL,HTWC)201709-202010

TYPE B:REFER ILLUST.

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-0K020iGUN142,TGN140..MA202101

TYPE B:REFER ILLUST.

main81740-0K030iTGN140..VN201511-201711

TYPE A:REFER ILLUST.

main81740-0K040iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201708

TYPE B:REFER ILLUST.

main81740-0K050iGUN142,TGN141..IND..(DCRL,HTWC)201709-202010

TYPE B:REFER ILLUST.

main81740-0K080iTGN140..MA201611-201709

TYPE A:REFER ILLUST.

main81740-0K100iGUN14#,TGN141..IND201604-201709

TYPE A:REFER ILLUST.

81880FLAMP ASSY, OUTER MIRROR, RH

main81880-0K010iGUN142..TH201511-201707

81880GBULB, OUTER MIRROR LAMP ASSY

main99132-12050×2iGUN142..TH201511-201707

12V 5W

81890DLAMP ASSY, OUTER MIRROR, LH

main81890-0K010iGUN142..TH201511-201707

5 parts on this diagram · 1 diagram in section
