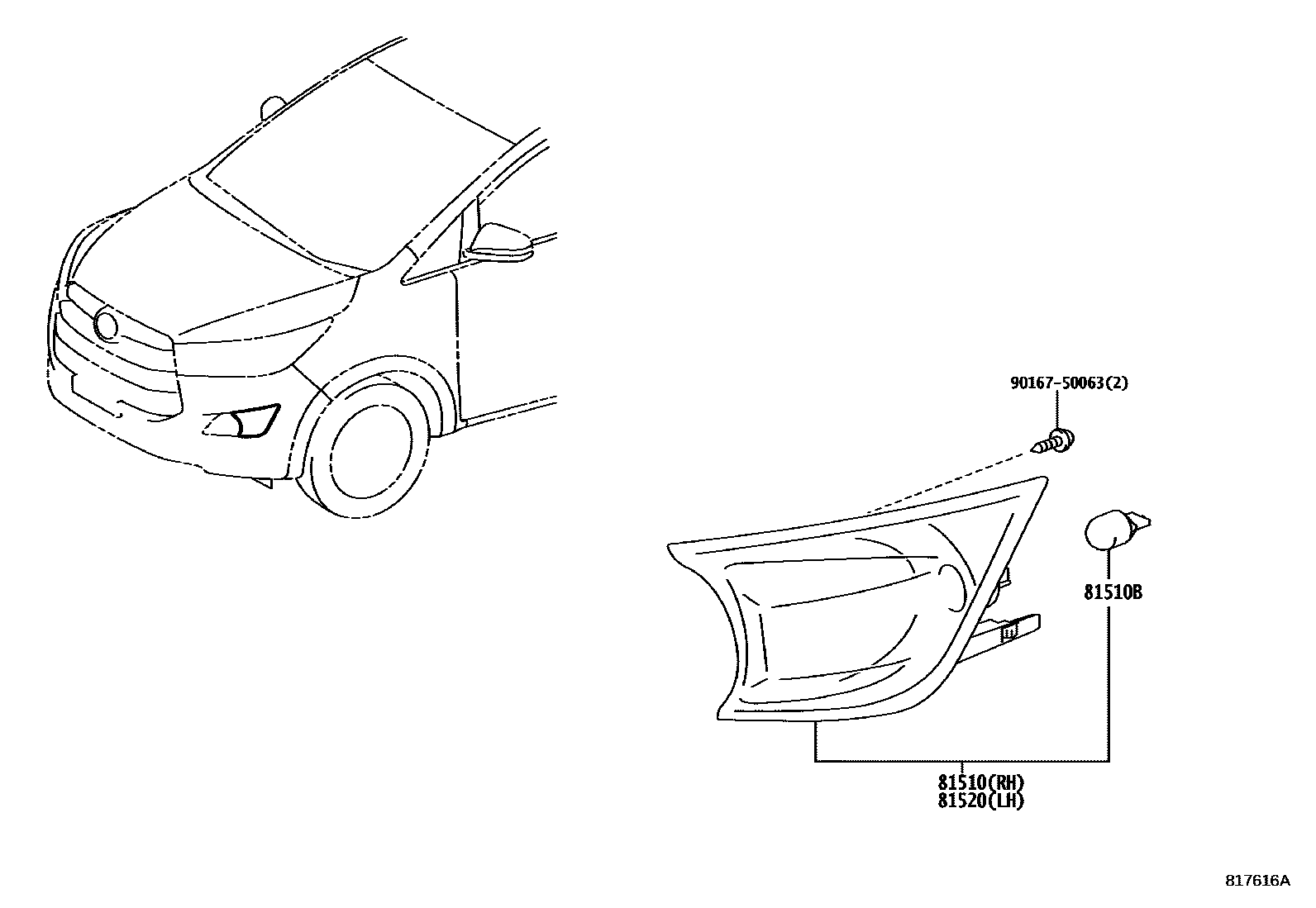

FRONT TURN SIGNAL LAMP

0001 1 0002 1MLM

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-0K010iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main81510-0K030iGUN14#..IND201604-202001

main81510-06070iGUN143,TGN140..TH; TGN140..GEN,TH;GUN14#..(20G,24V,28V)..(GEN,TH)202009-202304

WITH(MLM PACKAGE(TMMIN VENTURER)); WITH(MLM PACKAGE)

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

12V 21W,AMBER

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-0K010iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main81520-0K030iGUN14#..IND201604-202001

main81520-06070iGUN143,TGN140..TH; TGN140..GEN,TH;GUN14#..(20G,24V,28V)..(GEN,TH)202009-202304

WITH(MLM PACKAGE(TMMIN VENTURER)); WITH(MLM PACKAGE)

9016750063

main90167-50063

4 parts on this diagram · 2 diagrams in section
