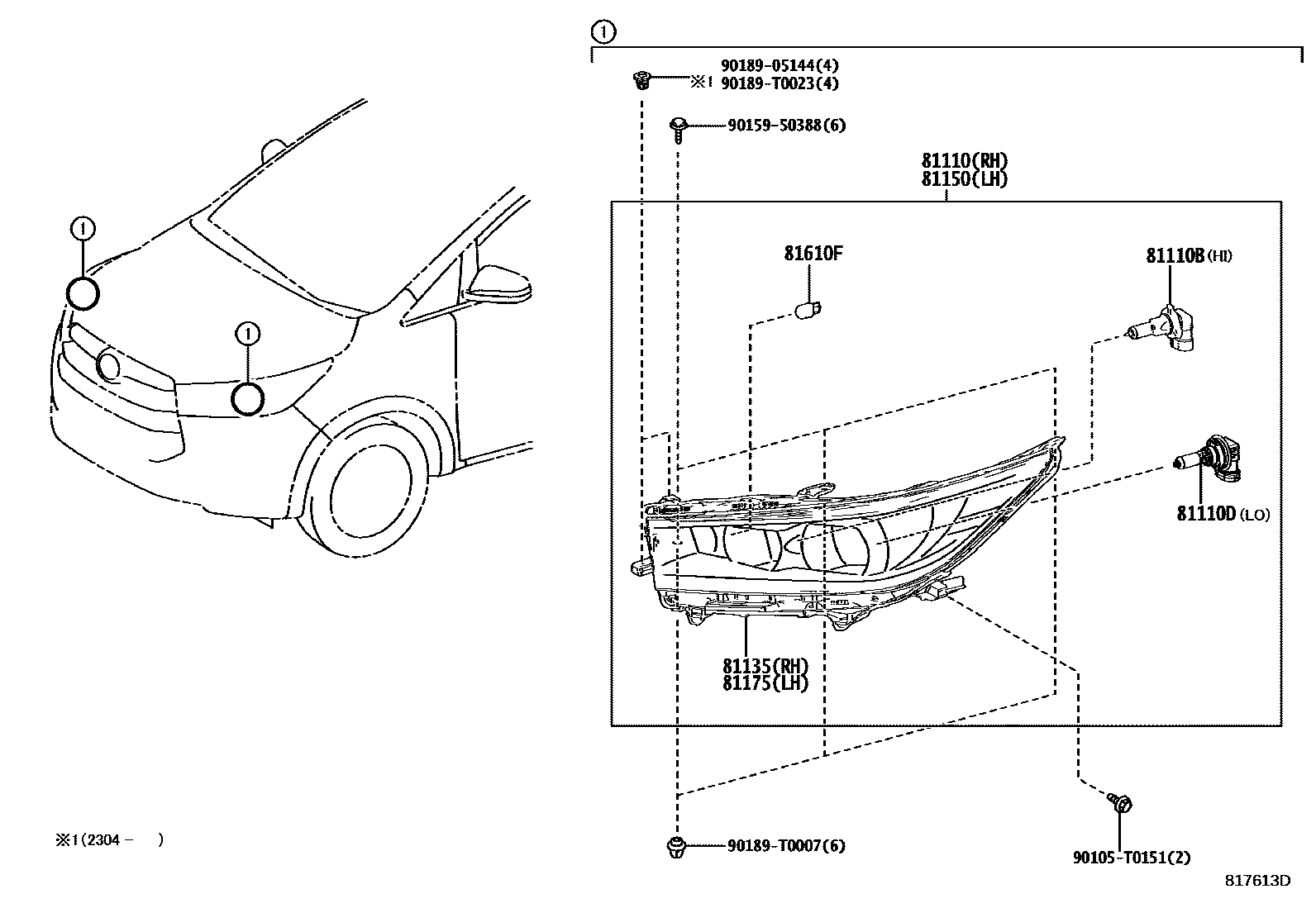

HEADLAMP
81110HEADLAMP ASSY, RH
main81110-0KB10supersedes 81110-0K340iGUN143,TGN14#..IDNP..(20E,20G,27,27SRV,28E,28G,N)..(LA,PHL); GUN143,TGN141..6FC..(27,28)..GCC201511-202008
HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-LED
HEADLAMP-LED
HEADLAMP-HALOGEN,MADE IN MALAYSIA; MADE IN MALAYSIA
main81110-0K590supersedes 81110-0K580iGUN142,TGN140..(20V,24V)..IDN; GUN142,TGN140..20Q,24Q201511-201708
HEADLAMP-LED
ECUADOR SPEC
MLM INDONESIA SPEC EURO4
MLM INDONESIA SPEC EURO4
MLM INDIA SPEC EURO4; MLM INDIA SPEC EURO5
MLM INDIA SPEC EURO4
MLM VIETNAM SPEC EURO4
MLM MALAYSIA SPEC
MLM PHILIPPINE SPEC
WITH(MLM PACKAGE(TMMIN VENTURER)),MADE IN MALAYSIA
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
12V 55W,HALOGEN; 12V 55W,HALOGEN,HEADLAMP-HALOGEN
81135UNIT ASSY, HEADLAMP, RH
HEADLAMP-LED
main81130-0KB10supersedes 81130-0K340iGUN143,TGN14#..IDNP..(20E,20G,27,27SRV,28E,28G,N)..(LA,PHL); GUN143,TGN141..6FC..(27,28)..GCC201511-202008
HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-LED
HEADLAMP-LED
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
HEADLAMP-HALOGEN
main81130-0K590supersedes 81130-0K580iGUN142,TGN140..(20V,24V)..IDN; GUN142,TGN140..20Q,24Q201511-201708
HEADLAMP-LED
CENTRAL AND SOUTH AMERICA SPEC&FRONT FOG LAMP-WITH
MLM INDONESIA SPEC EURO4
MLM INDONESIA SPEC EURO4
MLM INDIA SPEC EURO4; MLM INDIA SPEC EURO5
main81130-0KF31iGUN142..(6F,6FC)..(24V,24Z)..IND..DCRL;GUN142,TGN141..(5F,6FC)..(24V,27V,27Z)..IND..(DCRL,HTWC)201709-202010
MLM INDIA SPEC EURO4
MLM VIETNAM SPEC EURO4
WITH(MLM PACKAGE(TMMIN VENTURER))
MLM PHILIPPINE SPEC
WITH(MLM PACKAGE(TMMIN VENTURER))&HEADLAMP-LED(MLM)
81150HEADLAMP ASSY, LH
main81150-0KB10supersedes 81150-0K340iGUN143..28V..PHL; TGN140..IDNP..PHL;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN143..(28,28E,N)..PHL202009
HEADLAMP-HALOGEN
HEADLAMP-LED
HEADLAMP-LED
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
HEADLAMP-HALOGEN,MADE IN MALAYSIA; MADE IN MALAYSIA
main81150-0K590supersedes 81150-0K580iGUN142,TGN140..(20V,24V)..IDN; GUN142,TGN140..20Q,24Q201511-201708
HEADLAMP-LED
ECUADOR SPEC
MLM INDONESIA SPEC EURO4
MLM INDONESIA SPEC EURO4
MLM INDIA SPEC EURO4; MLM INDIA SPEC EURO5
MLM INDIA SPEC EURO4
MLM VIETNAM SPEC EURO4
WITH(MLM PACKAGE(TMMIN VENTURER))
MLM PHILIPPINE SPEC
WITH(MLM PACKAGE(TMMIN VENTURER))&HEADLAMP-LED(MLM),MADE IN MALAYSIA
81175UNIT ASSY, HEADLAMP, LH
main81170-0KB10supersedes 81170-0K340iGUN143,TGN14#..IDNP..(20E,20G,27,27SRV,28E,28G,N)..(LA,PHL); GUN143,TGN141..6FC..(27,28)..GCC201511-202008
HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-LED
main81170-0K590supersedes 81170-0K580iGUN142,TGN140..(20V,24V)..IDN; GUN142,TGN140..20Q,24Q201511-201708
HEADLAMP-LED
CENTRAL AND SOUTH AMERICA SPEC&FRONT FOG LAMP-WITH
MLM INDONESIA SPEC EURO4
MLM INDONESIA SPEC EURO4
MLM INDIA SPEC EURO4; MLM INDIA SPEC EURO5
main81170-0KF41iGUN142..(6F,6FC)..(24V,24Z)..IND..DCRL;GUN142,TGN141..(5F,6FC)..(24V,27V,27Z)..IND..(DCRL,HTWC)201709-202010
MLM INDIA SPEC EURO4
MLM VIETNAM SPEC EURO4
WITH(MLM PACKAGE(TMMIN VENTURER))
MLM PHILIPPINE SPEC
WITH(MLM PACKAGE(TMMIN VENTURER))&HEADLAMP-LED(MLM)
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
main90981-13101×2iGUN143..28V..PHL; TGN140..20E..VN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#..(24G,28,28E,N)..(IDN,PHL);TGN140..IDNP..(20,20E,20G,N)..(IDN,PHL)202009
12V 21/5W; 12V 21/5W,HEADLAMP-HALOGEN
90105T0151
main90105-T0151
9015950388
main90159-50388
9018905144
main90189-05144
90189T0007
main90189-T0007
90189T0023
main90189-T0023
12 parts on this diagram · 4 diagrams in section
