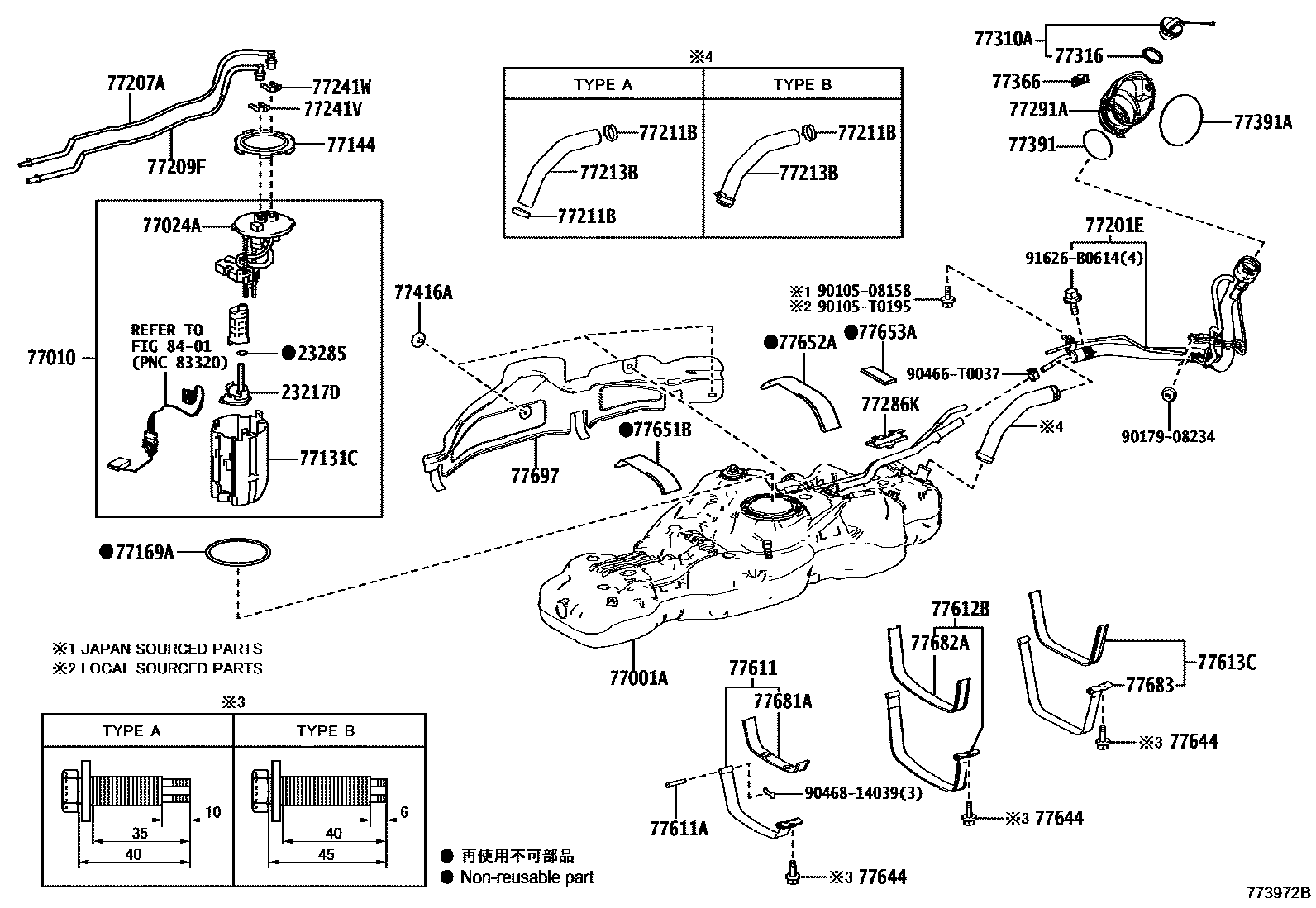

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL LID OPENER

23217DFILTER, FUEL PUMP

main23217-0L020i2GDFTV..GUN142..(24V,N)..IND..DCRL201604-202010

main23217-0L030i1GDFTV..GUN143..PHLP201511-201704

23285RING, O

main90301-08020i2GDFTV..GUN142..IND..DCRL201604-202010

main90301-T0035i1TRFE..TGN140..VN201704-202009

main90301-T0064i1GDFTV,1TRFE..GUN143,TGN140..MAP,PHLP,VNP201511-201704

77001ATANK SUB-ASSY, FUEL

main77001-0K340iTGN140..GEN201511-201807

main77001-0K360iTGN141..27G,27Z202009-202310

main77001-0K370iGUN142..TH201511-201707

main77001-0K380iGUN142..(6F,6FC)..IND202011-202310

main77001-0K650iTGN140..5F..MA201704-201905

main77001-0K740iGUN143..PHLP..(28E,28V,N)201704-202102

77010TUBE ASSY, FUEL TANK VENT

main77010-0K180iGUN14#..IND201604-202001

main77010-0K190iGUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)202009-202304

main77010-0K260iGUN143..PHLP..(28E,28V,N)201704-202102

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0K130iTGN14#..GCC,GEN,LA,TH202009-202304

main77024-0K140iGUN142..IND..DCRL201604-202010

main77024-0K150iTGN140..PHLP..N;TGN140..PHLP..6FC..20E201704-202102

main77024-0K290iGUN142..TH201511-201707

main77024-0K300iGUN143..PHLP..28G201704

77131CSUB-TANK, FUEL, NO.1

main77131-0K070iTGN140..PHLP..N;TGN140..PHLP..6FC..20E201704-202102

main77131-0K080iGUN143..PHLP..28G201704

main77131-0K160iTGN141..IND201511-202010

main77131-0K170iGUN142..IDN,TH;GUN143..IDNP..PHL202009

main77131-0K180iGUN142..(6F,6FC)..IND202011-202310

77144RETAINER, FUEL PUMP GAUGE

main77144-0K040iGUN142,TGN141..IND..(DCRL,HTWC)201511-202010

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iTGN140..6FC..MA201511-202012

main77169-0K040iGUN142..5F..24V..IDN;GUN142..5F..(24G,24Z,G);GUN142..6FC..(IDN,MA,TH);GUN143..(28,28E,28V,N)..PHL202009

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-KK010iTGN141..5F..27..GCC201511-201904

main77201-KK020iTGN140..TH202009-202304

main77201-KK040iGUN14#..GCC,GEN202009-202304

main77201-KK050iGUN143..PHLP..(28E,28V,N)201511-202102

main77201-KK130iTGN141..IND201607-202010

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-0K080iGUN142..5F..IND202011

main77204-0K090iTGN141..5F..27..GCC201511-201904

main77204-0K110iGUN142..TH201511-201707

main77204-0K120iGUN14#..IND201604-202001

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K140iGUN142..(6F,6FC)..IND202011-202310

main77209-0K150iTGN140..5F..MA201511-201905

main77209-0K170iGUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)202009-202304

main77209-0K180iGUN14#..IND201604-202001

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005iTGN14#..GCC,GEN,LA; TGN140..TH;GUN14#..(20G,24V,28,28V)..(GCC,GEN,TH)202009-202304

TYPE B:REFER ILLUST.

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-KK020iGUN142..TH201511-201707

TYPE A:REFER ILLUST.

main77213-KK051iGUN142..5F..24V..IDN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142..5F..(24G,24Z,G);TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN143..(28,28E,28V,N)..PHL;GUN142,TGN141..6FC..(IDN,MA,TH,VN)202009

TYPE B:REFER ILLUST.

77241VCLIP, TUBE JOINT

main77241-0K020iGUN142..5F..24V..IDN;GUN142..5F..(24G,24Z,G);GUN142..6FC..(IDN,MA,TH);GUN143..(28,28E,28V,N)..PHL202009

77241WCLIP, TUBE JOINT

main77241-0K010iGUN14#..(20G,24V,28,28V)..(GCC,GEN,TH); TGN14#..GCC,GEN,LA,TH202009-202304

77286KCLAMP, FUEL TUBE, NO.2

main77286-0K180iGUN142,TGN141..IND..(DCRL,HTWC)201511-202010

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0K050iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main77291-0K100iGUN14#..IND201604-202001

77310ACAP ASSY, FUEL TANK

main77300-0K010iTGN140..5F..MA201511-201905

main77300-0K020iGUN142..(6F,6FC)..(24,24G,24Z)..IND202009-202310

77316GASKET, FUEL TANK CAP

main77316-0K020iGUN142..5F..24V..IDN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142..5F..(24G,24Z,G);TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN143..(28,28E,28V,N)..PHL;GUN142,TGN141..6FC..(IDN,MA,TH,VN)202009

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iGUN142..TH201511-201707

77391RING, FUEL INLET BOX

main77391-0K010iTGN140..5F..MA201511-201905

77391ARING, FUEL INLET BOX

main77391-0K170iTGN140..VN201511-202009

77416ABOLT, FUEL TANK

main77512-0K010×3iGUN142..TH201511-201707

main77644-0K010×3iGUN142..5F..IND202011

77611BAND, FUEL TANK

main77601-KK020iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

77611APIN (FOR FUEL TANK BAND)

main77653-0K041×2iGUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH); TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA)201511-202008

77612BBAND, FUEL TANK, NO.2

main77602-KK010iGUN142..TH201511-201707

77613CBAND, FUEL TANK, NO.3

main77603-KK010iGUN142..GCC,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

77644BOLT, FUEL TANK

main77644-35030×2iGUN142..TH201511-201707

TYPE A:REFER ILLUST.

main90119-10983×2iGUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH); TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA)201511-202008

(J),TYPE B:REF ILL.

main90119-A0249×3iGUN143,TGN141..5F..(27,28,28G)..GCC; GUN143..GEN201511-201904

(L),TYPE B:REF ILL.

77651BCUSHION, FUEL TANK

main77651-0K050iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..IDN,MA,TH,VN;GUN143..(28,28E,28V,N)..PHL202009

main77651-0K120iGUN14#..IND201604-202001

77652ACUSHION, FUEL TANK, NO.2

main77654-0K060iTGN141..27G,27Z202009-202310

main77654-0K100iGUN142..5F..IND202011

77653ACUSHION, FUEL TANK, NO.3

main77653-0K060iTGN141..27G,27Z202009-202310

main77653-0K160iGUN142..5F..IND202011

77681ASEAT, FUEL TANK BAND

main77681-KK010iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

77682ASEAT, FUEL TANK BAND, NO.2

main77682-KK010iGUN142..TH201511-201707

77683SEAT, FUEL TANK BAND, NO.3

main77683-KK020iTGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA)201511-202008

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0K060iTGN140..5F..MA201511-201905

main77697-0K070iGUN142..5F..IND202011

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508158

main90105-08158

90105T0195

main90105-T0195

9017908234

main90179-08234

90466T0037

main90466-T0037

9046814039

main90468-14039

91626B0614

main91626-B0614

42 parts on this diagram · 7 diagrams in section
