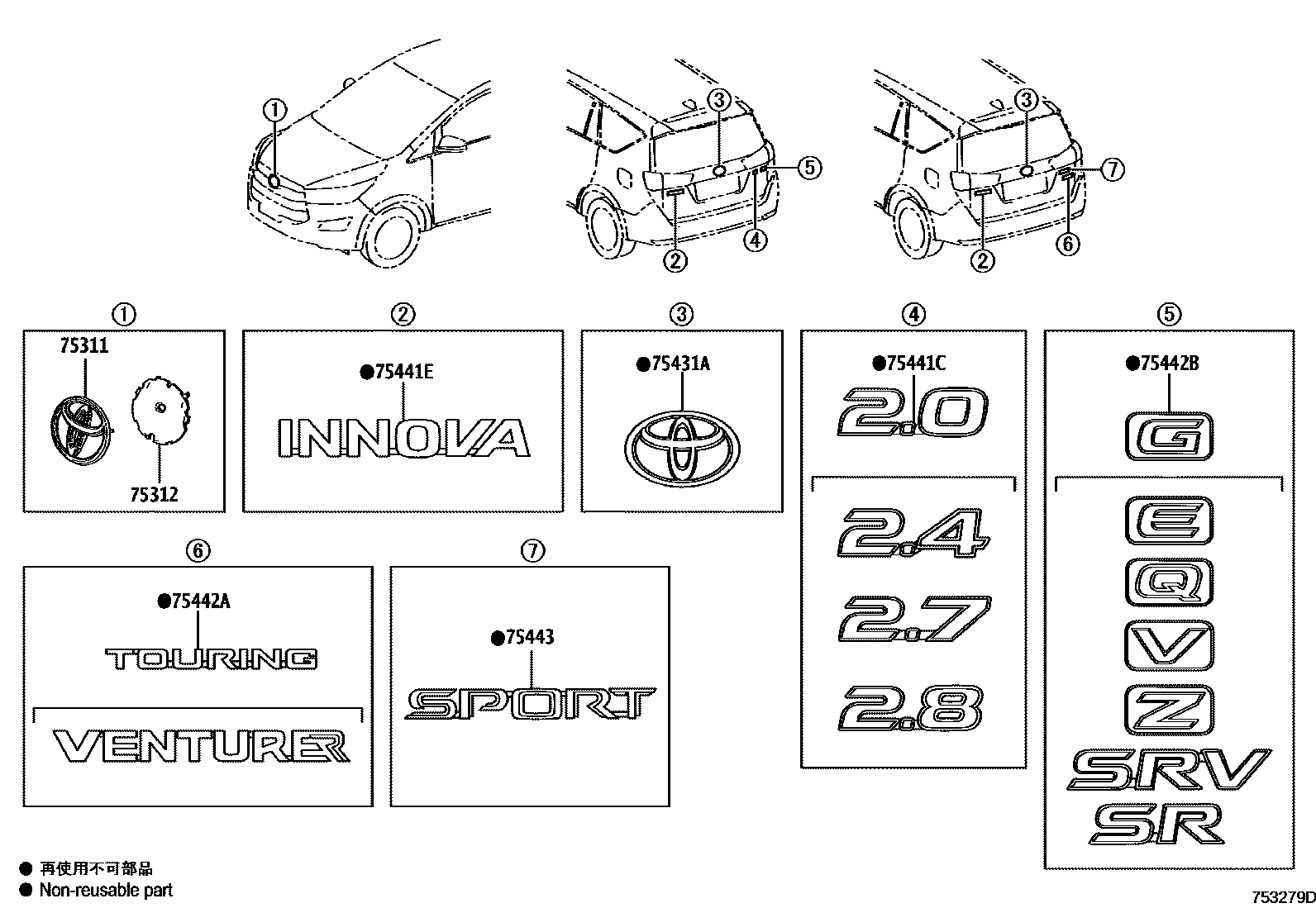

EMBLEM & NAME PLATE

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-0K140iTGN140..VN201511-202012

main75311-0K140iGUN142,TGN140..(20Q,20V,24V)..(IDN,MA,VN)202009

WITH(MLM PACKAGE(TMMIN VENTURER))

main75311-0K210iGUN142,TGN141..IND202011

WITH(TKM VANGUARD)

main75311-0K210iGUN14#,TGN141..(5F,6FC)..(24V,27V,27Z,28Z)..IND..(DCR,HTWC)201604-202010

MLM INDIA SPEC EURO5

75312BASE, RADIATOR GRILLE EMBLEM

main75312-0K030iTGN140..6FC..MA201511-202012

main75312-0K030iTGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP,VNP)..(20G,24G,24V,27,27V,28,28E,28V,G,N,SRV)202009

WITH(MLM PACKAGE(TMMIN VENTURER))

main75312-0K040iGUN142,TGN141..IND202011

WITH(TKM VANGUARD)

main75312-0K040iGUN14#,TGN141..IND201604-202010

MLM INDIA SPEC EURO5

75431AEMBLEM, BACK DOOR, NO.1

main75431-0K020iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

main75431-0K020iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..IDN,MA,TH,VN;GUN143..(28,28E,28V,N)..PHL202009

WITH(MLM PACKAGE(TMMIN VENTURER))

main75431-0K050iGUN14#..IND201604-202301

75441CPLATE, BACK DOOR NAME

main75442-0K011iTGN140..20..GEN;TGN140..(MAP,PHLP)..5F..20E;TGN140..PHLP..6FC..(20E,20G)201511-202304

2.0

main75442-0K011iTGN140..(20Q,20V)..(IDN,VN)202009

2.0,WITH(MLM PACKAGE(TMMIN VENTURER))

main75442-0K050iGUN142..24V..IDN201511-202304

2.4

main75442-0K050iGUN142..24V..IDN202009

2.4,WITH(MLM PACKAGE(TMMIN VENTURER))

main75442-0K070iGUN143..28Z201604-202001

2.8,MLM INDIA SPEC EURO4

main75442-0K070iGUN143..28Z201604-202001

2.8,MLM INDIA SPEC EURO5

main75442-0K070iGUN143..IND201604-202001

2.8

main75442-0K080iGUN142..(24G,24V,24Z)..IND201604-202303

2.4

main75442-0K130iGUN143..PHLP..6FC..28E201604-202310

2.8

main75473-0K011iTGN141..27V,27Z201511-202010

2.7,MLM INDIA SPEC EURO5

main75473-0K011iTGN141..IDNP..6FC;TGN141..5F..27..LA201511-202304

2.7

main75473-0K011iTGN141..GCC;TGN141..5F..LA202009-202304

2.7,CENTRAL AND SOUTH AMERICA SPEC

main75473-0K011iTGN141..GCC;TGN141..5F..LA202009-202304

2.7,ECUADOR SPEC

75441EPLATE, BACK DOOR NAME, NO.1

main75441-0K070iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

INNOVA

main75441-0K100iGUN142..5F..IND201604-202301

INNOVA

75442APLATE, BACK DOOR NAME, NO.2

75442BPLATE, BACK DOOR NAME, NO.2

main75459-0K011iGUN142..24G..(GCC,TH);GUN143,TGN140..PHLP..(20G,28G);GUN143,TGN141..5F..(27G,28G)..GCC201511-202304

G

main75459-0K011iGUN142..24V..IDN201511-202008

G,GRADE MARK-WITH(G GRADE)

main75459-0K011iGUN143,TGN14#..(20V,27V,28V)..(PHL,VN)202009

G,GRADE MARK-G

main75459-0K031iGUN143..28E;TGN140..PHLP..6FC..20E;TGN140..(IDNP,MAP,VNP)..20E202009

E,GRADE MARK-WITHOUT

main75459-0K031iGUN143..28E;TGN140..PHLP..6FC..20E;TGN140..(IDNP,MAP,VNP)..20E201511-202012

E

main75459-0K041iGUN14#..(24V,28V)..(GCC,GEN)201511-202304

V

main75459-0K041iGUN14#,TGN14#..(20Q,20V,24V,27V,28V)..(IDN,PHL,VN)202009

V,WITH(MLM PACKAGE(TMMIN VENTURER))

main75459-0K120iGUN142,TGN140..20Q,24Q201511-202008

Q

main75459-0K130iGUN142,TGN141..(24V,27V)..IND201604-202301

V

main75459-0K130iGUN142,TGN141..(24V,27V)..IND201604-202010

V,MLM INDIA SPEC EURO5

main75459-0K130iTGN141..5F..IND202011-202301

V,GRADE MARK-V

main75459-0K140iGUN14#,TGN141..(24G,27G,28G,G)..IND201604-202303

G

main75459-0K310iTGN140..GEN201511-201807

SR,GRADE MARK-WITH(SR GRADE)

main75459-0K310iTGN140..GEN201511-201807

SR

main75459-0K340iTGN141..27SRV201511-202304

SRV

main75459-0K360iGUN14#,TGN141..24Z,27Z,28Z201604-202301

Z

main75459-0K360iGUN143,TGN141..27Z,28Z201604-202010

Z,MLM INDIA SPEC EURO5

75443PLATE, BACK DOOR NAME, NO.3

main75441-YP030

8 parts on this diagram · 1 diagram in section
