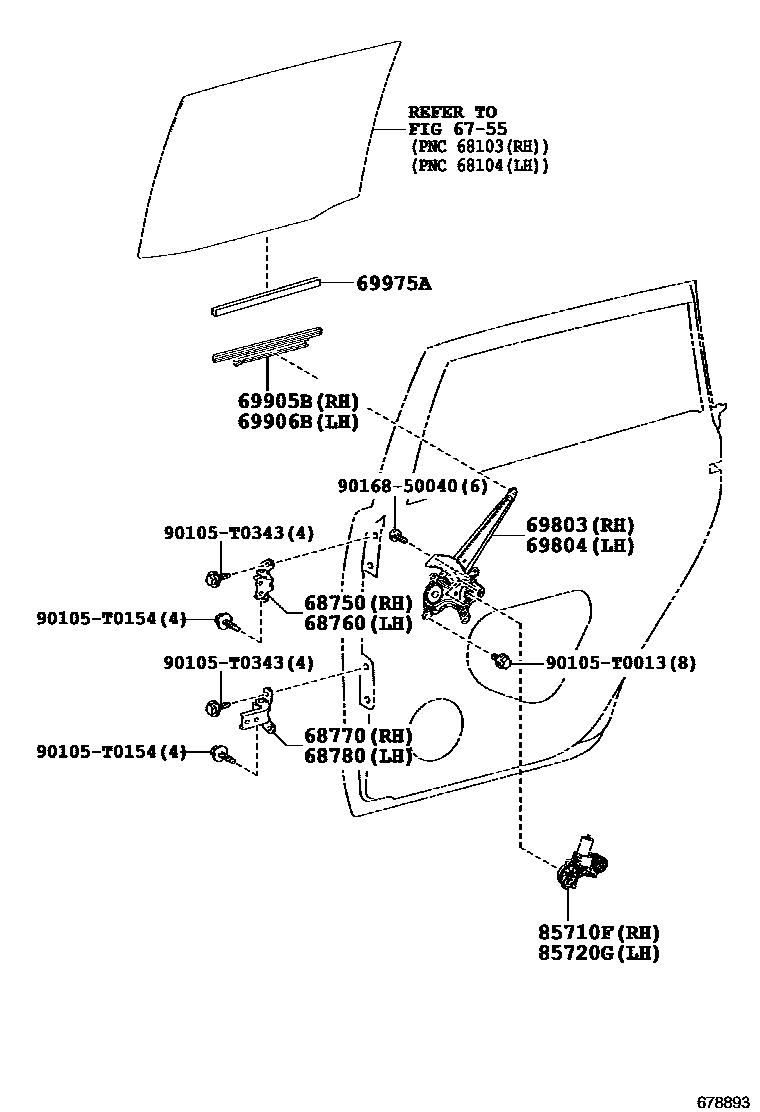

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-02080iGUN142..5F..IND202011

main68750-0D030iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-02080iGUN142..5F..IND202011

main68760-0D030iTGN140..5F..MA201511-201905

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02070iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main68770-0K040iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02070iGUN14#..IND201604-202001

main68780-0K040iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202102

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0K090iGUN142..5F..IND202011

main69803-0K140iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202102

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0K090iGUN142..5F..IND202011

main69804-0K140iTGN140..5F..MA201511-201905

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0K070iTGN140..5F..MA201611-201905

main69905-0K100iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main69905-0K110iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0K070iGUN142,TGN140..MA202101

main69906-0K100iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main69906-0K110iGUN14#..IND201604-202001

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D040×2iGUN142..5F..IND202011

main69975-0D130×2iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0D330iGUN14#..(24G,28G,G,N)..IND201808-202001

main85720-0K090iGUN14#,TGN141..(24V,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

main85720-0K100iGUN14#,TGN141..(24G,27G,28G,G,N)..IND201604-201807

main85720-0K180iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main85720-0K330iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z); TGN141..5F..IND202011-202301

GRADE MARK-V

85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0K080iGUN14#,TGN141..(24V,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

main85710-0K100iGUN14#,TGN141..(24G,27G,28G,G,N)..IND201604-201807

main85710-0K120iTGN141..27G;GUN142..6FC..24G..IND202011-202301

main85710-0K180iGUN14#,TGN140..(20Q,24V,28V)..(IDN,PHL); TGN140..20E..(MA,VN);TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#..(24G,28,28E,N)..(IDN,PHL);TGN140..IDNP..(20,20E,20G,N)..(IDN,PHL)202009

WIRELESS DOOR LOCK-WITH

main85710-0K350iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z); TGN141..5F..IND202011-202301

GRADE MARK-V

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90105T0343

main90105-T0343

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
