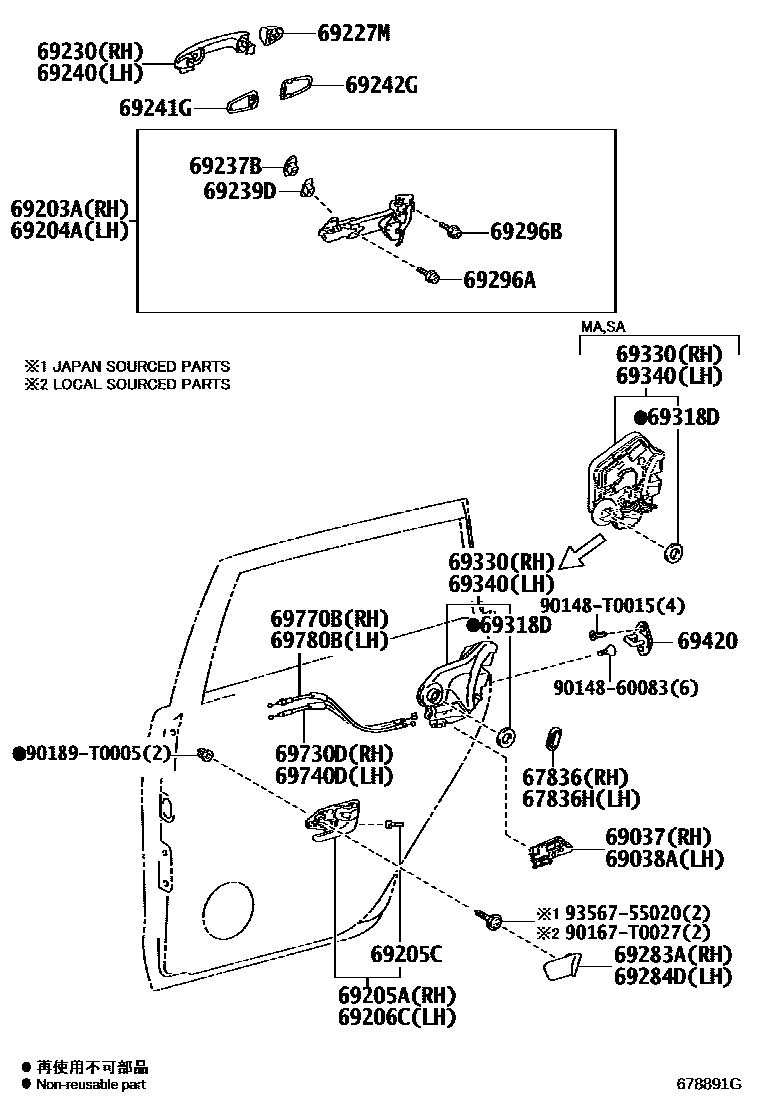

REAR DOOR LOCK & HANDLE

0001 1 0002 1

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-02030iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main67836-0K020iGUN14#..IND201604-202001

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-02030iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main67836-0K020iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02040iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main69037-02080iGUN14#..IND201604-202001

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02040iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

main69038-02080iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0K070iGUN142..TH201511-201707

main69203-0K080iGUN14#..IND201604-202001

main69203-0K092iTGN140..6FC..MA201604-202012

main69203-0K120iGUN142,TGN140..MA202101

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0K070iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main69204-0K080iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main69204-0K092iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

main69204-0K120iGUN142,TGN140..MA202101

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0K060-C0iTGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN141..(24G,27)..(GEN,IDN,LA)201511-202008

BLACK,TRIM2#,4#

main69205-0K080-C0iGUN142..G,N201604-202001

BLACK,TRIM2#

main69205-0K090-C0iGUN142,TGN140..(20V,24G)..MA202101

BLACK,TRIM2#

main69205-0K100-C1iTGN140..5F..VN201607-202009

BLACK,TRIM2#,4#

main69205-0K110-C0iGUN143,TGN140..PHLP..(20,28,28V)202102

BLACK,TRIM2#,4#

main69205-0K160-C0iGUN143..5F..28G..GCC201511-201904

BLACK,TRIM2#,4#

main69205-0K170-C0iGUN14#..(24G,24V,28G)..IND; GUN14#..24Z,28Z201604-202001

BLACK,TRIM2#; BLACK,TRIM2#,4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027×2iGUN142..TH201511-201707

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0K060-C0iTGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN141..(24G,27)..(GEN,IDN,LA)201511-202008

BLACK,TRIM2#,4#

main69206-0K080-C0iGUN142..(G,N)..IND..DCRL201604-202010

BLACK,TRIM2#

main69206-0K090-C1iTGN140..PHLP..5F..20E201604

BLACK,TRIM2#

main69206-0K100-C0iTGN140..20V..VN201607-202009

BLACK,TRIM4#

main69206-0K150-C0iGUN142..RHD..IDNP..(24V,N);GUN143,TGN140..IDNP..(20,20Q,28,28V)..(IDN,PHL)202009

BLACK,TRIM2#,4#

main69206-0K160-C0iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z); TGN141..27G;GUN142..6FC..24G..IND202011-202301

BLACK,TRIM2#; BLACK,TRIM2#,4#

main69206-0K170-C0iGUN142,TGN140..(20V,24G)..MA202101

BLACK,TRIM2#

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69227-0K140×2iGUN142..24V..TH201511-201707

*CR

main69227-0K190×2iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z); TGN141..5F..IND202011-202301

*CR; *CR,GRADE MARK-V

main69227-0K200×2iGUN143,TGN140..PHLP..(20G,28G)201604

*CR

main69227-0K350×2iGUN142,TGN140..(20V,24G)..MA202101

PLATED

main69227-0K905×2iTGN140..(20,20E,20G)..VN201604-202009

LESS COLOR

main69227-0K908iGUN142..24G..TH201511-201707

LESS COLOR

main69227-0K909iTGN141..27G;GUN142..6FC..24G..IND202011-202301

LESS COLOR

main69227-0K910×2iGUN143,TGN140..(MAP,PHLP,VNP)..(20E,28E,N)202109

LESS COLOR

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0K130iGUN142..24V..TH201511-201707

PLATED

main69210-0K190iGUN142,TGN141..(24V,24Z,27V,27Z)..IND..(DCRL,HTWC)201604-202010

PLATED

main69210-0K200iGUN143..PHLP..28V201604-202102

PLATED

main69210-0K901iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102

PAINT REQ.

main69210-0K904iGUN143,TGN141..6FC..(27,28)..GCC;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN140..RHD..IDNP..(20E,20G,20V,28G);GUN143,TGN14#..IDNP..(20E,27,28E,N)..(LA,PHL)201511-202008

PAINT REQ.

main69210-0K923iTGN141..27G;GUN142..6FC..24G..IND202011-202301

PAINT REQ.

main69210-0K924iGUN143,TGN140..(MAP,PHLP,VNP)..(20E,28E,N)202109

PAINT REQ.

69237BNUT, REAR DOOR HANDLE

main69237-0E010×2iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main69237-0K040×2iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201912-202102

main69237-0K060iGUN142,TGN140..MA202101

69239DBUSH, REAR DOOR HANDLE

main69239-0K040iGUN142,TGN140..MA202101

main69239-0K080×2iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604

main69239-0K090×2iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main69239-0K100×2iGUN142..5F..IND202011

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-0K130iGUN142..6FC..24..GCC; TGN141..IDNP..5F..(27G,27SR);GUN142,TGN140..(20,24G,28V)..(GCC,GEN)201511-201807

PLATED; PLATED,SEAT COVER MATERIAL-FULL HI FOR MPV

main69210-0K190iGUN142..5F..24Z202011

PLATED

main69210-0K200iGUN143,TGN14#..(PHLP,VNP)..(20,20V,27V,28,28V)202010

PLATED

main69210-0K901iTGN140..20E..(MA,VN);TGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)202010-202109

PAINT REQ.

main69210-0K904iGUN142..24201511-201807

PAINT REQ.

main69210-0K923iTGN141..27G;GUN142..6FC..24G..IND202011-202301

PAINT REQ.

main69210-0K924iGUN143,TGN140..(MAP,PHLP,VNP)..(20E,28E,N)202109

PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0K041×2iTGN140..6FC..MA201604-202012

main69241-0K070×2iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main69241-0K080×2iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main69241-0K100×2iGUN142,TGN140..MA202101

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0K030×2iTGN140..VN201604-202009

main69242-0K060×2iGUN142..TH201511-201707

main69242-0K070×2iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main69242-0K090×2iGUN142,TGN140..MA202101

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-0K020-C0iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

BLACK,TRIM2#,4#

main69283-0K030-C0iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z); TGN141..27G;GUN142..6FC..24G..IND202011-202301

BLACK,TRIM2#; BLACK,TRIM2#,4#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-0K010-C0iGUN142..IDN,TH;TGN140..20E..VN;TGN140..PHLP..20;GUN143..(28,28V)..PHL;TGN140..IDNP..(20,20G,20Q)..(IDN,PHL); TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL)202009

BLACK,TRIM2#; BLACK,TRIM2#,4#

main69284-0K020-C0iGUN14#..(24G,24V,28G,G,N)..IND; GUN14#..24Z,28Z201604-202001

BLACK,TRIM2#; BLACK,TRIM2#,4#

69296ASCREW, DOOR INSIDE HANDLE

main69296-0K040iGUN142,TGN140..MA202101

main69296-0M010×2iTGN140..VN201604-202009

69296BSCREW, DOOR INSIDE HANDLE

main90148-50003×2iTGN140..20E..VN;TGN140..PHLP..6FC..20E;GUN143,TGN14#..(PHLP,VNP)..(20,20V,27V,28,28E,28V,N)202010

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iGUN14#..IND201511-202001

69330LOCK ASSY, REAR DOOR, RH

main69050-0K020iGUN142..TH201511-201707

main69050-0K070iGUN14#..IND201604-202001

main69050-60110iTGN140..6FC..MA201511-202012

main69050-0K160iGUN142,TGN141..5F..(24G,24V,27G,G)..IND..(DCRL,HTWC)201902-202010

INDIA FOR FLEET SPEC

69340LOCK ASSY, REAR DOOR, LH

main69060-0K070iGUN142..TH201511-201707

main69060-0K080iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main69060-60110iGUN142,TGN140..MA202101

main69060-0K170iGUN142..5F..(24G,24V,G)..IND201906-202001

INDIA FOR FLEET SPEC

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D050×2iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main69410-0D060×2iTGN140..VN201511-202009

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0K250iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

main69730-0K260iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main69730-0K270iTGN140..5F..MA201511-201905

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0K250iGUN142..TH201511-201707

main69730-0K260iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main69730-0K270iTGN140..6FC..MA201511-202012

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0K240iGUN142..TH201511-201707

main69770-0K250iGUN142..5F..IND202011

main69770-0K260iTGN140..6FC..MA201511-202012

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0K240iGUN142..TH201511-201707

main69770-0K250iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main69770-0K260iGUN142,TGN140..MA202101

9014860083

main90148-60083

90148T0015

main90148-T0015

90167T0027

main90167-T0027

90189T0005

main90189-T0005

9356755020

main93567-55020

33 parts on this diagram · 2 diagrams in section
