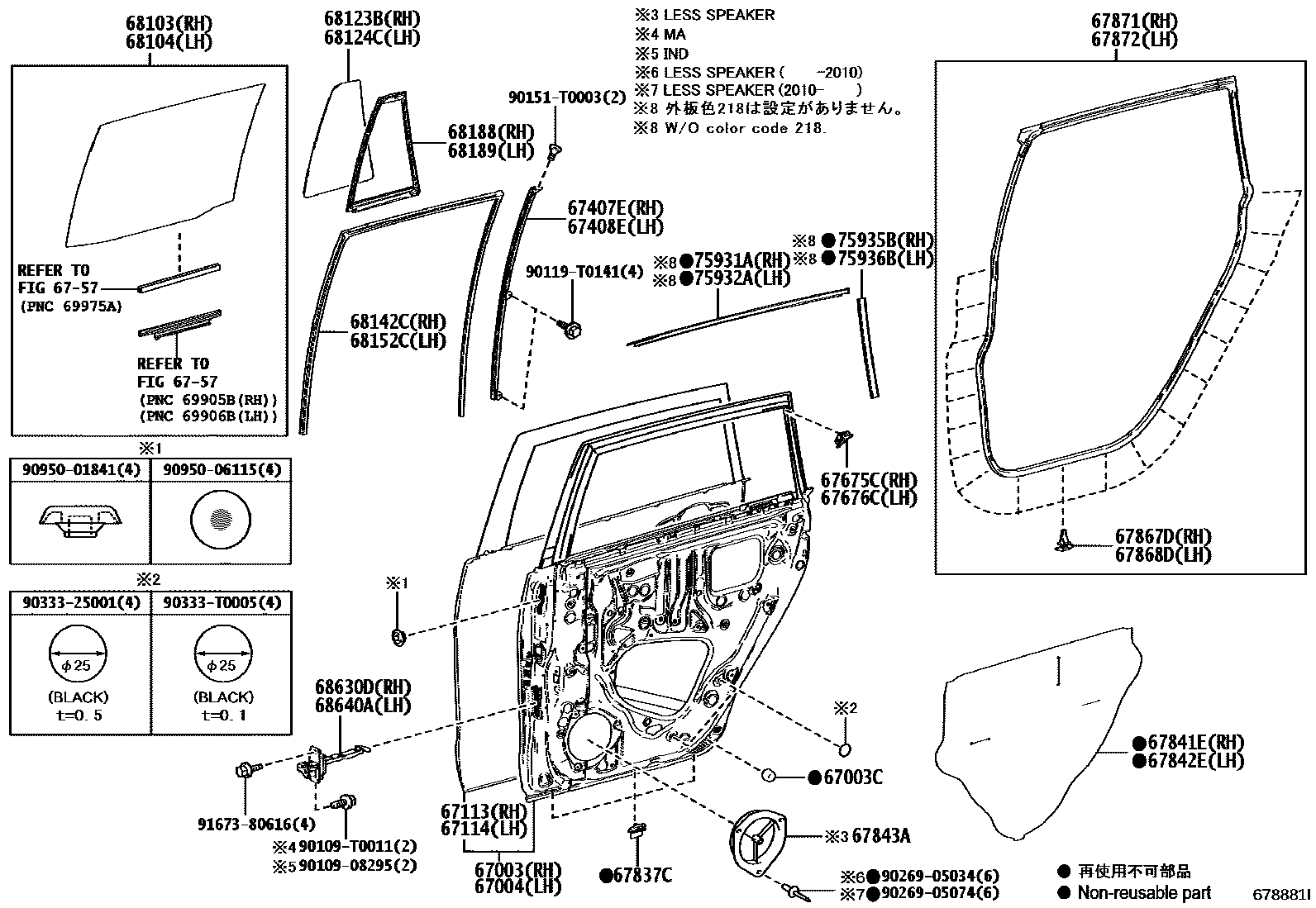

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0004 1DOOR PANEL 0006 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0K130iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

main67003-0K140iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

67003CCUSHION, REAR DOOR PANEL

main90541-09131×2iGUN142..TH201511-201707

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0K130iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main67004-0K140iTGN140..VN201511-202009

67113PANEL, REAR DOOR, OUTER RH

main67113-0K060iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main67113-0K070iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

67114PANEL, REAR DOOR, OUTER LH

main67114-0K060iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main67114-0K070iGUN142..5F..IND202011

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0K040iTGN140..5F..MA201511-201905

main67407-0K050iGUN14#,TGN141..IND201604-201803

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0K040iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main67408-0K050iGUN14#,TGN141..IND201604-201803

6757REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-57

67675CGARNISH, REAR DOOR FRAME, NO.2 RH

main67675-0K020iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

67676CGARNISH, REAR DOOR FRAME, NO.2 LH

main67676-0K010iGUN142..TH201511-201707

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K090×6iGUN14#,TGN141..IND201604-201608

main67837-0K091×6iGUN14#,TGN14#..IND,MA201609-201712

main67837-0K092×6iGUN142,TGN141..IND202011-202209

main67837-0K093×6iTGN141..IND;GUN142..(6F,6FC)..IND202210-202301

main67837-0K110×6iGUN143..IDNP;TGN140..IDNP..PHL201511-201609

main67837-0K111×6iGUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP,PHLP,VNP201609-201712

main67837-0K112×6iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201801-201807

main67837-0K113×6iGUN14#,TGN14#..GCC,GEN,LA,TH202207-202304

main67837-0K210×6iGUN142,TGN140..MA202101-202206

PLANT ASSB

main67837-0K211×6iTGN140..MA202207

PLANT ASSB

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0K110iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main67841-0K120iGUN14#..IND201604-202001

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0K130iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

main67842-0K140iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

67843ACOVER, REAR DOOR SERVICE HOLE, NO.2

main67843-60030×2iGUN142..N201604-202001

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×19iGUN142..TH201511-201707

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×19iTGN141..27G,27Z;GUN142..(6F,6FC)..(24,24G,24Z)..IND202009-202301

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0K060iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main67871-0K070iGUN14#..IND201604-202001

main67871-0K250iGUN142,TGN140..MA202101

PLANT ASSB

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0K060iGUN142..TH201511-201707

main67872-0K070iGUN14#..IND201604-202001

main67872-0K250iGUN142,TGN140..MA202101

PLANT ASSB

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0K190iTGN140..20E..VN;TGN140..IDNP..(IDN,PHL);GUN142,TGN141..IDN,TH,VN;TGN140..(PHLP,VNP)..(20V,N);GUN143..(28,28E,28V,N)..PHL;TGN140..PHLP..6FC..(20,20E)202009

main68103-0K200iGUN14#..IND201604-202001

main68103-0K400iTGN140..5F..MA201611-201905

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0K190iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202102

main68104-0K200iGUN142..5F..IND202011

main68104-0K400iTGN140..6FC..MA201611-202012

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0K130iGUN14#,TGN14#..IDNP,PHLP,VNP201511-201707

main68123-0K131iTGN140..VN201708-201805

main68123-0K140iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main68123-0K300iTGN140..6FC..MA201611-202012

main68123-0K340iTGN140..VN201805-202009

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0K130iGUN14#,TGN14#..IDNP,PHLP,VNP201511-201707

main68124-0K131iTGN140..VN201708-201805

main68124-0K140iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

main68124-0K300iTGN140..6FC..MA201611-202012

main68124-0K340iTGN140..VN201805-202009

68142CRUN, REAR DOOR GLASS, RH

main68142-0K060iGUN142..TH201511-201707

main68142-0K070iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

68152CRUN, REAR DOOR GLASS, LH

main68152-0K060iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main68152-0K070iGUN142..5F..IND202011

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0K040iTGN140..5F..MA201511-201905

main68188-0K050iGUN14#..IND201604-202001

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0K040iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

main68189-0K050iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

68630DCHECK ASSY, REAR DOOR, RH

main68630-0K070iTGN140..5F..MA201511-201905

main68630-0K080iGUN142..5F..IND202011

68640ACHECK ASSY, REAR DOOR, LH

main68630-0K070iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main68630-0K080iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-0K020iTGN140..VN201511-202009

main75931-0K030iGUN142..G202208-202303

0 OR 1PIECE,REF.ILL.

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-0K020iTGN140..5F..MA201511-201905

main75932-0K030iGUN14#..IND201604-202001

75935BTAPE, BLACK OUT, OUTER REAR RH

main75935-0K020iTGN140..5F..MA201511-201905

main75935-0K030iGUN142..5F..(24G,24Z)..IND202208

0 OR 1PIECE,REF.ILL.

75936BTAPE, BLACK OUT, OUTER REAR LH

main75936-0K020iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511

main75936-0K030iTGN141..IND;GUN142..(6F,6FC)..IND202208-202301

0 OR 1PIECE,REF.ILL.

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90151T0003

main90151-T0003

9026905034

main90269-05034

9026905074

main90269-05074

9033325001

main90333-25001

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

9167380616

main91673-80616

43 parts on this diagram · 3 diagrams in section
