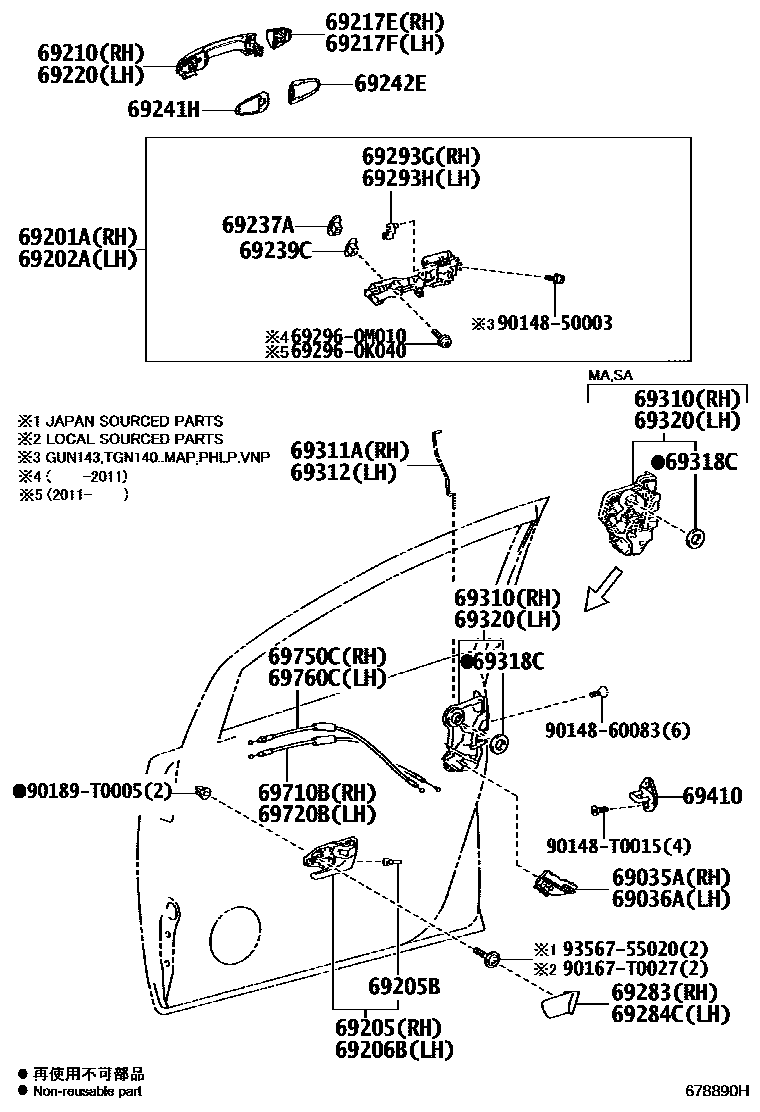

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02040iGUN142,TGN140..GCC,GEN;TGN141..IDNP..5F..(27G,27SR)201511-202304

main69035-02080iGUN14#..IND201604-202301

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02040iGUN142,TGN140..GCC,GEN;TGN141..IDNP..5F..(27G,27SR)201511-202304

main69036-02080iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0K040iGUN142..TH201511-202304

main69201-0K050iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

main69201-0K061iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201604-202102

main69201-0K090iGUN142,TGN140..MA202101

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0K040iGUN142..IDN,TH;GUN143,TGN140..IDNP..(IDN,PHL)201511-202304

main69202-0K050iGUN142..5F..IND201604-202301

main69202-0K061iTGN140..20E..VN;TGN140..PHLP..6FC..20E;GUN143,TGN14#..(PHLP,VNP)..(20,20V,27V,28,28E,28V,N)201604-202102

main69202-0K090iGUN142,TGN140..MA202101

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0K060-C0iTGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN141..(24G,27)..(GEN,IDN,LA)201511-202304

BLACK,TRIM2#,4#

main69205-0K060-C0iGUN142,TGN140..(20G,24G)..IDN201608-202008

BLACK,TRIM2#

main69205-0K080-C0iGUN142..G,N201604-202010

BLACK,TRIM2#

main69205-0K090-C0iGUN142,TGN140..(20V,24G)..MA202101

BLACK,TRIM2#

main69205-0K100-C1iTGN140..PHLP..5F..20E201604-202102

BLACK,TRIM2#

main69205-0K100-C1iTGN140..5F..VN201607-202009

BLACK,TRIM2#,4#

main69205-0K110-C0iTGN140..20G..VN201604-202102

BLACK,TRIM2#,4#

main69205-0K110-C0iTGN140..(20G,20V)..MA201611-202012

BLACK,TRIM2#

main69205-0K110-C0iTGN140..20V..VN201607-202009

BLACK,TRIM4#

main69205-0K160-C0iGUN142..SA;TGN141..IDNP..5F..(27G,27SR);GUN142,TGN140..(20,24G,28V)..(GCC,GEN)201511-202304

BLACK,TRIM2#,4#

main69205-0K170-C0iGUN14#..24Z,28Z201604-202301

BLACK,TRIM2#,4#

main69205-0K170-C0iGUN142..5F..24Z201604-202301

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iGUN142..TH201511-202410

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0K060-C0iTGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN141..(24G,27)..(GEN,IDN,LA)201511-202304

BLACK,TRIM2#,4#

main69206-0K060-C0iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201608-202008

BLACK,TRIM2#

main69206-0K080-C0iGUN142..G,N201604-202010

BLACK,TRIM2#

main69206-0K090-C1iTGN140..6FC..20E..MA201604-202102

BLACK,TRIM2#

main69206-0K090-C1iTGN140..20E..VN201607-202009

BLACK,TRIM2#,4#

main69206-0K100-C0iTGN140..20G..VN201604-202102

BLACK,TRIM2#,4#

main69206-0K100-C0iTGN140..(20G,20V)..MA201611-202012

BLACK,TRIM2#

main69206-0K100-C0iTGN14#..6FC..VN201607-202009

BLACK,TRIM4#

main69206-0K150-C0iGUN142..SA;TGN141..IDNP..5F..(27G,27SR);GUN142,TGN140..(20,24G,28V)..(GCC,GEN)201511-202304

BLACK,TRIM2#,4#

main69206-0K160-C0iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)201604-202301

BLACK,TRIM2#,4#

main69206-0K160-C0iTGN141..27G;GUN142..6FC..24G..IND201604-202301

BLACK,TRIM2#

main69206-0K170-C0iGUN142,TGN140..(20V,24G)..MA202101

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0K060iGUN143,TGN14#..(PHLP,VNP)..(20V,27V,28V)201604-202102

PLATED

main69210-0K090iGUN142..24V..GEN;GUN143..IDNP..28V;GUN142,TGN140..20Q,24Q201511-202008

PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main69210-0K090iGUN142..24V..TH201511-202304

PLATED

main69210-0K100iGUN142..5F..24Z201604-202301

PLATED

main69210-0K100iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202011-202301

PLATED,GRADE MARK-V

main69210-0K130iTGN141..IDNP..5F..(27G,27SR);GUN142,TGN140..(20,24G)..(GCC,GEN)201511-202008

PLATED

main69210-0K130iGUN143..IDNP..28V..PHL202009

PLATED,WIRELESS DOOR LOCK-WITH

main69210-0K130iGUN142..6FC..24..GCC201511-202008

PLATED,SEAT COVER MATERIAL-FULL HI FOR MPV

main69210-0K200iGUN143,TGN140..PHLP..(20,28)201604

PLATED

main69210-0K200iGUN143..PHLP..28V202102

PLATED,WIRELESS DOOR LOCK-WITH

main69210-0K370iGUN142,TGN140..(20V,24G)..MA202101

NO PAINT REQ.

main69210-0K901iTGN140..PHLP..5F..20E201604-202109

PAINT REQ.

sub69210-0K924

main69210-0K904iGUN14#,TGN140..IDNP..(20E,20G,24G,28E,N)..(IDN,PHL)202009

PAINT REQ.,WIRELESS DOOR LOCK-WITH

main69210-0K904iGUN142..24G..TH201511-202304

PAINT REQ.

main69210-0K923iGUN142..5F..(24G,G)..IND201604-202301

PAINT REQ.

main69210-0K924iGUN143,TGN140..(MAP,PHLP,VNP)..(20E,28E,N)202109

PAINT REQ.

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-0K250iGUN142..24V..GEN;GUN143..IDNP..28V;GUN142,TGN140..20Q,24Q201511-202304

*CR

main69217-0K250iGUN142..24V..GEN;GUN143..IDNP..28V;GUN142,TGN140..20Q,24Q201511-202008

*CR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main69217-0K260iGUN142..24G..GCC;TGN141..IDNP..5F..(27G,27SR)201511-202008

*CR,SEAT COVER MATERIAL-FULL HI FOR MPV

main69217-0K260iGUN143,TGN140..IDNP..(20,28)..PHL201511-202008

*CR

main69217-0K260iGUN143..IDNP..28V..PHL202009

*CR,WIRELESS DOOR LOCK-WITH

main69217-0K350iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202011-202301

*CR,GRADE MARK-V

main69217-0K350iTGN141..5F..IND201604-202301

*CR

main69217-0K370iTGN140..20G..MA201611-202012

*CR

main69217-0K380iGUN143,TGN140..PHLP..(20G,28G)201604-202102

*CR

main69217-0K690iGUN142,TGN140..(20V,24G)..MA202101

PLATED

main69217-0K909iTGN140..5F..MA201611-202109

LESS COLOR

sub69217-0K919

main69217-0K910iTGN140..PHLP..5F..20E201604-202109

LESS COLOR

sub69217-0K920

main69217-0K915iGUN142..SA201511-202304

LESS COLOR

main69217-0K915iGUN142,TGN140..(20G,24G)..IDN202009

LESS COLOR,WIRELESS DOOR LOCK-WITH

main69217-0K916iGUN143,TGN141..6FC..(27,28)..GCC;GUN143,TGN14#..IDNP..(20E,27,28E,N)..(LA,PHL)201511-202304

LESS COLOR

main69217-0K917iGUN142,TGN141..(24G,27G,G,N)..IND..(DCRL,HTWC)201604-202301

LESS COLOR

main69217-0K919iTGN140..20E..MA202109

LESS COLOR

main69217-0K920iGUN143,TGN140..(PHLP,VNP)..(20E,28E,N)202109

LESS COLOR

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-0K250iGUN143..IDNP..28V..PHL201511-202008

*CR

main69217-0K250iGUN142..24G..GCC;TGN141..IDNP..5F..(27G,27SR)201511-202008

*CR,SEAT COVER MATERIAL-FULL HI FOR MPV

main69217-0K250iGUN143,TGN140..IDNP..(20,28)..PHL202009

*CR,WIRELESS DOOR LOCK-WITH

main69217-0K260iGUN142,TGN140..(20V,24V)..IDN201511-202008

*CR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main69217-0K260iGUN142,TGN140..6FC..(20,28V)201511-202304

*CR

main69217-0K360iGUN14#..(24V,24Z,28Z)..IND201604-202301

*CR

main69217-0K360iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202011-202301

*CR,GRADE MARK-V

main69217-0K370iTGN140..20V..VN201604-202102

*CR

main69217-0K380iTGN140..20G..MA201611-202012

*CR

main69217-0K710iGUN142,TGN140..(20V,24G)..MA202101

PLATED

main69217-0K909iTGN140..(20E,20G)..VN201604-202109

LESS COLOR

sub69217-0K919

main69217-0K910iTGN140..6FC..20E..MA201611-202109

LESS COLOR

sub69217-0K920

main69217-0K915iGUN143,TGN141..6FC..(27,28)..GCC;GUN143,TGN14#..IDNP..(20E,27,28E,N)..(LA,PHL)201511-202304

LESS COLOR

main69217-0K916iGUN142,TGN140..(20Q,24V)..IDN202009

LESS COLOR,WIRELESS DOOR LOCK-WITH

main69217-0K916iGUN142..SA201511-202304

LESS COLOR

main69217-0K918iGUN142,TGN141..(24G,27G,G,N)..IND..(DCRL,HTWC)201604-202301

LESS COLOR

main69217-0K919iGUN143,TGN140..(PHLP,VNP)..(20E,28E,N)202109

LESS COLOR

main69217-0K920iTGN140..20E..MA202109

LESS COLOR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0K060iTGN140..20V..VN201604-202102

PLATED

main69210-0K090iGUN142,TGN140..(20V,24V)..IDN201511-202304

PLATED

main69210-0K090iGUN142,TGN140..(20V,24V)..IDN201511-202008

PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main69210-0K100iTGN141..5F..IND202011-202301

PLATED,GRADE MARK-V

main69210-0K100iGUN142..5F..24Z201604-202301

PLATED

main69210-0K130iGUN143,TGN140..IDNP..(20G,28G)..PHL;GUN143,TGN141..6FC..(27G,27SRV,28G)..(GCC,LA)201511-202008

PLATED,SEAT COVER MATERIAL-FULL HI FOR MPV

main69210-0K130iGUN142..6FC..24..GCC201511-202008

PLATED

main69210-0K130iGUN143..IDNP..28V..PHL202009

PLATED,WIRELESS DOOR LOCK-WITH

main69210-0K200iGUN143,TGN140..PHLP..(20,28)201604

PLATED

main69210-0K200iGUN143,TGN140..PHLP..(20,28)202102

PLATED,WIRELESS DOOR LOCK-WITH

main69210-0K370iGUN142,TGN140..(20V,24G)..MA202101

NO PAINT REQ.

main69210-0K901iTGN140..PHLP..5F..20E201604-202109

PAINT REQ.

sub69210-0K924

main69210-0K904iGUN143,TGN141..6FC..(27,28)..GCC;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN140..RHD..IDNP..(20E,20G,20V,28G);GUN143,TGN14#..IDNP..(20E,27,28E,N)..(LA,PHL)201511-202304

PAINT REQ.

main69210-0K904iGUN14#,TGN140..IDNP..(20E,20G,24G,28E,N)..(IDN,PHL)202009

PAINT REQ.,WIRELESS DOOR LOCK-WITH

main69210-0K923iGUN142..5F..(24G,G)..IND201604-202301

PAINT REQ.

main69210-0K924iGUN143,TGN140..(MAP,PHLP,VNP)..(20E,28E,N)202109

PAINT REQ.

69237ANUT, FRONT DOOR HANDLE

main69237-0E010iTGN140..5F..MA201511-202304

main69237-0K040iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201912-202102

main69237-0K060iGUN142,TGN140..MA202101

69239CBUSH, FRONT DOOR HANDLE

main69239-0K040iGUN142,TGN140..MA202101

main69239-0K080iTGN140..VN201604-202102

main69239-0K090iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

main69239-0K100iGUN14#..IND201604-202301

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0K041iTGN140..5F..MA201604-202102

main69241-0K070iGUN142..TH201511-202304

main69241-0K080iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

main69241-0K100iGUN142,TGN140..MA202101

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0K030iTGN140..VN201604-202102

main69242-0K060iGUN142..TH201511-202304

main69242-0K070iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

main69242-0K090iGUN142,TGN140..MA202101

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-0K020-C0iGUN142..IDN,TH;TGN140..20E..VN;TGN140..PHLP..20;GUN143..(28,28V)..PHL;TGN140..IDNP..(20,20G,20Q)..(IDN,PHL)201511-202304

BLACK,TRIM2#,4#

main69283-0K020-C0iTGN140..5F..MA201604-202102

BLACK,TRIM2#

main69283-0K020-C0iTGN140..20V..VN201607-202009

BLACK,TRIM4#

main69283-0K030-C0iGUN142,TGN141..(24G,24V,27G,27V,G,N)..IND..(DCRL,HTWC)201604-202301

BLACK,TRIM2#

main69283-0K030-C0iGUN142..5F..24Z201604-202301

BLACK,TRIM2#,4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-0K010-C0iTGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL)201604-202102

BLACK,TRIM2#

main69284-0K010-C0iGUN142..TH201511-202304

BLACK,TRIM2#,4#

main69284-0K010-C0iTGN140..20V..VN201607-202009

BLACK,TRIM4#

main69284-0K020-C0iTGN141..27G;GUN142..6FC..24G..IND201604-202301

BLACK,TRIM2#

main69284-0K020-C0iGUN142,TGN141..(24Z,27Z)..(DCRL,HTWC)201604-202301

BLACK,TRIM2#,4#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-0K070iGUN142,TGN140..MA202101

main69293-12030iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-0K080iGUN142,TGN140..MA202101

main69293-12040iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202304

69310LOCK ASSY, FRONT DOOR, RH

main69030-02610iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

main69030-0K090iGUN142..TH201511-202304

main69030-0K100iTGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,24V,28E,28G,28V,N)..(GEN,PHL)201511-202304

main69030-53080iTGN140..6FC..MA201511-202012

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0K110iGUN14#..IND201604-202301

main69311-0K160iGUN142..TH201511-202304

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0K110iGUN14#..IND201604-202301

main69312-0K160iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202304

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

69320LOCK ASSY, FRONT DOOR, LH

main69040-02570iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

main69040-0K030iGUN143,TGN140..IDN,TH;GUN142..RHD..(GEN,IDN)201511-202304

main69040-0K090iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

main69040-53090iGUN142..SA201511-202012

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D050iGUN14#..IND201604-202301

main69410-0D060iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202304

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0K130iGUN142..5F..IND201604-202301

main69710-0K220iGUN142..TH201511-202304

main69710-0K230iGUN142,TGN140..MA201511-202012

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0K130iGUN142,TGN141..IND..(DCRL,HTWC)201604-202301

main69710-0K220iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

main69710-0K230iTGN140..5F..MA201511-202012

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0K130iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

main69750-0K220iTGN140..20E..VN;TGN140..IDNP..(IDN,PHL);GUN142,TGN141..IDN,TH,VN;TGN140..(PHLP,VNP)..(20V,N);GUN143..(28,28E,28V,N)..PHL;TGN140..PHLP..6FC..(20,20E)201511-202304

main69750-0K230iTGN140..6FC..MA201511-202012

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0K130iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

main69750-0K220iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

main69750-0K230iGUN142,TGN140..MA201511-202012

692960K040SCREW, DOOR INSIDE HANDLE

main69296-0K040

692960M010SCREW, DOOR INSIDE HANDLE

main69296-0M010

9014850003

main90148-50003

9014860083

main90148-60083

90148T0015

main90148-T0015

90167T0027

main90167-T0027

90189T0005

main90189-T0005

9356755020

main93567-55020

37 parts on this diagram · 2 diagrams in section
