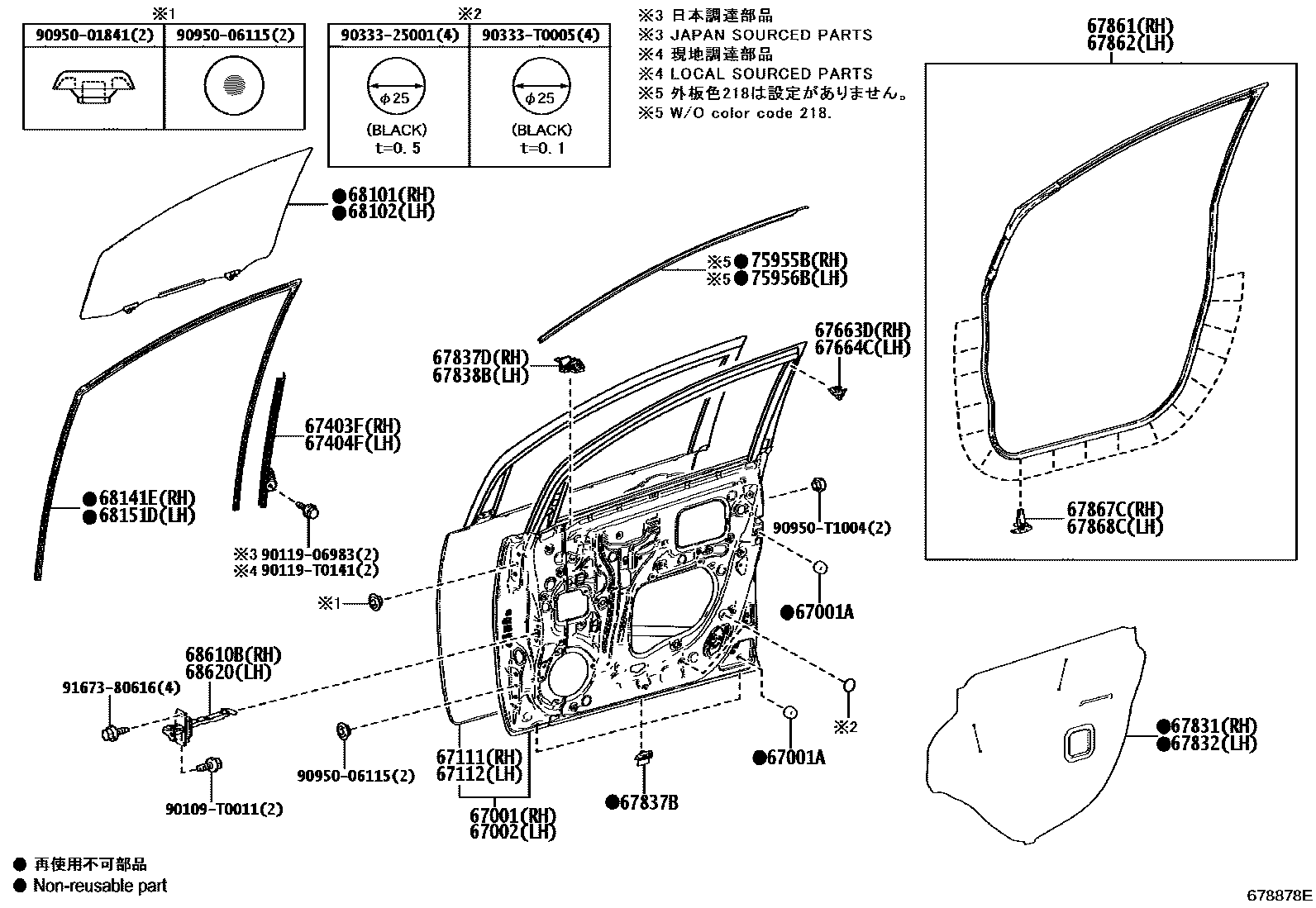

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR PANEL 0004 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0K130iGUN14#,TGN14#..IDNP,PHLP,VNP201511-201610

main67001-0K131iTGN140..(20E,20V)..(MA,VN);GUN142,TGN141..IDN,MA,TH,VN;GUN143,TGN140..IDNP..(IDN,PHL)202009

main67001-0K140iGUN14#,TGN141..IND201604-201610

main67001-0K141iGUN142..5F..IND202011

main67001-0K150iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201707-202102

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×4iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0K130iGUN14#,TGN14#..IDNP,PHLP,VNP201511-201610

main67002-0K131iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

main67002-0K140iGUN14#,TGN141..IND201604-201610

main67002-0K141iGUN142,TGN141..IND..(DCRL,HTWC)201611-202010

main67002-0K150iGUN143,TGN140..PHLP202102

67111PANEL, FRONT DOOR, OUTER RH

main67111-0K060iTGN140..5F..MA201511-201905

main67111-0K070iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

67112PANEL, FRONT DOOR, OUTER LH

main67112-0K060iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202102

main67112-0K070iTGN141..IND;GUN142..(6F,6FC)..IND202011-202301

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K040iTGN140..5F..MA201511-201905

main67403-0K050iGUN14#..IND201604-202001

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K040iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main67404-0K050iGUN14#..IND201604-202001

67663DGARNISH, DOOR FRAME, RH

main67663-0K010iGUN14#..IND201511-202001

67664CGARNISH, DOOR FRAME, LH

main67664-0K010iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K100iTGN140..5F..MA201511-201905

main67831-0K110iGUN142..5F..IND202011

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K210iGUN142..TH201511-201707

main67832-0K220iGUN14#..IND201604-202001

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K090×6iGUN14#,TGN141..IND201604-201608

main67837-0K091×6iGUN14#,TGN14#..IND,MA201609-201712

main67837-0K092×6iGUN14#..IND201801-202001

main67837-0K093×6iGUN142..5F..IND202210

main67837-0K110×6iGUN14#,TGN14#..IDNP,PHLP,VNP201511-201608

main67837-0K111×6iGUN142..TH201609-201707

main67837-0K112×6iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201801

main67837-0K113×6iGUN14#,TGN14#..GCC,GEN,LA,TH202207-202304

main67837-0K210×6iGUN142,TGN140..MA202101-202206

PLANT ASSB

main67837-0K211×6iTGN140..MA202207

PLANT ASSB

67837DSEAL, FRONT DOOR VENT, RH

main67837-0K130iTGN140..6FC..MA201511-202012

main67837-0K140iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

67838BSEAL, FRONT DOOR VENT, LH

main67838-0K010iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..IDN,MA,TH,VN;GUN143..(28,28E,28V,N)..PHL202009

main67838-0K020iGUN142..5F..IND202011

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K090iTGN140..VN201511-202009

main67861-0K110iGUN14#..IND201604-202001

main67861-0K300iGUN142,TGN140..MA202101

PLANT ASSB

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K090iTGN140..5F..MA201511-201905

main67862-0K110iGUN14#..IND201604-202001

main67862-0K300iGUN142,TGN140..MA202101

PLANT ASSB

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×17iGUN142..TH201511-201707

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K140iTGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL)201511-202008

main68101-0K160iGUN142..TH201511-201707

main68101-0K170iGUN142,TGN141..(24V,24Z,27V,27Z)..IND..(DCRL,HTWC)201604-202010

main68101-0K350iGUN142,TGN141..(24G,27G,G,N)..IND..(DCRL,HTWC)201604-202010

main68101-0K360iGUN142,TGN140..(20V,24G)..MA202101

main68101-0K370iTGN140..6FC..20E..MA201611-202012

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K140iTGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL)201511-202008

main68102-0K150iGUN142..5F..(24G,G)..IND202011

main68102-0K170iGUN143..28V..(GCC,TH);GUN142,TGN14#..LHD..IDNP..(20G,24V,G,SRV)202009-202304

main68102-0K180iGUN142..5F..24Z202011

main68102-0K350iGUN142,TGN140..(20V,24G)..MA202101

main68102-0K360iTGN140..6FC..20E..MA201611-202012

68141ERUN, FRONT DOOR GLASS, RH

main68141-0K050iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main68141-0K060iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

main68141-0K160iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..IDN,MA,TH,VN;GUN143..(28,28E,28V,N)..PHL202009

68151DRUN, FRONT DOOR GLASS, LH

main68151-0K050iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main68151-0K060iGUN142..5F..IND202011

main68151-0K160iTGN140..MA201912-202012

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K070iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

main68610-0K080iGUN14#..IND201604-202001

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K070iTGN140..5F..MA201511-201905

main68610-0K080iGUN14#..IND201604-202001

75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH

main75955-0K020iTGN140..6FC..MA201511-202012

main75955-0K030iGUN14#..IND201604-202001

75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH

main75956-0K020iGUN142..TH201511-201707

main75956-0K030iGUN142,TGN141..IND..(DCRL,HTWC)201604-202010

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

9033325001

main90333-25001

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

35 parts on this diagram · 4 diagrams in section
