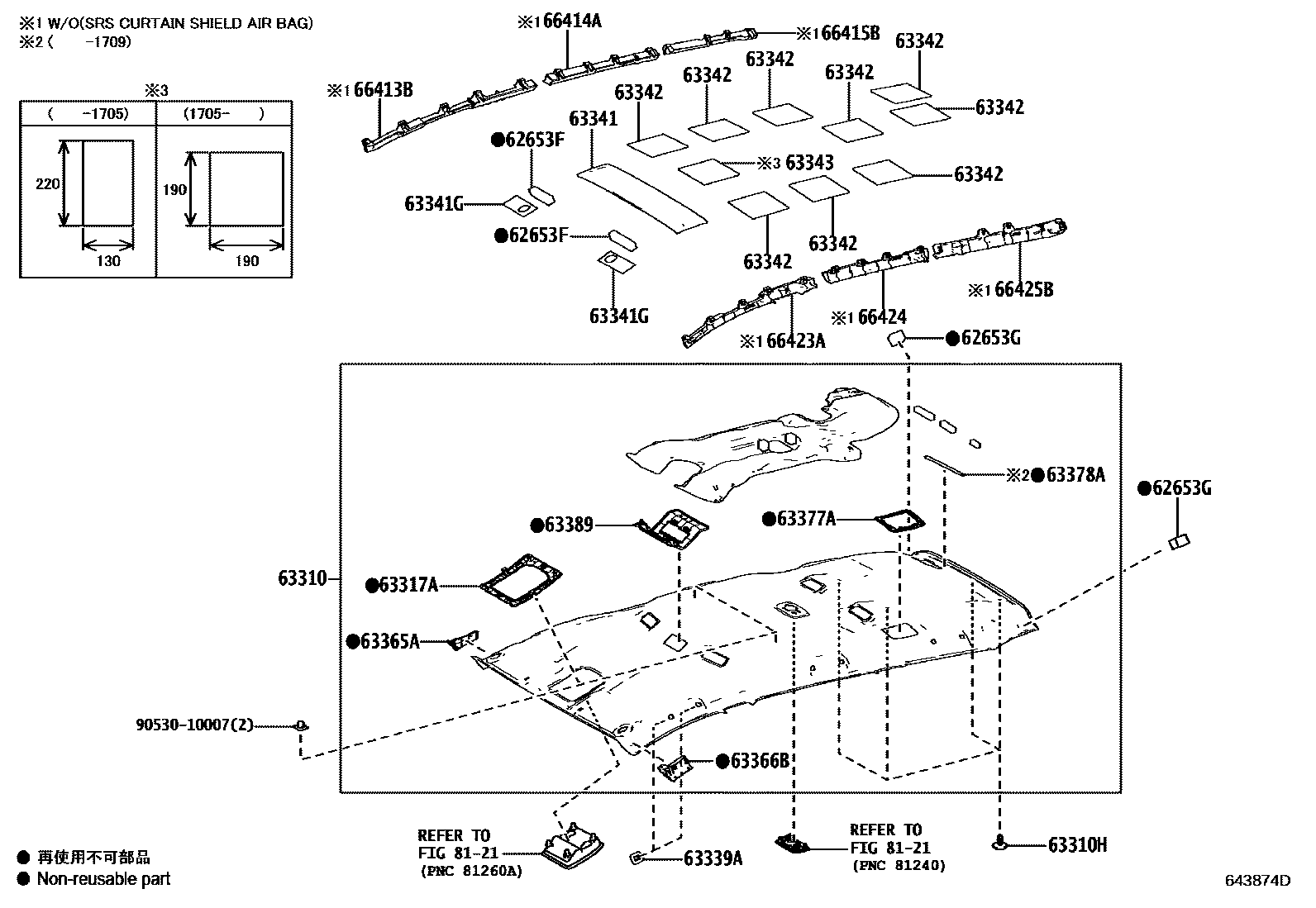

ROOF HEADLINING & SILENCER PAD
62653FPACKING (FOR ROOF HEADLINING)
62653GPACKING,(FOR ROOF HEADLINING)
63310HEADLINING ASSY, ROOF
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#
main63310-0K780-B1supersedes 63310-0K790-B1iGUN142..24G..GCC;TGN141..5F..27G..GCC; GUN142..28V201511-201807
LT.GRAY,TRIM2#,4#; REAR SEAT-TUMBLE SEAT,LT.GRAY,TRIM2#,4#
main63310-0K790-B1iGUN14#,TGN140..IDNP..(20Q,24V,28V)..(IDN,PHL); GUN143,TGN140..IDNP..(20,28)..PHL202009
LT.GRAY,TRIM2#,4#; REAR SEAT-6:4 SPLIT TYPE SEAT&SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM2#
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#,4#
LT. GRAY,TRIM2#,4#
LT. GRAY,TRIM2#,4#; REAR SEAT-6:4 SPLIT TYPE SEAT&SRS AIR BAG-WITH(*DRP),LT. GRAY,TRIM2#,4#
LT. GRAY,TRIM2#
LT. GRAY,TRIM2#,4#
LT. GRAY,TRIM2#,4#
LT. GRAY,TRIM2#
REAR SEAT-TUMBLE SEAT&SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#; SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#
REAR SEAT-TUMBLE SEAT,LT.GRAY,TRIM2#,4#
SRS AIR BAG-WITH(*DRP),LT. GRAY,TRIM2#
REAR SEAT-CAPTAIN SEAT,LT. GRAY,TRIM2#
REAR SEAT-TUMBLE SEAT,LT. GRAY,TRIM2#
REAR AIR CONDITIONER-WITHOUT,LT. GRAY,TRIM2#
main63310-0KM70-B0supersedes 63310-0KM00-B0iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,N)201604-202102
SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#
SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4#
REAR SEAT-TUMBLE SEAT
REAR AIR CONDITIONER-WITHOUT&SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)
REAR SEAT-CAPTAIN SEAT,W/O(CUP HOLDER)&SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD)
REAR AIR CONDITIONER-MANUAL(COOLER ONLY)
SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM2#,4#
63310HCLIP(FOR ROOF HEADLINING)
main90467-T0004-B0×4iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z); TGN141..27G;GUN142..6FC..24G..IND202009-202301
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#
63317ARETAINER, ROOF HEADLINING
63339ACOVER, ROOF HEADLINING SERVICE HOLE
LT.GRAY,TRIM2#
63341PAD, ROOF SILENCER, NO.1
63341GPAD, ROOF SILENCER
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
main63342-0K210iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)202009-202304
63365APLATE, ROOF HEADLINING SET
63366BPLATE, ROOF HEADLINING SET, LH
63377ARETAINER, ROOF HEADLINING SUPPORT, NO.1
63378ARETAINER, ROOF HEADLINING SUPPORT, NO.2
63389RETAINER, ROOF HEADLINING TRIM, CENTER
66413BSPACER, SIDE RAIL, FRONT RH
main66413-0K060iGUN142..GCC;TGN141..5F..27..GCC;TGN140..(20,20E,20G)..(GEN,VN);GUN143,TGN141..5F..(24,27G,27SR,28,28G)..(GCC,GEN,LA)201511-202009
SRS AIR BAG-WITH(*DRP)
66414ASPACER, SIDE RAIL, REAR RH
main66414-0K050iTGN140..20Q; TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA)201511-202008
SEAT COVER MATERIAL-LEATHER
SRS AIR BAG-WITH(*DRP)
66415BSPACER, SIDE RAIL, REAR NO.2 RH
main66415-0K100iTGN140..20Q; TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA)201511-202008
SEAT COVER MATERIAL-LEATHER
SRS AIR BAG-WITH(*DRP)
66423ASPACER, SIDE RAIL, FRONT LH
main66423-0K060iTGN140..20Q; TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA)201511-202008
SEAT COVER MATERIAL-LEATHER
SRS AIR BAG-WITH(*DRP)
66424SPACER, SIDE RAIL, REAR LH
main66424-0K210iTGN140..20Q; TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA)201511-202008
SEAT COVER MATERIAL-LEATHER
SRS AIR BAG-WITH(*DRP)
66425BSPACER, SIDE RAIL, REAR NO.2 LH
main66425-0K260iTGN140..20Q; TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA)201511-202008
SEAT COVER MATERIAL-LEATHER
SRS AIR BAG-WITH(*DRP)
8121INTERIOR LAMP
9053010007
main90530-10007
23 parts on this diagram · 4 diagrams in section
