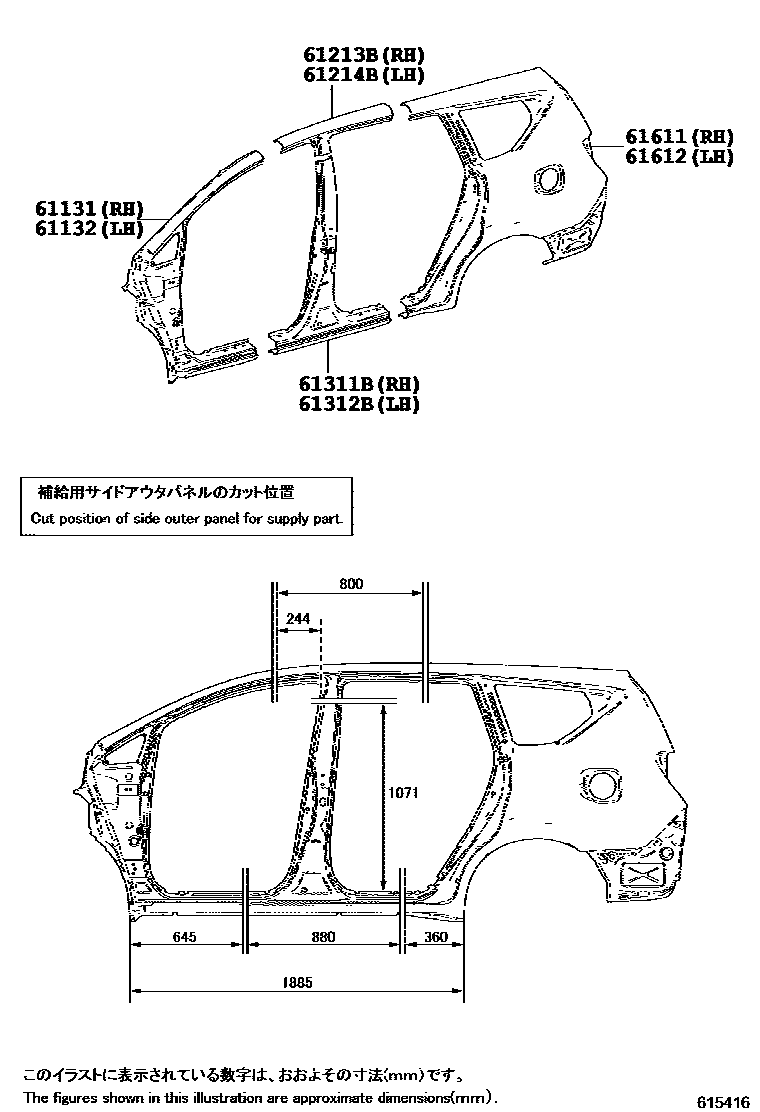

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0K140iGUN14#..IND201511-202304

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0K140iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0K050iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202304

main61213-0K070iTGN141..IND;GUN142..(6F,6FC)..IND201604-202301

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-0K050iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

main61214-0K070iGUN14#..IND201604-202301

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0K010iTGN140..5F..MA201511-202304

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0K010iGUN142..TH201511-202304

61611PANEL, QUARTER, RH

main61601-0K040iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-202304

main61601-0K050iGUN142..5F..IND201604-202301

61612PANEL, QUARTER, LH

main61602-0K030iTGN140..VN201511-202304

main61602-0K040iGUN14#..IND201604-202301

8 parts on this diagram · 3 diagrams in section
