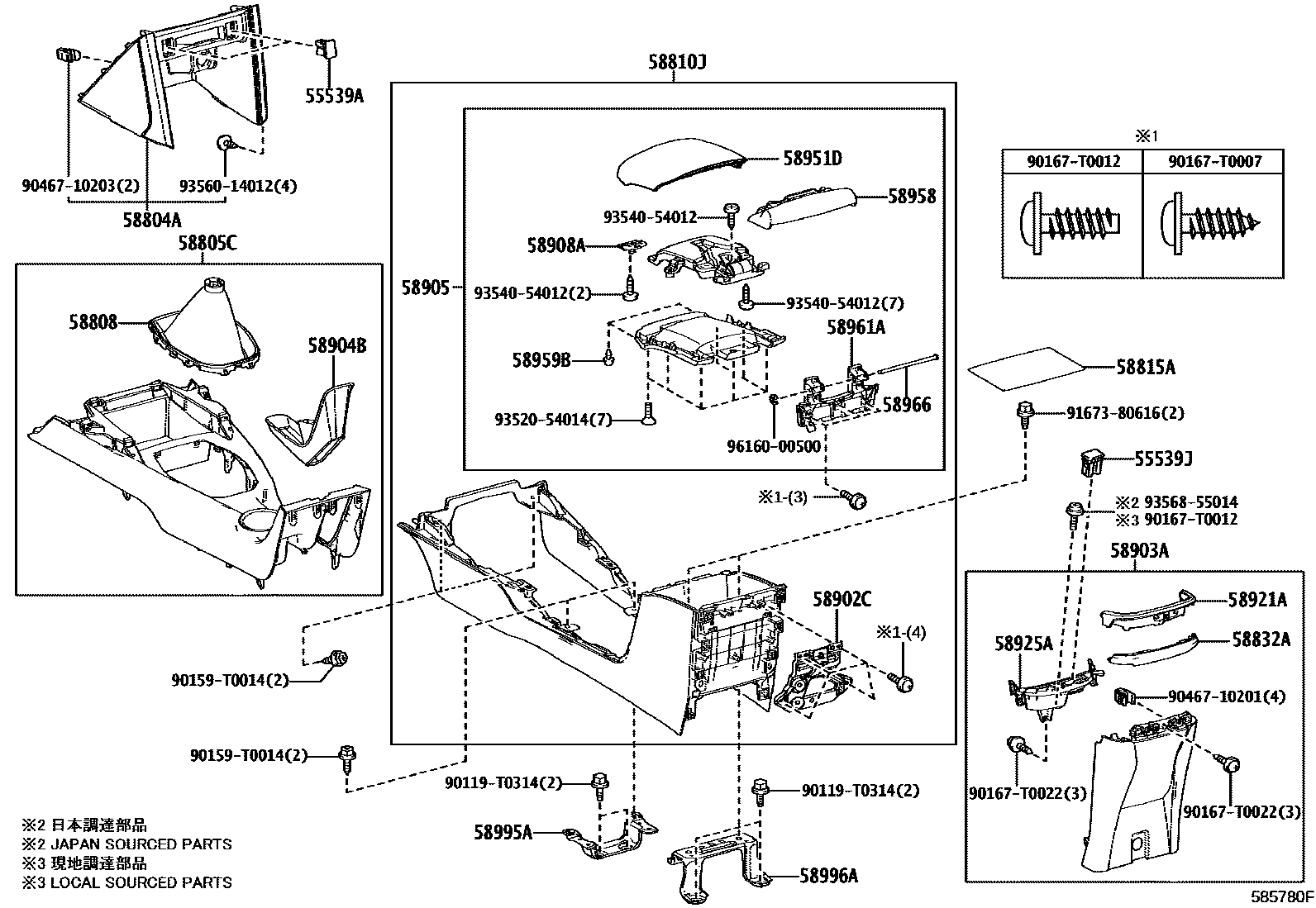

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

55539ACOVER, SPARE SWITCH HOLE

main55539-KK030-C0iTGN140..PHLP..5F..20E;GUN143,TGN140..PHLP..(20G,28G)201511-202304

BLACK,TRIM2#,4#

main55539-KK030-C0iGUN143..PHLP..(28E,N)201604-202301

BLACK,TRIM2#

main55539-KK030-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

55539JCOVER, SPARE SWITCH HOLE

main55524-02020-C1iGUN143,TGN140..TH;GUN14#,TGN141..(20G,24V,27,28,G,SRV)..(GCC,GEN,LA)202009-202304

BLACK,TRIM2#,4#

main55524-02020-C1iGUN142..G;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL)202009

BLACK,TRIM2#

main55539-KK030-C0iGUN143..PHLP..28V201511-202102

BLACK,TRIM2#,4#

main55539-KK030-C0iGUN142,TGN140..(20Q,20V,24Q,24V)..IDN201511-201708

AUDIO-AM/FM & CD & *BT & 6SPEAKER,BLACK,TRIM2#,4#

main55539-KK030-C0iTGN140..20V..VN201607-201711

BLACK,TRIM4#

main55539-KK030-C0iGUN14#,TGN141..(24G,27G,28G)..IND201604-202102

BLACK,TRIM2#

main55539-KK030-C0iGUN143..6FC..GCC;TGN141..5F..27..LA;GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G);GUN143..IDNP..(28G,28V)..(PHL,TH);GUN142,TGN14#..LHD..IDNP..6FC..(20G,24V,27201511-202008

AUDIO-AM/FM & CD & *BT & 4SPEAKER,BLACK,TRIM2#,4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0K110-C0iGUN142..TH201511-202304

BLACK,TRIM2#,4#

main58804-0K110-C0iGUN143..PHLP..(28E,N)201604-202102

BLACK,TRIM2#

main58804-0K110-C0iTGN141..SRV202009-202304

MLM INDIA SPEC EURO5,BLACK,TRIM2#,4#

main58804-0K110-C0iTGN141..SRV202009-202304

CENTRAL AND SOUTH AMERICA SPEC,BLACK,TRIM2#,4#

main58804-0K110-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

main58804-0K120-C0iGUN142..5F..(24G,G)..IND201604-202301

BLACK,TRIM2#

main58804-0K120-C0iGUN14#..(5F,6FC)..(24G,24V,28G,G,N)..IND201604-202301

BLACK,TRIM2#,4#

main58804-0K130-C0iTGN141..LA202009-202304

BLACK,TRIM2#,4#

main58804-KK350iGUN142..6F201709-201912

main58804-KK350-C0iGUN142..24202011-202301

BLACK,TRIM2#,4#

main58804-KK350-C0iGUN142..6F..DCRL201912-202010

BLACK,TRIM2#

main58804-KK460-C0iGUN143,TGN140..PHLP..(20,28,28V)202102

BLACK,TRIM2#,4#

main58804-KK460-C0iGUN143,TGN140..PHLP..(20E,28E,N)202102

BLACK,TRIM2#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0K010-C0iGUN143,TGN140..PHLP..5F..(28E,N)202102

BLACK,TRIM2#

main58805-0K020-C0iGUN143,TGN140..PHLP..6FC..(20E,28E)202102

BLACK,TRIM2#,4#

main58805-0K020-C0iGUN143,TGN140..PHLP..(20,28V)202102

BLACK,TRIM2#

main58805-0K030-C0iGUN143..PHLP..28202102

BLACK,TRIM2#,4#

main58805-KK070-C0iGUN142,TGN140..RHD..(IDNP,MAP)..5F..(20E,20G,20V,24G,24V)201511-201708

BLACK,TRIM2#,4#

main58805-KK071-C0iTGN140..5F..MA201708-201905

BLACK,TRIM2#

main58805-KK071-C0iGUN142,TGN140..RHD..IDNP..5F..(20E,20G,20V,24G,24V)201708-202008

BLACK,TRIM2#,4#

main58805-KK080-C0iGUN142,TGN140..GEN,SA201511-202012

BLACK,TRIM2#,4#

main58805-KK080-C0iTGN140..20V..MA201709-202012

BLACK,TRIM2#

main58805-KK110-C0iGUN143..5F..(28E,N);TGN140..IDNP..5F..PHL201604-201708

BLACK,TRIM2#

main58805-KK110-C0iTGN140..(PHLP,VNP)..5F;GUN142,TGN141..5F..(24,27,27SR)201511-201708

BLACK,TRIM2#,4#

main58805-KK111-C0iGUN143,TGN141..5F..(24,27,28)..(GCC,GEN)201708-202009

BLACK,TRIM2#,4#

main58805-KK111-C0iGUN143,TGN140..PHLP..5F..(20E,28E,N)201708-202102

BLACK,TRIM2#

main58805-KK120-C0iTGN140..6FC..VN201511-202102

BLACK,TRIM2#,4#

main58805-KK120-C0iGUN143..PHLP..6FC..28E201604-202102

BLACK,TRIM2#

main58805-KK140-C0iGUN14#,TGN141..LHD..5F..(24G,27G,28G)201511-201708

BLACK,TRIM2#,4#

main58805-KK141-C0iGUN143..5F..28G..GCC201708-201904

BLACK,TRIM2#,4#

main58805-KK141-C0iGUN143..IDNP..5F..28G..PHL201708-202102

BLACK,TRIM2#

main58805-KK150-C0iGUN142,TGN140..5F..(20Q,24Q)201511-201708

BLACK,TRIM2#,4#

main58805-KK151-C0iGUN142,TGN140..5F..(20Q,24Q)201708-202008

BLACK,TRIM2#,4#

main58805-KK170-C0iGUN142,TGN141..5F..(24G,27G,G,N)..IND201604-201709

BLACK,TRIM2#

sub58805-KK300

main58805-KK171-C0iGUN142..(24G,G,N)..IND201709-202010

BLACK,TRIM2#

sub58805-KK300

main58805-KK180-C0iGUN143,TGN141..27Z,28Z201604-201704

BLACK,TRIM2#,4#

main58805-KK180-C0iGUN143..28G..IND201604-202010

BLACK,TRIM2#

main58805-KK180-C0iGUN143..28Z201704-202010

BLACK,TRIM20,4#

main58805-KK180-C1iGUN142,TGN141..6FC..(24Z,27Z)201704-202010

BLACK/RED NO.55,TRIM20

main58805-KK190-C0iGUN142,TGN141..(24V,27V)..IND201604-201704

BLACK,TRIM2#

sub58805-KK300

main58805-KK190-C0iGUN142,TGN141..(24V,27V)..IND201704-201709

BLACK,TRIM20

sub58805-KK300

main58805-KK190-C1iGUN142,TGN141..(24V,27V)..IND201704-201709

BLACK/RED NO.55,TRIM20

sub58805-KK300

main58805-KK191-C0iGUN142,TGN141..(24V,27V)..IND..(DCRL,HTWC)201709-202010

BLACK,TRIM20

sub58805-KK300

main58805-KK191-C1iGUN142..24V..IND201709-202010

BLACK/RED NO.55,TRIM20

sub58805-KK300

main58805-KK200-C0iGUN142..24Z201604-201709

BLACK,TRIM2#,4#

sub58805-KK300

main58805-KK201-C0iGUN142..5F..24Z..DCRL201709-202010

BLACK,TRIM2#,4#

sub58805-KK300

main58805-KK210-C0iGUN142,TGN140..5F..(20G,24G)..IDN202009

BLACK,TRIM2#,4#

main58805-KK220-C0iTGN140..TH;GUN14#..RHD..(20G,28V)202009-202304

BLACK,TRIM2#,4#

main58805-KK220-C0iGUN142,TGN140..MA202101

BLACK,TRIM2#

main58805-KK230-C0iGUN143,TGN140..IDNP..5F..(28E,N)202009

BLACK,TRIM2#

main58805-KK230-C0iTGN140..20E..VN202009-202304

BLACK,TRIM2#,4#

main58805-KK240-C0iGUN143,TGN140..IDNP..6FC..(20E,28E)202009

BLACK,TRIM2#

main58805-KK240-C0iGUN14#,TGN14#..LHD..6FC..(GCC,GEN,LA)202009-202304

BLACK,TRIM2#,4#

main58805-KK240-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

main58805-KK250-C0iGUN143..IDNP..28..PHL202009

BLACK,TRIM2#,4#

main58805-KK260-C0iGUN142,TGN140..5F..(20Q,24V)..IDN202009

BLACK,TRIM2#,4#

main58805-KK270-C0iGUN142..5F..(24G,G)..IND202011-202301

BLACK,TRIM2#

main58805-KK280-C0iGUN142,TGN141..6FC..(24G,27G)..IND202011-202301

BLACK,TRIM2#

main58805-KK280-C0iGUN142,TGN141..6FC..(24Z,27Z)202011-202301

BLACK,TRIM2#,4#

main58805-KK290-C0iGUN142..24202011-202301

BLACK,TRIM2#,4#

main58805-KK300-C0iGUN142..5F..24Z202011

BLACK,TRIM2#,4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-KK010-C0iGUN142,TGN141..5F..(24G,27G,G,N)..IND201604-201709

BLACK,TRIM2#

sub58808-KK100

main58808-KK010-C0iTGN140..PHLP..5F;GUN142..5F..24G..IDN;GUN142,TGN14#..5F..(20E,20G,20V,24,24V,27,27SR)..(GCC,IDN,LA,MA,TH,VN)201511-201708

BLACK,TRIM2#,4#

sub58808-KK100

main58808-KK011-C0iGUN143,TGN140..PHLP..5F..(28E,N)201708-202102

BLACK,TRIM2#

sub58808-KK100

main58808-KK011-C0iGUN142,TGN14#..5F..(20E,20G,20V,24G,24V,27)..(IDN,LA,TH)201708-202009

BLACK,TRIM2#,4#

sub58808-KK100

main58808-KK080-C0iGUN14#,TGN141..LHD..5F..(24G,27G,28G)201511-201708

BLACK,TRIM2#,4#

sub58808-KK110

main58808-KK080-C0iGUN142,TGN141..(24V,27V)..IND201704-201709

BLACK,TRIM20

sub58808-KK110

main58808-KK080-C0iGUN142,TGN141..(24V,27V)..IND201604-201704

BLACK,TRIM2#

sub58808-KK110

main58808-KK080-C1iGUN142,TGN141..(24V,27V)..IND201704-201709

BLACK/RED NO.55,TRIM20

sub58808-KK110

main58808-KK081-C0iGUN142,TGN141..(24V,27V)..IND..(DCRL,HTWC)201709-202010

BLACK,TRIM20

sub58808-KK110

main58808-KK081-C0iGUN142,TGN141..5F..(24G,27G)..GCC201708-201904

BLACK,TRIM2#,4#

sub58808-KK110

main58808-KK081-C0iGUN143..IDNP..5F..28G..PHL201708-202008

BLACK,TRIM2#

sub58808-KK110

main58808-KK081-C1iGUN142..24V..IND201709-202010

BLACK/RED NO.55,TRIM20

sub58808-KK110

main58808-KK090-C0iGUN142..24Z201511-201709

BLACK,TRIM2#,4#

sub58808-KK120

main58808-KK091-C0iGUN142..24Z201708-202010

BLACK,TRIM2#,4#

sub58808-KK120

main58808-KK100-C0iTGN141..5F..LA202009-202304

BLACK,TRIM2#,4#

main58808-KK100-C0iTGN141..5F..27G202009-202301

BLACK,TRIM2#

main58808-KK110-C0iGUN142..24202009-202301

BLACK,TRIM2#,4#

main58808-KK120-C0iGUN142..5F..24V..IDN;GUN142,TGN140..5F..(20Q,24Z)202009

BLACK,TRIM2#,4#

58810JBOX ASSY, CONSOLE

main58810-KK010-C0iGUN143,TGN140..5F..(28E,N)201604-202102

BLACK,TRIM2#

main58810-KK010-C0iGUN143,TGN140..5F..(28E,N)201511-202304

BLACK,TRIM2#,4#

main58810-KK020-C0iTGN140..TH;GUN142..20G201511-202304

BLACK,TRIM2#,4#

main58810-KK020-C0iTGN140..20E..MA202101

BLACK,TRIM2#

main58810-KK040-C0iTGN140..PHLP..6FC..20E201511-202304

BLACK,TRIM2#,4#

main58810-KK040-C0iGUN143,TGN140..6FC..(20E,28E)..PHL201604-202102

BLACK,TRIM2#

main58810-KK050-C0iGUN142..5F..24G..GCC;GUN142,TGN14#..IDNP..5F..(20Q,20V,24Q,24V,27G)201511-201611

BLACK,TRIM2#,4#

sub58810-KK050

main58810-KK050-C0iGUN143..5F..28G201604-201611

BLACK,TRIM4#

sub58810-KK050

main58810-KK050-C1iGUN143..PHLP..5F..28G201611-202008

BLACK/BEIGE,TRIM2#,4#

sub58810-KK050

main58810-KK060-C0iGUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..6FC..(20Q,20V,24,24Q,24V,28G,28V)201511-201611

BLACK,TRIM2#,4#

sub58810-KK060

main58810-KK060-C1iGUN142..TH201611-202304

BLACK/BEIGE,TRIM2#,4#

sub58810-KK060

main58810-KK060-C1iGUN142,TGN140..(20V,24G)..MA201611-202012

BLACK/BEIGE,TRIM2#

sub58810-KK060

main58810-KK080-C0iTGN140..IDNP..20G..PHL;GUN143..6FC..(28G,28V)..PHL201604-201611

BLACK,TRIM4#

sub58810-KK080

main58810-KK080-C0iTGN140..(PHLP,VNP)..(20G,20V);GUN142,TGN141..LHD..6FC..(24G,27G,27SRV)201511-201611

BLACK,TRIM2#,4#

sub58810-KK080

main58810-KK080-C1iGUN143,TGN140..PHLP..6FC..(20G,28G)201611-202304

BLACK/BEIGE,TRIM2#,4#

sub58810-KK080

main58810-KK080-C1iTGN140..20G..VN201611-202009

BLACK/BEIGE,TRIM4#

sub58810-KK080

main58810-KK110-C0iGUN142,TGN141..MTM..(24G,24V,27G,27V,G,N)..IND..(DCRL,HTWC)201604-202301

BLACK,TRIM2#

main58810-KK110-C0iGUN142,TGN141..MTM..(24G,24V,27G,27V,G,N)..IND..(DCRL,HTWC)201604-202301

BLACK,TRIM2#,4#

main58810-KK150-C0iGUN142,TGN140..5F..(20Q,24V)..IDN201708-202008

BLACK/BEIGE NO.841,TRIM2#,4#

main58810-KK160-C0iGUN142,TGN140..6FC..(20Q,24V)..IDN201708-202008

BLACK/BEIGE NO.841,TRIM2#,4#

main58810-KK180-C0iGUN142,TGN141..6FC..(24G,27G)..IND201604-202301

BLACK,TRIM2#,4#

main58810-KK180-C0iGUN142,TGN141..6FC..(24G,27G)..IND201604-202301

BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-KK010iGUN142..TH201511-202304

58832AGARNISH, CONSOLE UPPER PANEL, REAR

main58832-KK090-C0iGUN142..TH;TGN140..20Q;GUN142..5F..24V..IDN201511-202304

BLACK,TRIM2#,4#

main58832-KK090-C0iGUN14#..(24G,24V,28G,G,N)..IND201604-202301

BLACK,TRIM2#

main58832-KK090-C0iTGN140..GEN,TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA)202009-202304

DOOR INNER GARNISH-FRONT:PAINT REAR:PAINT,BLACK,TRIM2#,4#

main58832-KK090-C0iTGN140..GEN,TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA)202009-202304

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

main58832-KK100-C1iGUN142,TGN141..6FC..(24Z,27Z)201704-202010

BLACK,TRIM20

main58832-KK100-D0iGUN142..28V201511-202304

RED,TRIM2#

main58832-KK100-D0iGUN142..24V..TH201704-202010

RED,TRIM20

main58832-KK100-D0iGUN142,TGN140..20Q,24Q201708-202008

OCEANIA GENERAL SPEC,RED,TRIM20

main58832-KK100-E0iGUN143..PHLP..28V201511-202304

ORANGE,TRIM4#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-KK010iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-202304

main58902-KK020iGUN142..5F..IND201604-202301

main58902-KK030iGUN142,TGN140..(20Q,20V,24Q,24V)..IDN201708-202008

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-KK070-C2iTGN141..5F..27..LA;GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G);GUN143,TGN140..IDNP..(20G,28G)..(PHL,TH);GUN143,TGN141..6FC..(27,27G,27SRV,28,28G)..(GCC,LA)201511-202102

BLACK,TRIM2#,4#

main58903-KK070-C2iGUN143,TGN140..IDNP..(20E,28E,N)..PHL201604-202102

BLACK,TRIM2#

main58903-KK080-C0iGUN142,TGN140..20Q,24Q201704-202010

BLACK,TRIM20

main58903-KK080-C0iTGN140..20V..MA201511-202102

BLACK,TRIM2#

main58903-KK080-C1iGUN142..24V..TH201511-202101

BLACK,TRIM4#

main58903-KK090-C0iGUN142,TGN140..(20V,24V)..IDN201708-202008

BLACK,TRIM2#,4#

main58903-KK100-C0iGUN142,TGN140..20Q,24Q201708-202008

BLACK/RED,TRIM2#

main58903-KK100-C1iGUN142,TGN140..20Q,24Q201708-202008

BLACK/ORANGE,TRIM4#

main58903-KK170-C2iGUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN142..5F..(24G,G)..IND;TGN140..(IDNP,MAP)..(20E,N)..(MA,PHL)202009-202304

DOOR INNER GARNISH-FRONT:PAINT REAR:PAINT,BLACK,TRIM2#,4#

main58903-KK170-C2iTGN141..27G;GUN142..6FC..24G..IND202009-202301

BLACK,TRIM2#

main58903-KK170-C2iTGN140..GEN,TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA)202009-202304

BLACK,TRIM2#,4#

main58903-KK170-C2iTGN140..GEN,TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA)202009-202304

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

main58903-KK180-C0iGUN142,TGN141..(6F,6FC)..(24,24Z,27Z)202009-202304

BLACK/RED,TRIM2#

main58903-KK180-C1iGUN142..5F..24Z;GUN142,TGN141..TH,VN;GUN143,TGN140..(20V,28V)..(PHL,VN)202009-202304

BLACK/ORANGE,TRIM4#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-KK010-C1iGUN142..TH201511-202012

BLACK,TRIM2#,4#

main58904-KK010-C1iTGN140..20V..MA201604-202012

BLACK,TRIM2#

main58904-KK010-C1iGUN143..28Z201704-202010

BLACK,TRIM20,4#

main58904-KK010-C1iGUN143..28Z201704-202010

BLACK,TRIM20

main58904-KK010-C2iGUN142..(6F,6FC)..(24V,24Z)..IND..DCRL;GUN142,TGN141..(5F,6FC)..(24V,27V,27Z)..IND..(DCRL,HTWC)201704-202010

BLACK/RED NO.55,TRIM20

main58904-KK050-C1iGUN143..PHLP..5F..28G201604-202102

BLACK,TRIM2#

main58904-KK050-C1iGUN143..5F..28G..PHL201511-202102

BLACK,TRIM2#,4#

main58904-KK100-C0iTGN141..27G;GUN142..6FC..24G..IND202011-202301

BLACK,TRIM2#

main58904-KK100-C0iTGN140..TH;GUN14#..RHD..(20G,28V)202009-202304

BLACK,TRIM2#,4#

main58904-KK110-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

main58904-KK110-C0iGUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL202009-202304

BLACK,TRIM2#,4#

main58904-KK110-C0iGUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..IDNP..(20E,N)..PHL202009

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-KK050-C0iTGN140..20E..VN;GUN142,TGN140..(20G,24G)..IDN201604-202301

BLACK,TRIM2#

main58905-KK050-C0iTGN140..5F..VN201511-202304

BLACK,TRIM2#,4#

main58905-KK060-C0iGUN14#,TGN141..24Z,27Z,28Z201511-201704

BLACK,TRIM2#,4#

sub58905-KK060

main58905-KK060-C0iGUN142,TGN141..(24V,27V)..IND201604-201704

BLACK,TRIM2#

sub58905-KK060

main58905-KK060-C0iGUN143..(28G,28V)..PHL;TGN140..IDNP..20G..PHL201604-201611

BLACK,TRIM4#

sub58905-KK060

main58905-KK060-C1iGUN14#..(24V,28Z)..IND201704-202010

BLACK/RED,TRIM20

sub58905-KK060

main58905-KK060-C2iGUN142,TGN141..6FC..(24Z,27Z)201704-202010

BLACK/BEIGE,TRIM20

sub58905-KK060

main58905-KK060-C2iGUN142,TGN141..6FC..(24Z,27Z)201704-202010

BLACK/BEIGE,TRIM20,4#

sub58905-KK060

main58905-KK060-C2iTGN140..(20G,20V)..MA201611-202012

BLACK/BEIGE,TRIM2#

sub58905-KK060

main58905-KK060-C2iGUN143..PHLP..28V201611-202304

BLACK/BEIGE,TRIM2#,4#

sub58905-KK060

main58905-KK060-C2iTGN14#..6FC..VN201611-202009

BLACK/BEIGE,TRIM4#

sub58905-KK060

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iGUN142..TH201511-202304

58921APANEL, REAR CONSOLE, UPPER

main58921-KK040-C0iTGN140..GEN,TH;GUN14#,TGN141..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202304

BLACK,TRIM2#,4#

main58921-KK040-C0iGUN14#..(24G,24V,28G,G,N)..IND201604-202301

BLACK,TRIM2#

main58921-KK040-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

58925APOCKET, CONSOLE BOX, REAR

main58925-KK020-C0iGUN142..TH201511-202102

BLACK,TRIM2#,4#

main58925-KK020-C0iGUN14#..(24G,24V,28G,G,N)..IND201604-202102

BLACK,TRIM2#

main58925-KK030-C0iGUN142,TGN140..(20Q,24V)..IDN201708-202008

BLACK,TRIM2#,4#

main58925-KK050-C0iTGN141..27G;GUN142..6FC..24G..IND202009-202304

BLACK,TRIM2#,4#

main58925-KK050-C0iTGN141..27G;GUN142..6FC..24G..IND202009-202301

BLACK,TRIM2#

main58925-KK050-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-KK050-C0iTGN140..(PHLP,VNP)..20G;GUN142,TGN140..(20Q,20V,24,24Q,24V)..(IDN,SA,VN);GUN14#,TGN141..(24G,24V,27G,27SRV,28G,28V)..(GCC,LA,TH)201511-201704

BLACK,TRIM2#,4#

sub58951-KK050

main58951-KK050-C0iGUN143..(28G,28V)..PHL;TGN140..IDNP..20G..PHL201604-201611

BLACK,TRIM4#

sub58951-KK050

main58951-KK050-C0iGUN142,TGN141..(24V,27V)..IND201604-201704

BLACK,TRIM2#

sub58951-KK050

main58951-KK050-C1iGUN14#..(24V,28Z)..IND201704-202010

BLACK/RED,TRIM20

sub58951-KK050

main58951-KK050-C2iGUN142,TGN140..(20V,24G)..MA201611-202012

BLACK/BEIGE,TRIM2#

sub58951-KK050

main58951-KK050-C2iGUN142..TH201611-202304

BLACK/BEIGE,TRIM2#,4#

sub58951-KK050

main58951-KK050-C2iTGN140..20V..VN201611-202009

BLACK/BEIGE,TRIM4#

sub58951-KK050

main58951-KK050-C2iGUN142,TGN141..(24V,27V)..IND..(DCRL,HTWC)201704-202010

BLACK/BEIGE,TRIM20

sub58951-KK050

main58951-KK050-C2iGUN142,TGN141..(24V,27V)..IND..(DCRL,HTWC)201704-202010

BLACK/BEIGE,TRIM20,4#

sub58951-KK050

main58951-KK060-C0iGUN14#..(24G,28G,G,N)..IND201604-202301

BLACK,TRIM2#

main58951-KK060-C0iTGN140..5F..MA201511-202304

BLACK,TRIM2#,4#

58958COVER, CONSOLE COMPARTMENT DOOR MOULDING

main58958-KK030-C0iTGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN142..5F..(24G,G)..IND;GUN14#..(24G,28E,N)..(MA,PHL);TGN140..(IDNP,MAP)..(20E,20V,N)..(MA,PHL)201511-202304

BLACK,TRIM2#,4#

main58958-KK030-C0iGUN14#..(24G,24V,28G,G,N)..IND201604-202301

BLACK,TRIM2#

main58958-KK030-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iGUN142..TH201511-202304

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-KK020-C0iGUN142..TH201511-202304

BLACK,TRIM2#,4#

main58961-KK020-C0iTGN140..5F..MA201604-202301

BLACK,TRIM2#

main58961-KK020-C0iTGN14#..6FC..VN202010

BLACK,TRIM4#

58966SHAFT, BOX DOOR HINGE

main58966-KK010iGUN142..TH201511-202304

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-KK020iGUN142,TGN141..LHD..5F..(24,24G,27G,27SR)201511-202304

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-KK020iGUN142..TH201511-202304

90119T0314

main90119-T0314

90159T0014

main90159-T0014

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90167T0022

main90167-T0022

9046710201

main90467-10201

9046710203

main90467-10203

9167380616

main91673-80616

9352054014

main93520-54014

9354054012

main93540-54012

9356014012

main93560-14012

9356855014

main93568-55014

9616000500

main96160-00500

35 parts on this diagram · 6 diagrams in section
