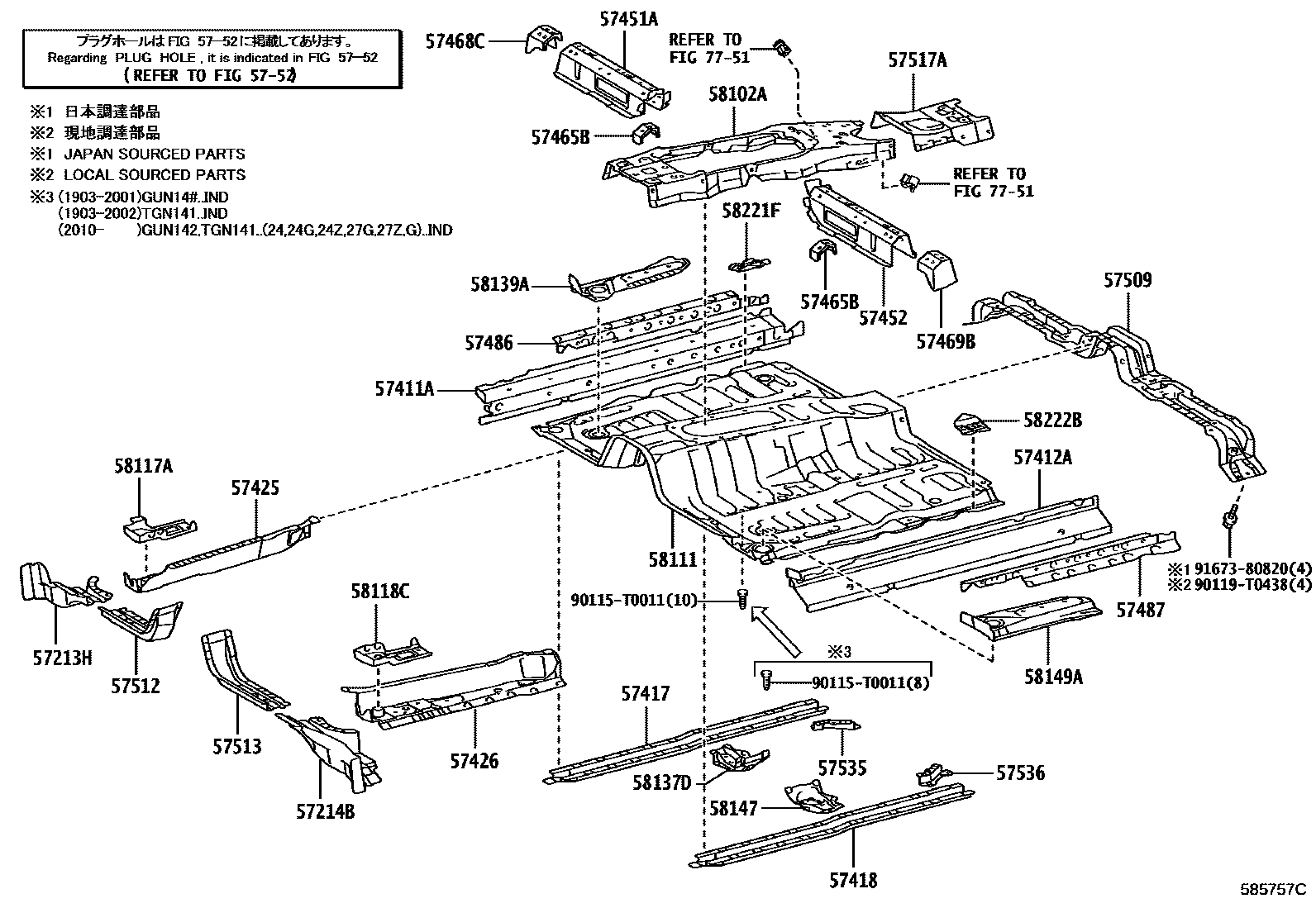

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1SHIFT LEVER BOOT

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-KK010iGUN14#..IND201511-202001

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-KK010iGUN142..TH201511-201707

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-KK020iGUN142..TH201511-201707

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-KK020iGUN142..TH201511-201707

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010iGUN142,TGN141..IND..(DCRL,HTWC)201511-202010

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-0K010iGUN142..TH201511-201707

main57418-0K011iGUN14#,TGN14#..IDNP202003-202008

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-KK010iGUN142..TH201511-201707

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-KK010iGUN142..TH201511-201707

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-KK010iGUN142..TH201511-201707

main57451-KK020iGUN142..5F..IND202011

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-KK010iGUN14#,TGN141..IND201511-201808

main57452-KK030iGUN14#..IND201808-202001

main57452-KK050iGUN143..28V..GCC202108-202304

57465BBRACKET, FRONT SEAT, INNER

main57465-KK010×2iGUN142..5F..24V..IDN;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142..5F..(24G,24Z,G);TGN140..IDNP..(IDN,PHL);TGN140..(20E,20V)..(MA,VN);GUN143..(28,28E,28V,N)..PHL;GUN142,TGN141..6FC..(IDN,MA,TH,VN)202009

57468CBRACKET, FRONT SEAT, OUTSIDE, RH

main57468-KK010iGUN142..TH201511-201707

main57468-KK020iGUN14#..IND201804-202001

57469BBRACKET, FRONT SEAT, OUTSIDE LH

main57469-KK010iTGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN142,TGN14#..(20E,20V,24G,27V)..(MA,VN)202009

main57469-KK020iGUN142,TGN141..IND..(DCRL,HTWC)201804-202010

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-KK010iGUN142..TH201511-201707

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-KK010iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-KK010iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main57509-KK030iGUN142..5F..IND202011

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K030iGUN142..TH201511-201707

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010iTGN140..PHLP..6FC..20E;GUN143,TGN140..PHLP..(28E,28V,N)201511-202102

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-KK010iGUN142,TGN141..MTM..IND..(DCRL,HTWC)201511-202010

main57517-KK020iGUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)201511-201904

main57517-KK030iGUN142,TGN140..GEN,SA201511-201807

main57517-KK040iGUN142..6FC..GCC201511-201807

5752HOLE PLUG

→ Go to FIG 57-52

57535BRACE, FRONT FLOOR, RH

main57535-KK010iTGN140..6FC..MA201511-202012

57536BRACE, FRONT FLOOR, LH

main57536-KK010iGUN142..TH201511-201707

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-KK010iGUN142,TGN141..MTM..(24,27G)202009-202301

main58102-KK020iGUN143,TGN140..PHLP..5F..(20E,28G)201511

main58102-KK030iGUN143..IND201511-202001

main58102-KK040iGUN143,TGN14#..6FC..(20,20E,20V,27V,28E,28V)..(PHL,VN)202009

58111PAN, FRONT FLOOR

main58111-KK010iGUN142,TGN140..5F..IDN202009

main58111-KK020iGUN143,TGN14#..IDNP..5F..(20E,27,28E,28G,N)..(LA,PHL)201511-202008

main58111-KK030iGUN142..TH201511-201707

main58111-KK040iGUN143,TGN140..PHLP..6FC..(20G,28G)201511

main58111-KK050iGUN142,TGN141..MTM..IND202011-202203

main58111-KK070iGUN142,TGN141..6FC..IND202002-202010

main58111-KK120iGUN143..PHLP..5F202404

main58111-KK130iGUN143..PHLP..6FC202404

main58111-KK140iGUN142..5F..IND202204

main58111-KK160iGUN142,TGN141..6FC..IND202204-202301

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-KK010iGUN142,TGN141..IND..(DCRL,HTWC)201511-202010

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-KK010iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201511-201807

58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH

main58137-KK010iGUN142..TH201511-201707

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-KK010iGUN142..TH201511-201707

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-KK010iGUN142..TH201511-201707

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-KK010iGUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)201511-202008

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-KK010iGUN142,TGN14#201511-201603

main58221-KK020iGUN142,TGN140..GCC,GEN,SA;TGN141..IDNP..5F..(27G,27SR)201603-201807

58222BREINFORCEMENT, FLOOR PANEL, FRONT LH

main58222-KK010iGUN142,TGN14#201511-201603

main58222-KK020iGUN14#..IND201603-202001

7751FUEL TANK & TUBE

→ Go to FIG 77-51

90115T0011

main90115-T0011

90119T0438

main90119-T0438

9167380820

main91673-80820

36 parts on this diagram · 2 diagrams in section
